Product specifications

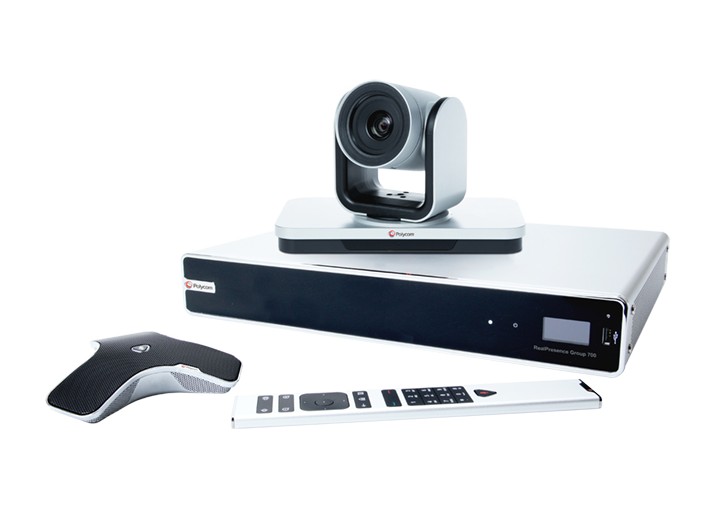

Package includes:

• RealPresence Group 700 codec

• RealPresence Group Microphone Array

• Polycom EagleEye IV camera

• Cable bundle

• Remote control

• Rack (19”) mounting ears

Video standards and protocols

• H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV

• H.239/Polycom People+Content

• H.263 & H.264 Video error concealment Video input

• 2 x HDCI • 3 x HDMI 1.4

• 1 x YPbPr component

• 1 x dual RCA composite

• 1 x VGA

Video out

• 3 x HDMI 1.3

• 3 x VGA

People video resolution

• 1080p, 60 fps from 1740 Kbps

• 1080p, 30 fps from 1024 Kbps

• 720p, 60 fps from 832 Kbps

• 720p, 30 fps from 512 Kbps

• 4SIF/4CIF, 60 fps from 512 Kbps

• 4SIF/4CIF, 30 fps from 128 Kbps

• SIF (352 x 240), CIF (352 x 288) from 64 Kbps

• QCIF (176 x 144) from 64 Kbps

• w288p from 128 Kbps

• w448p from 384 Kbps

• w576p from 512 Kbps

Content video resolution

• Input

     - HD (1920 x 1080i)

     - HD (1920 x 1080p)

     - WSXGA+ (1680 x 1050)

     - UXGA (1600 x 1200)

     - SXGA (1280 x 1024)

     - WXGA (1280 x 768) (1024 x 768)

     - SVGA (800 x 600)

• Output

     - WUXGA (1920 x 1200)

     - HD (1920 x 1080)

     - WSXGA+ (1680 x 1050)

     - SXGA+ (1400 x 1050)

     - SXGA (1280 x 1024)

     - HD (1280 x 720)

     - XGA (1024 x 768)

     - VGA (640 x 480)

• Content Frame Rate

     - 5–60 fps (up to 1080p resolution at 60 fps)

• Content Sharing - Polycom People+Content IP and Polycom Pano app support

     - VbSS content in Microsoft environments

Audio input

• 2 x RealPresence Group microphone array input ports (supporting a total of 4 microphone arrays)

• USB headset support

• 2 x HDCI (camera)

• 3 x HDMI

• 2 x RCA line-in

Audio output

• 1 x HDMI (to in-room audio system)

• 1 x HDMI (to conference recording device)

• USB headset support

• 1 x RCA pair stereo line-out

Other interfaces

• 2 x USB 3.0 (back)

• 1 x USB 2.0 (front)

• 1 x RS-232 DB9

Audio standards and protocols

• 22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)

• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C

• 7 kHz bandwidth with G.722, G.722.1

• 3.4 kHz bandwidth with G.711, G.728, G.729A

Polycom Constant Clarity technology

• Automatic gain control

• Automatic noise suppression

• Keyboard noise reduction

• Polycom NoiseBlock technology

• Polycom Acoustic Fence technology

• Live music mode

• Instant adaptation echo cancellation

• Audio error concealment

• Polycom Siren Lost Packet Recovery technology

• Polycom StereoSurround technology

• Active Lip Synchronization

Other supported standards

• H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460

• BFCP (RFC 4582)

• TIP

Network

• IPv4 and IPv6 support

• 2 x 10/100/1G Ethernet Switch

• Auto-MDIX • H.323 and/or SIP up to 6 Mbps

• Polycom Lost Packet Recovery (LPR) technology

• Reconfigurable MTU size • RS232 with API support

• Web Proxy support—Basic, Digest and NTLM

• Simple Certificate Enrollment Protocol (SCEP)

Interoperability

• Microsoft Lync and Skype for Business certification, including Skype for Business Online

• IBM Sametime support

• Zoom Meetings interoperability

• BlueJeans Cloud Services Interoperability

• Microsoft Office Communications Server integration

• Microsoft ICE support

Security

• US DoD UC APL Certified (see the Polycom US Federal Government Accreditation site for details)

• Media Encryption (H.323, SIP): AES-128, AES-256

• H.235.6 support

• Authenticated access to admin menus, web interface, and telnet API

• FIPS 140-2 Validated Cryptography (Validation Certificate #1747)

• PKI/Certificate Management:

- SSL 3.0, TLS 1.0, 1.1, 1.2

- Self-signed and CA-signed certificate support

- CRL and OCSP-based certificate revocation checking

• Network intrusion detection system

• Local account password policy configuration

• Security profiles

• Web UI/SNMP Whitelists

• Local account and login port lockout

Options

• Polycom Pano

• Polycom RealPresence Touch

• Polycom EagleEye Producer

• Polycom EagleEye Director II

• Polycom SoundStation IP 7000 conference phone integration

• Polycom SoundStructure integration

Software options

• Skype for Business and Lync Integration (including Skype for Business Online

• TIP interoperability

• 1080p license, providing up to 1080p60 for people and content

• Multipoint license for up to 8 sites at 720p30, or 4 sites at 1080p30

Electrical

• Auto sensing power supply

Typical operating voltage/power

• 85VA @ 120V @ 60 Hz

• 85VA @ 230V @ 50/60 Hz

• Typical BTU/h: 280

Environmental specification

• Operating temperature: 0 to 40 °C

• Operating humidity: 15 to 80%

• Non-operating temperature: -40 to 70 °C

• Non-operating humidity (non-condensing): 5 to 95%

• Maximum altitude: 10,000 ft

Physical characteristics

• RealPresence Group 700 base box

     - 17.2" H x 2.6” W x 12.8” D

     - 11.45 lbs
