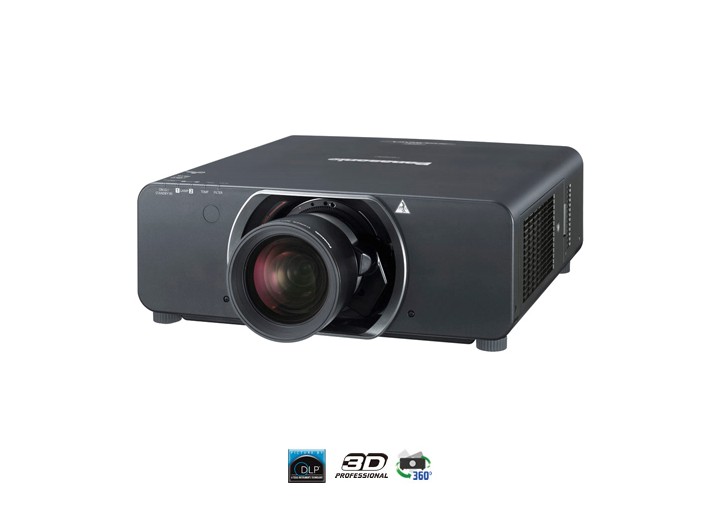

| DLP™ chip | Panel size | 24.4 mm (0.96 in)
diagonal (16:10 aspect ratio) |
|---|
| Display method | DLP™ chip x 3, DLP™ projection system |
|---|
| Pixels | 2,304,000 (1,920 x 1,200) x 3,
total of 6,912,000 pixels |
|---|
| Lamp | 380 W UHM lamps (HIGH mode) x 2 |
|---|
| Brightness*1 | 12,000 lm*3 (dual-lamp) |
|---|
| Contrast ratio*1 | 10,000:1 (full on/off, with DYNAMIC IRIS set to "3") |
|---|
| Screen size (diagonal) | 1.78 -25.4 m (70-1,000 in),
1.78 -15.24 m (70-600 in)
with the ET-D75LE8, 16:10 aspect ratio |
|---|
| Center-to-corner uniformity*2 | 90 % |
|---|
| Screen size | 1.78-15.24 m
(70-600 inches),
1.78-7.62 m
(70-300 inches)
with the ET-D75LE50,
4:3 aspect ratio |
|---|
| Resolution | 1,920 x 1,200 pixels
(Input signals that exceed this resolution will
be converted to 1,920 x 1,200 pixels.) |
|---|
| Optical axis shift | Vertical: ±55 % (±44 % with the ET-D75LE6) from center of screen (powered)
Horizontal: ±20 % (±15 % with the ET-D75LE6) from center of screen (powered) |
|---|
| Scanning frequency | SDI | Dual-link
HD-SDI | SMPTE ST 372 compliant,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p,
[X´Y´Z´ 4:4:4 12-bit] 2,048 x 1,080/24p, 2,048 x 1,080/24sF |
|---|
| 3G-SDI | SMPTE ST 424 compliant,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
[YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, |
|---|
| HD-SDI | SMPTE ST 292 compliant,
[YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i,
1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
|---|
| SD-SDI | SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i |
|---|
| HDMI/DVI-D | 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA*4 (1,920 x 1,200),
compatible with non-interlaced signals only, dot clock: 25-162 MHz |
|---|
| RGB | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz |
|---|
| YPBPR (YCBCR) | fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 56.25 kHz, fV: 50 Hz [1080/50p] | fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080/60p] |
|---|
| Video/Y/C | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|---|
| Terminals | SDI 1 IN | BNC x 1 (3G/HD/SD-SDI) |
|---|
| SDI 2 IN | BNC x 1 (HD/SD-SDI) |
|---|
| 3D SYNC IN/OUT | BNC x 1 (3D timing signal) |
|---|
| 3D SYNC OUT | BNC x 1 (3D timing signal) |
|---|
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
|---|
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) |
|---|
| RGB 1 IN | BNC x 5 (RGB/YPBPR/YCBCR/YC x 1) |
|---|
| RGB 2 IN | D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) |
|---|
| VIDEO IN | BNC x 1 (composite video) |
|---|
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
|---|
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control |
|---|
| REMOTE 1 IN | M3 x 1 for wired remote control |
|---|
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) |
|---|
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
|---|
| LAN | RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™) |
|---|
| Keystone correction range | Vertical: ±40°*6, horizontal: ±15° |
|---|
Keystone correction range with
optional Upgrade Kit ET-UK20 | Vertical ±40° and horizontal ±40° with the ET-D75LE1/LE2/LE10/LE20,
vertical ±45° and horizontal ±40° with the ET-D75LE3/LE4/LE30/LE40,
vertical ±22° and horizontal ±15° with the ET-D75LE5/LE50,
vertical ±28° and horizontal ±15° with the ET-D75LE6 |
|---|
| Installation | Ceiling/floor, front /rear, portrait*7 |
|---|
| Cabinet materials | Molded plastic |
|---|
| Power supply | 120 V, 220-240 V AC, 50/60 Hz |
|---|
| Power consumption | 120 V AC | 1,000 W (1,030 VA) |
|---|
(0.2 W with standby mode set to eco.*1
6 W with standby mode set to normal. Both with fan stopped.) | | 220-240 V AC | 970 W (1,020 VA) |
|---|
(0.3 W with standby mode set to eco.*1
9 W with standby mode set to normal. Both with fan stopped.) | | Dissipation BTU | 120 V: 3,413 BTU/hour
(without light output: 3,249 BTU/hour).
220-240 V: 3,311 BTU/hour
(without light output: 3,147 BTU/hour) |
|---|
| Dimensions (W x H x D) | 530 x 200*8 x 548.5 mm (20-7/8 x 7-7/8*8 x 21-19/32 in) (optional lens not included) |
|---|
| Weight | Approximately 24 kg (52.9 lbs) (optional lens not included) |
|---|
| Operating Environment | Operating temperature: 0-45°C (32-113°F)*10,
operating humidity: 10-80 % (no condensation) |
|---|
| Operation noise | 45 dB (dual lamp operation with lamp HIGH mode),
43 dB (dual lamp operation with lamp MIDDLE mode),
37 dB (dual lamp operation with lamp ECO mode) |
|---|
| Applicable software | Logo Transfer Software, Multi Projector Monitoring & Control Software,
Geometry Manager Pro (included in the ET-UK20) |
|---|
| Supplied accessories | Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2) |
|---|
|
