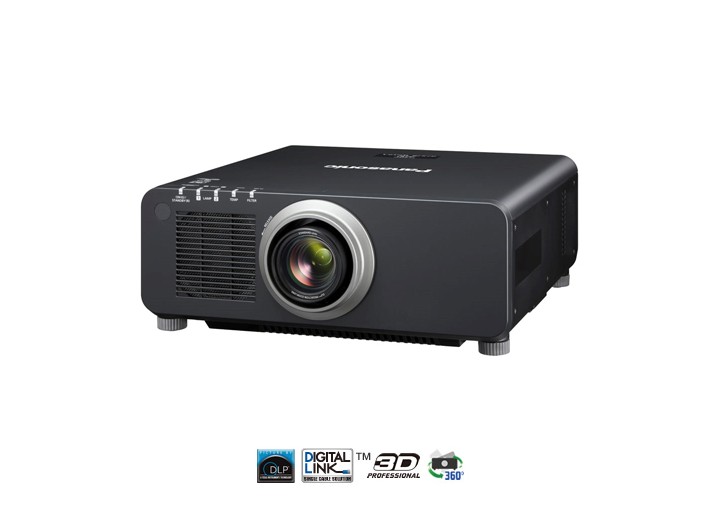

    DLP PROJECTOR 1CHIP DLP Projector

    model PT-DW830E
    제조사 파나소닉(Panasonic)
    주요사양 Filter-less dust-resistant optical engine
    주요사양 8,500lm brightness
    주요사양 WXGA (1,280 x 800) resolution
    주요사양 Excellent image quality with new dynamic RGB booster and vivid colour control
    주요사양 Dual Lamp System with lamp relay mode enables 24/7 operation

    목록으로

    본문

    Detail view

    DLP™ chipPanel size16.5 mm (0.65 in)
    diagonal
    (16:10 aspect ratio)
    Display methodDLP™ chip x 1, DLP™ projection system
    Pixels1,024,000
    (1,280 x 800) pixels
    Lamp420 W UHM lamp x 2
    Brightness8,500 lm
    (dual-lamp, LAMP MODE: NORMAL)
    Center-to-corner uniformity90 %
    Contrast ratio10,000:1 (full on/full off, in dynamic iris 3 mode)
    Resolution1,280 x 800 pixels
    (Input signals that
    exceed this resolution
    will be converted
    to 1,280 x 800 pixels.)
    LensPT-DW830Powered zoom (throw ratio 1.8-2.5:1),
    powered focus F 1.7-1.9, f 25.6-35.7 mm
    PT-DW830LOptional powered zoom/focus lenses and fixed-focus lens
    Screen size (diagonal)1.27-15.24 m (50-600 in),
    1.27-5.08 m (50-200 in) with the ET-DLE055,
    2.54-8.89 m (100-350 in) with the ET-DLE030,
    16:10 aspect ratio
    Optical axis shiftVertical+60 % from center of screen (powered)
    Horizontal±10 % from center of screen (powered)
    Scanning frequency
    HDMI/DVI-DfH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
    RGBfH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
    YPBPR (YCBCR)fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
    fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
    fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
    fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
    fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
    fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
    fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
    fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]    		fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
    fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
    fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
    fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
    fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
    fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
    fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
    Video/YCfH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
    fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
    Terminals
    HDMI INHDMI 19-pin x 1 (Deep Color, compatible with HDCP)
    DVI-D INDVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    RGB 1 INBNC x 5 (RGB/YPBPR/YCBCR x 1)
    RGB 2 IND-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
    3D SYNC 1 IN/OUTBNC x 1 (3D timing signal)
    3D SYNC 2 OUTBNC x 1 (3D timing signal)
    VIDEO INBNC x 1 (composite video)
    SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)
    SERIAL OUTD-sub 9-pin (male) x 1 for link control)
    REMOTE 1 INM3 jack x 1 (for wired remote control)
    REMOTE 1 OUTM3 jack x 1 (for link control)
    REMOTE 2 IND-sub 9-pin (female) x 1 for external control (parallel)
    LAN / DIGITAL LINKRJ-45 x 1 (for network and DIGITAL LINK (video/network/serial control) connection,
    100Base-TX, compatible with Art-Net, compliant with PJLink™,
    Deep Color, compatible with HDCP)
    Keystone correction rangeVertical: ±40 °
    InstallationCeiling/floor, front/rear
    Cabinet materialsMolded plastic
    Power supply120-240 V AC, 10-5.2 A, 50/60 Hz
    Power consumption1,030 W (1,060 VA)
    (0.3 W when STANDBY MODE set to ECO*1, 3 W when STANDBY MODE set to NORMAL)
    Dissipation BTU3,516 BTU/hour
    (without light DW830: 3,400 BTU/hour)
    Dimensions (W x H x D)PT-DW830498 x 200 x 556 mm (19-19/32 x 7-7/8 x 21-7/8 in) (with supplied lens)
    PT-DW830L498 x 200 x 513 mm (19-19/32 x 7-7/8x 20-3/16 in) (without lens)
    WeightPT-DW830Approximately 18.3 kg (40.3 lbs) (with supplied lens)
    PT-DW830LApproximately 17.6 kg (38.8 lbs) (without lens)
    Operating environmentOperating temperature: 0-45 °C (32-113 °F),
    operating humidity: 10-80 % (no condensation)
    Operation noise40 dB (dual lamp operation, lamp mode: NORMAL),
    35 dB (dual lamp operation, lamp mode: ECO)
    Applicable softwareLogo Transfer Software,
    Multi Projector Monitoring & Control Software
    Supplied accessoriesPower cord with secure lock, wireless/wired remote control unit,
    batteries (R03/AAA type x 2), software CD-ROM (Logo Transfer Software,
    Multi Projector Monitoring & Control Software)
