| DLP™ chip | Panel size | 17.8 mm (0.7 in) diagonal (4:3 aspect ratio) |
|---|
| Display method | DLP™ chip x 1, DLP™ projection system |
|---|
| Pixels | 786,432 (1,024 x 768) pixels |
|---|
| Lamp | 420 W UHM lamp x 2 |
|---|
| Brightness | 8,500 lm
(dual-lamp, LAMP MODE: NORMAL) |
|---|
| Center-to-corner uniformity | 90 % |
|---|
| Contrast ratio | 10,000:1 (full on/full off, in dynamic iris 3 mode) |
|---|
| Resolution | 1,280 x 800 pixels
(Input signals that
exceed this resolution
will be converted
to 1,280 x 800 pixels.) |
|---|

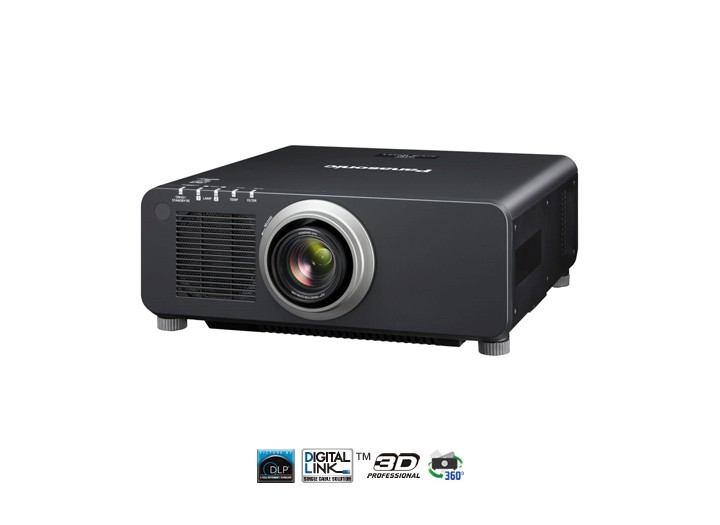

| Lens | PT-DX100 | Powered zoom (throw ratio 1.8-2.5:1),
powered focus F 1.7-1.9, f 25.6-35.7 mm |
|---|
| PT-DX100L | Optional powered zoom/focus lenses and fixed-focus lens |
|---|
| Screen size (diagonal) | 1.27-15.24 m
(50-600 in),
1.27-5.08 m
(50-200 in)
with the ET-DLE055,
2.54-8.89 m
(100-350 in)
with the ET-DLE030,
4:3 aspect ratio |
|---|
| Optical axis shift | Vertical | +50 % from center of screen (powered) |
|---|
| Horizontal | ±10 % from center of screen (powered) |
|---|
| Scanning frequency |
|---|
| HDMI/DVI-D | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz |
|---|
| RGB | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower |
|---|
| YPBPR (YCBCR) | fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] | fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
|---|
| Video/YC | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|---|
| Terminals |
|---|
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) |
|---|
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
|---|
| RGB 1 IN | BNC x 5 (RGB/YPBPR/YCBCR x 1) |
|---|
| RGB 2 IN | D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) |
|---|
| 3D SYNC 1 IN/OUT | BNC x 1 (3D timing signal) |
|---|
| 3D SYNC 2 OUT | BNC x 1 (3D timing signal) |
|---|
| VIDEO IN | BNC x 1 (composite video) |
|---|
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
|---|
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control) |
|---|
| REMOTE 1 IN | M3 jack x 1 (for wired remote control) |
|---|
| REMOTE 1 OUT | M3 jack x 1 (for link control) |
|---|
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
|---|
| LAN / DIGITAL LINK | RJ-45 x 1 (for network and DIGITAL LINK (video/network/serial control) connection,
100Base-TX, compatible with Art-Net, compliant with PJLink™,
Deep Color, compatible with HDCP) |
|---|
| Keystone correction range | Vertical: ±40 ° |
|---|
| Installation | Ceiling/floor, front/rear |
|---|
| Cabinet materials | Molded plastic |
|---|
| Power supply | 120-240 V AC, 10-5.2 A, 50/60 Hz |
|---|
| Power consumption | 1,030 W (1,060 VA)
(0.3 W when STANDBY MODE set to ECO*1, 3 W when STANDBY MODE set to NORMAL) |
|---|
| Dissipation BTU | 3,516 BTU/hour
(without light DW830: 3,400 BTU/hour) |
|---|
| Dimensions (W x H x D) | PT-DX100 | 498 x 200 x 556 mm (19-19/32 x 7-7/8 x 21-7/8 in) (with supplied lens) |
|---|
| PT-DX100L | 498 x 200 x 513 mm (19-19/32 x 7-7/8x 20-3/16 in) (without lens) |
|---|
| Weight | PT-DX100 | Approximately 18.3 kg (40.3 lbs) (with supplied lens) |
|---|
| PT-DX100L | Approximately 17.6 kg (38.8 lbs) (without lens) |
|---|
| Operating environment | Operating temperature: 0-45 °C (32-113 °F),
operating humidity: 10-80 % (no condensation) |
|---|
| Operation noise | 40 dB (dual lamp operation, lamp mode: NORMAL),
35 dB (dual lamp operation, lamp mode: ECO) |
|---|
| Applicable software | Logo Transfer Software,
Multi Projector Monitoring & Control Software |
|---|
| Supplied accessories | Power cord with secure lock, wireless/wired remote control unit,
batteries (R03/AAA type x 2), software CD-ROM (Logo Transfer Software,
Multi Projector Monitoring & Control Software) |
|---|
