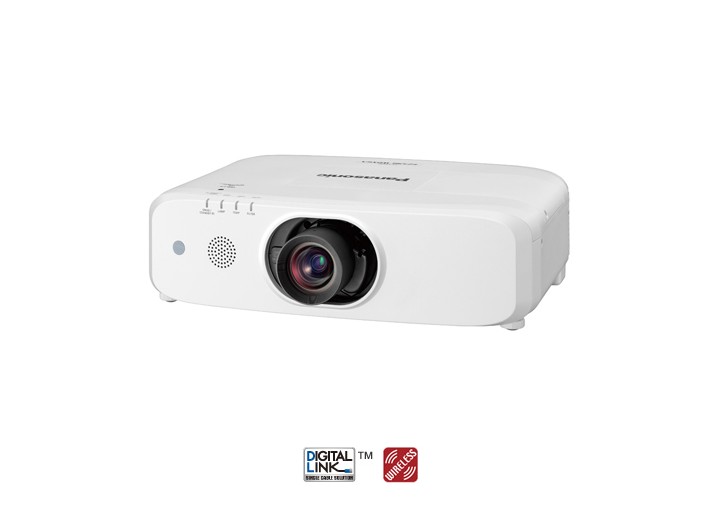

LCD PROJECTOR 3LCD Projector
| model | PT-EX520 |
|---|---|
| 제조사 | 파나소닉(Panasonic) |
| 주요사양 | Long lamp replacement cycle |
| 주요사양 | Powered lens shift, zoom, and focus via remote control |
| 주요사양 | Corner keystone & curved screen correction |
| 주요사양 | High brightness of 5,300 lm from a compact body |
| 주요사양 | High resolution up to XGA for detailed full HD images |
목록으로
- PREVIOUS3LCD Projector
- NEXT3LCD Projector
본문
Detail view
| General | |||
| Panel Type | 0.63" LCD panel x 3 | ||
| Lamp | 320W UHM | ||
| Brightness | 5,300 lumens | ||
| Lens | Powered 1.8X zoom (throw ratio 1.32-2.44:1), power focus F 1.6-2.2, f1.71-31.7mm | ||
| Contrast (Full on / Full off) | 2,000:1 | ||
| Resolution (Native / maximum) | XGA | ||
| Video Compatibility | PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43 | ||
| Screen Size | 40" - 400" | ||
| Lens Shift | Vertical ±50% | ||
| Keystone Correction Range | Vertical ±35° or horizontal ±35% | ||
| Weight | approximately 8.4kg | ||
| Dimensions (W x H x D) | 498 x 145 x 398.3 mm | ||
| Power Consumption | 461W | ||
| Terminals | HDMI in (19-pin x 1) RGB1&2 in (BNC x 5, Mini D-sub 15-pin(female)x1) Video (pin jack x 1) Monitor out (Mini D-sub 15-pin x 1) Audio in (Pin Jack (L/R) x 1, M3 x 2 Audio out (M3 x 1) Serial in (D-sub 9-pin x 1) Remote in (M3 x 1) Remote in 2 (D-sub 9-pin x 1) LAN (RJ-45 x 1) USB-A (for optional wireless module ET-WML100 / DC output terminal for power supply) | ||
| Replacement Lamp | ET-LAEF100 | ||
| Optional Accessories | ET-RFE300 (Replacement filter) ET-PKE300B (Bracket assembly) ET-PKD120H (High ceiling mount bracket) ET-PKD120S (Low ceiling mount bracket) | ||
| Optional Lens | Zoom lens | ET-ELW30 (0.96-1.22:1) ET-ELT30 (2.23-4.02:1) ET-ELT31 (4.02-7.20:1) ET-ELW31 (0.74-0.96:1) | |
| Standard Accessories | Software CD-ROM Wireless/wired remote control & batteries Power cord & holder | ||
