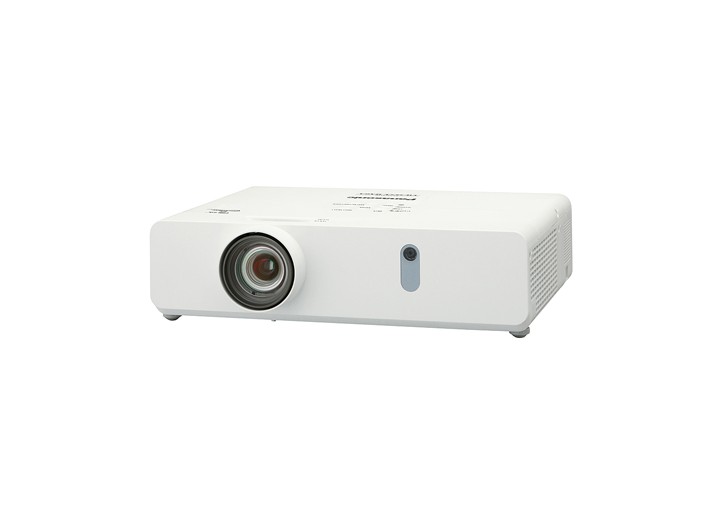

LCD PROJECTOR 3LCD Projector
| model | PT-VX420 |
|---|---|
| 제조사 | 파나소닉(Panasonic) |
| 주요사양 | 10,000 Contrast |
| 주요사양 | 7,000 hours lamp life |
| 주요사양 | 4500 ANSI lumens |
| 주요사양 | XGA 1024 x 768 Resolution (Native) |
| 주요사양 | 1.2-1.9 Throw Ratio |
목록으로
- PREVIOUS3LCD Projector
- NEXT3LCD Projector
본문
Detail view
| General | ||
| Panel Type | 0.63" LCD x 3 | |
| Lamp | 240W x 1 | |
| Brightness | 4500 lumens | |
| Lens | F1.60-1.90, f15.31-26.24mm | |
| Contrast (Full on / Full off) | 12000:1 | |
| Resolution (Native / maximum) | XGA | |
| Video Compatibility | PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43 | |
| Screen Size | 30" - 300" | |
| Keystone Correction Range | Vertical ±40°(±30° when easy setting); Horizontal ±30° (±20° when easy setting) | |
| Weight | Approx 3.4kg | |
| Dimensions (W x H x D) | 352 x 98 x 279.4 mm | |
| Power Consumption | 320W (Standby mode : 9.5W, 0.5W(eco), 1.6W(network)) | |
| Terminals | HDMI (19 pin x 1) PC in (D-sub HD 15-pin x 1) PC in/Monitor out (D-sub HD 15-pin x 1) Video in (Pin jack x 1) S-Video in (Mini DIN 4-pin x 1) Audio in (M3 x 1) Audio in/Mic in (M3 x 1, L,R x 1) Audio in (Pin jack x 2, L-R x 1) Audio out (M3 x 1, L, R x 1) LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible Serial in (D-sub 9-pin (female) x 1) | |
| Replacement Lamp | ET-LAV300 | |
| Optional Accessories | ET-PKL100H (High ceiling mount bracket) ET-PKL100S (low ceiling mount bracket) ET-PKL400B(mount bracket) ET-RFV300(filter unit) | |
| Optional Lens | -- | |
| Standard Accessories | Wireless remote control unit Battery for remote control unit Power cord VGA cable Lens cap | |
