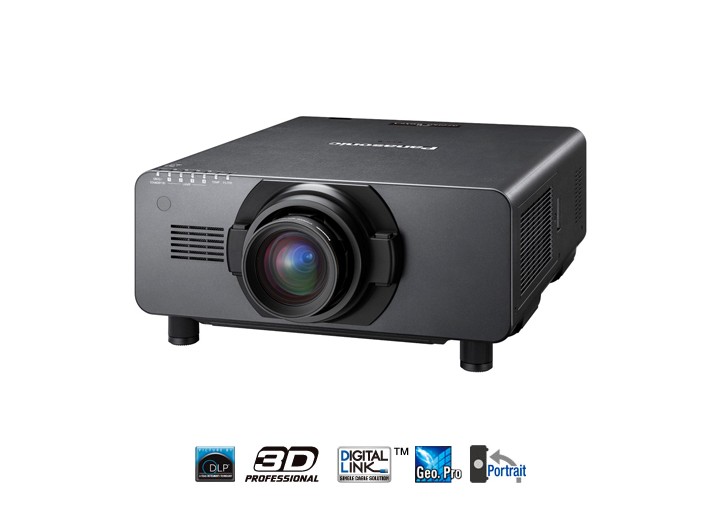

| DLP™ chip | Panel size | 24.4 mm (0.96 inches) diagonal
(16:10 aspect ratio) |
|---|
| Display method | DLP™ chip x 3, DLP™ projection system |
|---|
| Pixels | 2,304,000 (1,920 x 1,200) x 3,
total of 6,912,000 pixels |
|---|
| Refresh Rate | 120 Hz |
|---|
| Lamp | Normal | UHM lamp x 4 (432 W), replacement cycle of up to 3,000 hours*3 |
|---|
| Portrait | UHM lamp x 4 (432 W), replacement cycle of up to 700 hours |
|---|
| Brightness | 20,000 lm (four-lamp) |
|---|
| Contrast ratio | 10,000:1 (full on/full off, in Dynamic iris mode 3) |
|---|
| Resolution | 1,920 x 1,200 pixels |
|---|
| Lens | Optional powered zoom and fixed-focus lenses |
|---|
| Screen size (diagonal) | 1.78-25.4 m (70-1,000 in),
1.78-7.62 m (70-300 in)
with the ET-D75LE50,
3.05-15.24 m (120-600 in)
with the ET-D75LE90,
1.78-15.24 m (70-600 in)
with the ET-D75LE8,
16:10 aspect ratio |
|---|
| Center-to-corner uniformity | 90 % |
|---|
| Optical axis shift | Vertical | ±55 % (±44 % with the ET-D75LE6,
+73 - +78 % with the ET-D75LE90) (powered |
|---|
| Horizontal | ±20 % (±15 % with the ET-D75LE6,
±6 % with the ET-D75LE90) (powered) |
|---|
| Scanning frequency | SDI | SD-SDI | SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i |
|---|
| HD-SDI | SMPTE ST 292 compliant,
[YPBPR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i,
1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p |
|---|
| 3G-SDI | SMPTE ST 424 compliant,
[YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p |
|---|
| Dual-link HD-SDI | SMPTE ST 372 compliant,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p,
[X´Y´Z´ 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/24sF |
|---|
Dual-link
3G-SDI | SMPTE ST 425 compliant,
[YPBPR 4:4:4 12-bit / 10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p,
2048 x 1080/50p, 2048 x 1080/48p,
[RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p |
|---|
HDMI/DVI-D/
DIGITAL LINK | 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF,
1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA*6 (1920 x 1200),
compatible with non-interlaced signals only, dot clock: 25-162 MHz |
|---|
DVI-D/HDMI
simultaneous
input | 1920 x 1200p, 1920 x 1080p, 1400 x 1050p, 1366 x 768p, 120 Hz/100 Hz |
|---|
| RGB | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 13.5-162 MHz |
|---|
| YPBPR (YCBCR) | fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] | fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
|---|
| Video/YC | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|---|
| Terminals | SDI IN | BNC x 2 (3G/HD/SD-SDI) |
|---|
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP,
compatible with single link only) |
|---|
| HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) |
|---|
| RGB 1 IN | BNC x 5 (RGB/YPBPR/YCBCR/YC x 1) |
|---|
| RGB 2 IN | D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) |
|---|
| 3D SYNC IN/OUT | BNC x 1 (3D timing signal) |
|---|
| 3D SYNC OUT | BNC x 1 (3D timing signal) |
|---|
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
|---|
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control |
|---|
| REMOTE 1 IN | M3 x 1 for wired remote control |
|---|
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) |
|---|
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
|---|
| LAN / Digital Link | RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX,
compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP) |
|---|
| Keystone correction range | Vertical: ±40°*6, horizontal: ±15° |
|---|
| Installation | Ceiling/floor, front/rear, portrait |
|---|
| Cabinet materials | Molded plastic |
|---|
| Power supply | 200-240 V AC, 50/60 Hz |
|---|
| Power consumption | 2,060 W (0.3 W with STANDBY MODE set to ECO,*1
4 W with STANDBY MODE set to NORMAL.) |
|---|
| Dimensions (W x H x D) | 620 x 255 x 730 mm (24-13/32 x 10-1/32 x 28-3/4 in)
(optional lens, legs and lens cover not included) |
|---|
| Weight | Approx. 41 kg (90.4 lbs) (optional lens not included) |
|---|
| Operation noise | 46 dB |
|---|
| Operating temperature | 0-45°C (32-113°F) |
|---|
| Operating humidity | 10- 80 % (no condensation) |
|---|
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software,
Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*11 Auto Screen Adjustment Kit) |
|---|
| Supplied accessories | Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2)
software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software) (x 1) |
|---|
|
