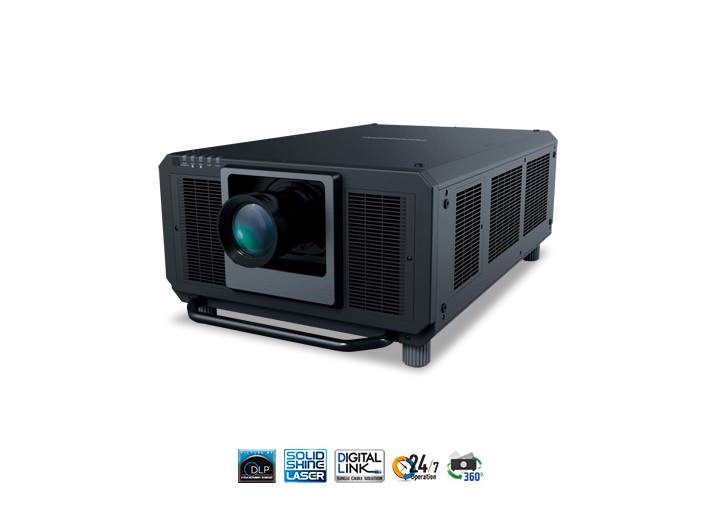

LASER PROJECTOR 3 DLP Laser Projector
| Model | PT-RS30K |
|---|---|
| 제조사 | 파나소닉(Panasonic) |
| 주요사양 | 1400 x 1050 (SXGA+) Resolution |
| 주요사양 | 20000 Hours Lamp Life (Typical) |
| 주요사양 | 20000 Contrast Ratio |
| 주요사양 | Laser Light Source / 3 Chip DLP Display Display Technology |
| 주요사양 | 31000 ANSI Lumens |
목록으로
- PREVIOUS3 DLP Laser Projector
- NEXT3 DLP Laser Projector
본문
Detail view
PRODUCT SPECIFICATIONS
| Power supply | AC 100-120 V, 50/60 Hz; AC 200-240 V, 50/60 Hz |
| Power consumption | 2,870 W (2,870 VA AC200V) Average power consumption Varies depending on operation mode setting.) HIGH: 2,310W NORMAL: 1,890W LONG LIFE 1: 1,040-1,680W LONG LIFE 2: 924-1,580W LONG LIFE 3: 794-1,460W *Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297ft), IEC627087: 2008 Broadcast contents, Picture mode: Standard, Dynamic contrast [2] 0.3 W with STANDBY MODE set to ECO 4 W with STANDBY MODE set to NORMAL |
| BTU value | Max 9,806 BTU |
| DLP™ chip | Panel size | 24.1 mm (0.95 inches) diagonal (4:3 aspect ratio) |
| DLP™ chip | Display method | DLP™chip x 3 (R, G, B), DLP™projection system |
| DLP™ chip | Pixels | 1,470,000 (1400 x1050) x3, total of 4,410,000 pixels |
| LENS | Optional powered zoom/focus lenses |
| Light source | Laser Diode Laser class 1 |
| Illumination life of set | Varies depending on operation mode setting. Luminance life for set: 18,000 hours at half luminance (HIGH)/ 8,000 hours at 70% luminance 20,000 hours at half luminance (NORMAL) 43,800 hours at constant luminance (LONG LIFE 1)/ 61,320 hours at constant luminance (LONG LIFE 2)/ 87,600 hours at constant luminance (LONG LIFE 3) * IEC62087: 2008 Broadcast contents, Dynamic contrast [3] |
| Screen size | 1.78-25.4 m (70-1,000 inches) (4:3 aspect ratio) 1.78-15.24 m (70-600 inches) with the ET-D75LE8 (4:3 aspect ratio) 3.05-15.24 m (120-600 inches) with the ET-D75LE95 (4:3 aspect ratio) |
| Brightness*1 | Varies depending on operation mode setting. 30,000 lm*2*4/31,000 lm*3*4 (Center) (HIGH) 25,000 lm*2*4/26,000 lm*3*4 (Center) (NORMAL) 12,000 lm at constant luminance (LONG LIFE 1) 10,000 lm at constant luminance (LONG LIFE 2) 8,000 lm at constant luminance (LONG LIFE 3) |
| Center-to-corner uniformity*1 | 90% |
| Contrast*1 | 20,000:1 (full on/full off, in Dynamic Contrast 3 mode) |
| Resolution | 1400 x1050 pixels (Input signals that exceed this resolution will be converted to 1400 x1050 pixels.) |
| Scanning frequency | Video/Y/C | fH:15.73KHz fV:59.94Hz, fH:15.63KHz fV:50Hz |
| Scanning frequency | RGB | • Resolution: 640 x 400 pixels to 1920 x 1200 pixels • Dot clock frequency: 162MHz or less • PIAS (Panasonic Intelligent Auto Scanning) |
| Scanning frequency | YPBPR (YCBCR) | • Resolution: 480i/576i to 1920 x 1080 pixels • Dot clock frequency: 148.5MHz or less • The SYNC/HD and VD terminals do not support 3 value SYNC. |
| Scanning frequency | DVI | • Moving image signal resolution: 480i*5/576i*5 to 1920x1080 Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) • Dot clock frequency: 25 MHz to 162 MHz |
| Scanning frequency | HDMI/DIGITAL LINK | • Moving image signal resolution: 480i*5/576i*5 to 1920x1080 Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) • Dot clock frequency: 25 MHz to 162 MHz |
| Scanning frequency | SDI | SD-SDI signal HD-SDI signal 3G-SDI signal |
| Optical axis shift | Vertical | ±50% (±40% with the ET-D75LE6), (+67-71% with the ET-D75LE95), from center of screen, powered |
| Optical axis shift | Horizontal | ±30% (±20% with the ET-D75LE6), (±8% with the ET-D75LE95), from center of screen, powered NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50. |
| Installation | Ceiling/floor, front /rear, free 360-degree installation |
| Terminals | RGB 1 IN | BNC x 5 |
| Terminals | RGB 1 IN | R, G, B | R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic |
| Terminals | RGB 1 IN | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms |
| Terminals | RGB 1 IN | Y/C | Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms |
| Terminals | RGB 1 IN | Video in | BNC x 1, 1.0 Vp-p, 75 ohms |
| Terminals | RGB 2 IN | D-sub HD 15-pin (female) x 1 |
| Terminals | RGB 2 IN | R, G, B | R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic |
| Terminals | RGB 2 IN | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms |
| Terminals | DVI-D IN | DVI-D 24-pin x1 Single link, DVI 1.0 compliant, HDCP compatible |
| Terminals | HDMI IN | HDMI 19-pin x1 HDCP compatible, Deep Color compatible |
| Terminals | SDI IN 1 | BNC x 1 SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual link HD-SDI (LINK-A) signal SMPTE ST 372 compliant Dual link 3G-SDI (Link 1) signal SMPTE ST 425 compliant |
| Terminals | SDI IN 2 | BNC x 1 SD-SDI signal SMPTE ST 259 compliant HD-SDI signal SMPTE ST 292 compliant 3G-SDI signal SMPTE ST 424 compliant Dual link HD-SDI (LINK-B) signal SMPTE ST 372 compliant Dual link 3G-SDI (Link 2) signal SMPTE ST 425 compliant |
| Terminals | DIGITAL LINK | RJ-45 HDBaseT™ compliant, HDCP compatible, Deep Color compatible |
| Terminals | 3D Sync 1 In/Out / Multi Projector Sync In | BNC x 1, IN : TTL Hi-z OUT : TTL max10mA |
| Terminals | 3D Sync 2 Out/Multi Projector Sync Out | BNC x 1, TTL max10mA |
| Terminals | SERIAL IN | D-sub 9 pin x 1 for external control (RS-232C compliant) |
| Terminals | SERIAL OUT | D-sub 9 pin x 1 for link control |
| Terminals | Remoter 1 In | M3 stereo mini jack x 1 for wired remote control |
| Terminals | Remoter 1 Out | M3 stereo mini jack x 1 for link control |
| Terminals | Remoter 2 In | D-sub 9 pin x 1 for external control (parallel) |
| Terminals | DIGITAL LINK/LAN | RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP) |
| Terminals | DC OUT 5V | USB connector (type A) x 2 for power supply only (DC 5V, Max.900mA) |
| Power cord length | 3.0 m (9 ft 10 in) ft |
| Cabinet materials | Processed metal parts, Molded plastic |
| Dimensions (W x H x D) | 700 x 418*8x1,250 mm (27-9/16 x 16-15/32 x 49-7/32 inches) (with protrusion parts) 700 x 373*9x1,070 mm (27-9/16 x 14-11/16 x 42-1/8 inches) (without protrusion parts) |
| Weight*10 | 79 kg (174.2 lbs) |
| Operation noise*2 | 49 dB |
| Operating temperature | Varies depending on operation mode setting. HIGH/NORMAL The operating temperature range is 0°C to 50°C (32 °F to 122 °F). (Less than 1,400m (4,593 ft) above sea level) The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 1,400m (4,593 ft) to 4,200m (13,780 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher and at less than 2,700m (8,858 ft) above sea level, or at ambient operating temperatures of 25 °C (77 °F) or higher and between 2,700m (8,858 ft) and 4,200m (13,780 ft) above sea level, the brightness of the light source may drop in order to protect the projector. LONG LIFE 1/2/3 The operating temperature range is 0°C to 45°C (32 °F to 113 °F). (Less than 2,700m (8,858 ft) above sea level) • If using at ambient operating temperatures of 35 °C (95 °F) or higher, the brightness of the light source may drop in order to protect the projector. When using a smoke cut lter (regardless of operating mode) 0 °C to 40 °C (32 °F to 104 °F) Less than 1,400 m (4,953 ft) above sea level |
| Operating humidity | 10%-80% (no condensation) |
| Note | For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” *1 When the standby mode is set to eco, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal. *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *3 The value of the light output at the center region of the projected image is extracted based on the light output measurement method defined by the ISO/IEC 21118:2012 international standards. *4 In AC200V, When using a projection lens other than ET-D75LE95. *5 Pixel-Repetition signal(dot clock frequency 27.0MHz) only *6 Only the vertical keystone correction angle can be corrected in the direction in which the projector body moves away from the screen. *7 When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°. *8 With legs at shortest position. *9 Without legs. *10 Average value. May differ depending on the actual unit. |
| Brightness | 30,000 lm/ 31,000 lm (Center) |
| Technology | 3-Chip DLP Laser |
| Filter life | Varies depending on operation mode setting. |
| Filter life | Normal filter | 4,000 hours (NORMAL)/2,000 hours (HIGH)/ 20,000 hours (LONG LIFE 1/2/3) |
| Filter life | Long life filter unit | 20,000 hours (NORMAL)/4,000 hours (HIGH)/ 40,000 hours (LONG LIFE 1/2/3) |
<sup>(1)</sup> Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.<br/>
<sup>(2)</sup> Maximum physical resolution. Quad Pixel Drive: ON.<br/>
<sup>(3)</sup> Measured at center area of projector screen. Measurement method is in compliance with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.<br/>
<sup>(4)</sup> With lens other than ET-D75LE95 and power supply of AC 200 V.
<sup>(2)</sup> Maximum physical resolution. Quad Pixel Drive: ON.<br/>
<sup>(3)</sup> Measured at center area of projector screen. Measurement method is in compliance with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.<br/>
<sup>(4)</sup> With lens other than ET-D75LE95 and power supply of AC 200 V.
