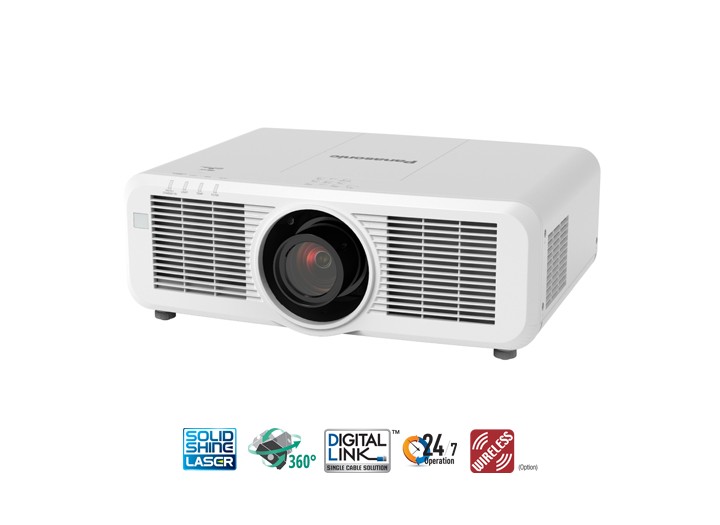

LASER PROJECTOR 3 LCD Laser Projector
| Model | PT-MW530 |
|---|---|
| 제조사 | 파나소닉(Panasonic) |
| 주요사양 | 1280 x 800 (WXGA) Resolution |
| 주요사양 | 20000 Hours Lamp Life (Typical) |
| 주요사양 | 16.1 KG's (Weight) |
| 주요사양 | Laser Light Source / LCD Display Technology |
| 주요사양 | 5500 ANSI Lumens |
목록으로
- PREVIOUS3LCD Laser Projector
- NEXT3 DLP Laser Projector
본문
Detail view
PRODUCT SPECIFICATIONS
| Brightness | 5 500 lumens |
| Technology | Laser LCD |
| Power supply | AC 100-240 V, 50/60 Hz |
| Power consumption | *1 415W (during standby) Approx. 0.5 W (When [STANDBY MODE] is set to [ECO]) Approx. 22 W (When [STANDBY MODE] is set to [NORMAL]) Approx. 47 W(When [IN STANDBY MODE] in [AUDIO SETTING] is set to [ON], maximum audio is output, and USB memory is inserted in the terminal) Approx. 115 W(When [QUICK STARTUP] is set to [ON], [IN STANDBY MODE] in [AUDIO SETTING] is set to [ON], maximum audio is output, and the power is supplied from the terminal) |
| BTU value | Max 1,416BTU |
| LCD panel | Panel size | 19.3 mm (0.76 inches) diagonal (16:10 aspect ratio) |
| LCD panel | Display method | Transparent LCD panel (x 3, R/G/B) |
| LCD panel | Drive method | Active matrix method |
| LCD panel | Pixels | 1,024,000 (1280 x 800) x 3, total of 3,072,000 pixels |
| Lens | PT-MW630 | Powered zoom ( 1.6x), focus lenses, F 1.7- 2.3, f 26.8- 45.5 mm Throw ratio 1.6-2.8:1 |
| Lens | PT-MW630L | Optional powered zoom/focus lenses and fixed-focus lens |
| Light source | Laser Diode Laser class 1(Class3R for US models ) |
| Illumination life of set | Varies depending on operation mode setting. 20,000 hours at half luminance * IEC62087: 2008 Broadcast contents, Dynamic contrast [2], Temperature: 30°C (86F), Under conditions of 0.15 mg/m3 of particulate matter |
| Projection size | 1.02?10.16 m (40?400 inches) diagonally, 16:10 a spect ratio |
| Colors | Full color ( 16,777,216 colors) |
| Light output | *1 6,500 lumens (Input signals: PC, Operating mode: Normal, Dynamic mode) |
| Center-to-corner uniformity | 90% |
| Contrast Ratio | *1 3,000,000:1(all white/all black)(Dynamic Contrast 1 or 2 ) (Input signals: PC, Operating mode: Normal, Dynamic mode) |
| Resolution | WXGA 1280 x 800 pixels |
| Scanning frequency | RGB | fH: 15- 91kHz, fV: 24 - 100Hz, dot clock: 162 MHz or less |
| Scanning frequency | YPBPR(YCBCR) | 480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz |
| Scanning frequency | Video | fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM] |
| Scanning frequency | HDMI/DIGITAL LINK | ・Moving image signal resolution: 480i ( 525i)*2, 576i ( 625i)*2, 480p ( 525p), 576p ( 625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 ( 1125)/24p, 1080 ( 1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 ( 1125)/50p Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) ・Dot clock frequency: 25 MHz to 162 MHz |
| Optical axis shift | Vertical ±67%, Horizontal ±35% (Supplied lens/ET-ELS20/ET-ELW20/ET-ELT20/ET-ELT21) Vertical ±60%, Horizontal ±30% (ET-ELW22) NOTE: Optical axis shift function cannot be operated when used with the ET-ELW21. |
| Installation | Ceiling/desk/AUTO, front/rear, 360 degree free installation |
| Speaker | 4.0 cm round-type x 1 |
| Maximum usable volume output | 10 W (monaural) |
| Terminals | HDMI 1 IN | HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz) |
| Terminals | HDMI 2 IN | HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz) |
| Terminals | RGB 1 IN | BNC (female) x 5, RGB/Y PB/PR (CB/CR) |
| Terminals | RGB 2 IN | D-Sub 15 p (female) x 1, RGB/Y PB/PR (CB/CR) |
| Terminals | MONITOR OUT | D-Sub 15 p (female) x 1, RGB/Y PB/PR (CB/CR) |
| Terminals | VIDEO IN | Pin jack x 1 |
| Terminals | AUDIO IN 1 | M3 stereo jack x 1(L-R) |
| Terminals | AUDIO IN 2 | M3 stereo jack x 1(L-R) |
| Terminals | AUDIO IN 3 | Pin jack x 2(L-R) |
| Terminals | VARIABLE AUDIO OUT | M3 jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less |
| Terminals | SERIAL IN | D-sub 9 pin, RS-232C compliant, for computer control use |
| Terminals | REMOTE 1 | D-Sub 9 p (female) x 1, for external control (parallel) |
| Terminals | REMOTE 2 | M3 jack x 1(L-R) for link control (for wired remote control) |
| Terminals | LAN | RJ-45 x 1 for network connection, 10/100Base-TX, compliant with PJLink™(Class 2) |
| Terminals | DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compliant with PJLink™(Class 2), Deep Color, HDCP |
| Terminals | VIEWER / PAIRING | USB type-A x 1 |
| Terminals | DC OUT | USB type-A x 1(DC 5V, 2A(Max) ) |
| Power cord length | 3.0m(9ft 10in) |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | PT-MW530 560 x 205*4 x 443mm (22-1/16 x 8-1/16*4 x 17-7/16inches) (with supplied lens) PT-MW530L 560 x 205*4 x 428mm (22-1/16 x 8-1/16*4 x 16-27/32inches) (without lens) |
| Weight | *5 PT-MW530 Approx. 16.9 kg (37.3 lbs) (with supplied lens) PT-MW530L Approx. 16.1 kg (35.5 lbs) (without lens) |
| Noise level | *1 32dB (Operating mode: NORMAL/ECO), 26dB (Operating mode: QUIET) |
| Operating environment | Temperature | 0°C (32°F) to 45°C (113°F) The projector cannot be used at an altitude of 2,700 m (8,858') or higher above sea level. The light output may decrease to protect the projector when the operating environment temperature exceeds 36 °C (96.8 °F). |
| Operating environment | Humidity | 20% to 80% (no condensation) |
| Note | Weights a nd dimensions shown are approximate. Speci cations subject t o change w ithout notice. *1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *2 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal) for 480i(525i) and 576i(625i) *3 When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55° . *4 When adjustable feet shortened. *5 Average value. May differ depending on models. *6 Can be used when the ET-WM300 (option) is installed. *7 When the projector is mounted to the existing Ceiling Mount Bracket (in combination with the Model No.: ET-PKD120H (for High Ceilings) or ET-PKD120S (for Low Ceilings), and the Model No.: ET-PKE300B (Projector Mount Bracket)), it is necessary to replace the drop- prevention wire rope with the one corresponding to this projector. Consult your dealer. Drop-prevention set (service model no.: DPPW1004Z A/X1) *8 The suffix of the Model No. differs according to the license type. |
