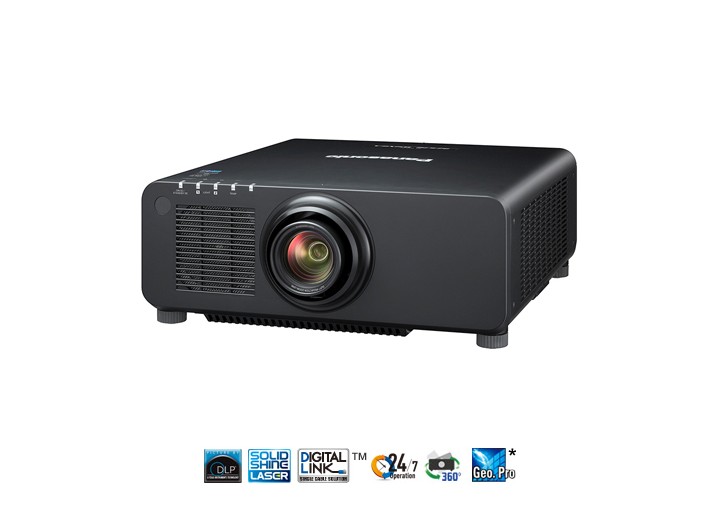

LASER PROJECTOR 1 DLP Laser Projector

Model	PT-RZ970
제조사	파나소닉(Panasonic)
주요사양	1920 x 1200 (WUXGA) Resolution
주요사양	20000 Hours Lamp Life (Typical)
주요사양	10000 Contrast Ratio
주요사양	Laser Light Source / DLP Display Display Technology
주요사양	10000 ANSI Lumens

목록으로

PREVIOUS1 DLP Laser Projector 19.05.14
NEXT3 DLP Laser Projector 19.05.14

본문

Detail view

PRODUCT SPECIFICATIONS

Power supply	AC100-240V 3.5A 50/60 Hz
Power consumption	1,050W NORMAL: 742W ECO: 617W LONG LIFE1: 410-588 LONG LIFE 2: 375-588W LONG LIFE 3: 349-588W SHUTTER: 82W STANDBY MODE [ECO]1: 0.2W STANDBY MODE [NORMAL]: 3W STANDBY MODE (When the [QUICK STARTUP] function is enabled): Approx. 85 W Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297 ft), ICE62087: 2008 Broadcast contents, Picture mode: Standard, Dynamic Contrast2
BTU value	Max 3,584 BTU
Lens \| PT-RZ970B/W	Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm
Lens \| PT-RZ970LB/LW	Optional powered zoom/focus lenses and xed-focus lens
Light source	Laser Diode Laser class 1(Class3R for US models) Luminance life for set: 20,000 hours at half luminance (normal)/ 24,000 hours at half luminance (Eco) * Temperature: 30°C (86°F), Altitude 700m (2,297 ft), Dust: 0.15mg/m3 Dynamic Contrast3 43,800 hours at constant luminance (LONG LIFE1) 61,320 hours at constant luminance (LONG LIFE2) 87,600 hours at constant luminance (LONG LIFE3)
Screen size	1.27- 15.24 m (50-600 inches) (16:10 aspect ratio) 1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) 2.54 - 7.62 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)
Brightness*3	10,000 lumens (Center)2/ 9,400 lumens3 9,400 lumens (Half luminance) (NORMAL) 7,500 lumens (Half luminance) (ECO) 3,700 lumens (Constant luminance) (LONG LIFE1) 3,100 lumens (Constant luminance) (LONG LIFE2) 2,500 lumens (Constant luminance) (LONG LIFE3)
Center-to-corner uniformity*3	90%
Contrast*3	10,000:1 (All White/All Black) (Dynamic Contrast3)
Resolution	1920 × 1200 pixels
Scanning frequency \| SDI	3G-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i,1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p,[2K/24p], [2K/25p], [2K/30p] 3G-SDI signal (YPBPR4:2:2 10-bit): SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p,[2K/48p], [2K/50p], [2K/60p] HD-SDI signal (YPBPR4:2:2 10-bit): SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p,1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p,1125(1080)/24sF, 1125(1080)/30p SD-SDI signal (YCBCR4:2:2 10-bit): SMPTE ST 259 compliant: 525i(480i), 625i(576i)
Scanning frequency \| HDMI/DVI-D	fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 25 - 162 MHz 525i (480i)4, 625i (576i)4, 525p (480p), 625p (576p), 750 (720)/60p,750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p,1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p,1125 (1080)/50p, VGA (640 x 480) - WUXGA (1920 x 1200) compatible with non-interlaced signals only
Scanning frequency \| RGB	fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 20 - 162 MHz
Scanning frequency \| YPBPR (YCBCR)	525i (480i): fH 15.73 kHz; fV 59.9 Hz, 625i (576i): fH 15.63 kHz; fV 59.9 Hz, 525p (480p): fH 31.50 kHz; fV 60 Hz, 625p (576p): fH 31.25 kHz; fV 50 Hz, 750 (720)/60p: fH 45.00 kHz; fV 60 Hz, 750 (720)/50p: fH 37.50 kHz; fV 50 Hz, 1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz, 1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz, 1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz, 1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz, 1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz, 1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz, 1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
Scanning frequency \| Video/S-Video	fH: 15.73 kHz, fV: 59.9 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift	Vertical: +50%, -16%(powered), Horizontal: +30%, -10% (When using the ET-DLE085/DLE105, +28%, -10%) (powered) NOTE: Optical axis shift function cannot be operated when used with the ET-DLE055. If using the ET-DLE030, the optical axis is fixed.
Installation	Ceiling/floor, front/rear, 360 degree free installation
Terminals \| SDI IN	BNC × 1, 3G-SDI signal: SMPTE ST 424 compliant HD-SDI signal: SMPTE ST 292 compliant SD-SDI signal: SMPTE ST 259 compliant
Terminals \| HDMI IN	HDMI 19-pin × 1, Deep Color, compatible with HDCP
Terminals \| DVI-D IN	DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP, for single link only
Terminals \| RGB 1 IN	BNC × 5
Terminals \| RGB 1 IN \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals \| RGB 1 IN \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| RGB 1 IN \| Y/C	Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Terminals \| RGB 1 IN \| Video	1.0Vp-p, 75 ohms
Terminals \| RGB 2 IN	D-sub HD 15-pin (female) × 1
Terminals \| RGB 2 IN \| R, G, B	R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals \| RGB 2 IN \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Terminals \| SERIAL/MULTI PROJECTOR SYNC IN	D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
Terminals \| SERIAL/MULTI PROJECTOR SYNC OUT	D-sub 9-pin (male) x 1 for link control
Terminals \| Remoter 1 In	M3 jack x 1 for wired remote control
Terminals \| Remoter 1 Out	M3 jack x 1 for link control (for wired remote control)
Terminals \| Remoter 2 In	D-sub 9-pin (female) x1 for external control (parallel)
Terminals \| LAN/DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compliant with PJLink™(Class 1) Deep Color, HDCP
Power cord length	3.0 m (9 ft 10 in)
Cabinet materials	Molded plastic
Dimensions (W x H x D)	PT-RZ970B/RZ970W: 498 x 2005 x 581mm (19-19/32 x 7-7/85 x 22-7/8in ) with supplied lens PT-RZ970LB/RZ970LW: 498 x 2005 x 538 mm (19-19/32 x 7-7/85 x 21-3/16in) without lens
Weight	PT-RZ970B/RZ970W: Approx. 23.2kg (51.1lbs) with supplied lens PT-RZ970LB/RZ970LW: Approx. 22.4kg (49.4lbs) without lens
Operation noise	41dB (37dB[QUIET1] / 35dB[QUIET2])
Operating temperature	0-45 °C (32-113 °F) * 6
Operating humidity	10%-80% (no condensation)
Note	1 When the STANDBY MODE is set to Eco, network functions such as power on over the LAN will not operate. 2 The value of the light output at the center region of the projected image is extracted based on the light output measurement method defined by the ISO/IEC 21118:2012 international standards. 3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. 4 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal). 5 with legs at shortest position. 6 Limits the luminance when used in locations from 0m to 2,700m (0ft to 8,858ft) above sea level at ambient temperatures of 35°C (95°F) or higher, or from 2,700m to 4,200m (8,858ft to 13,780ft) above sea level at ambient temperatures of 25°C (77°F) or higher.
Brightness	10.000 lumens (centre)/ 9.400 lumens
Technology	1-Chip DLP Laser
DLP™ chip \| Panel size	17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
DLP™ chip \| Display method	DLP™ chip × 1, DLP™ system
DLP™ chip \| Pixels	2,304,000 (1920 × 1200) × 1, total of 1,024,000 pixels

1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
2 Measured at center area of projector screen. Measurement method is in compliance with ISO/IEC 21118: 2012. Value is average of all products when shipped. May differ depending on actual unit.
