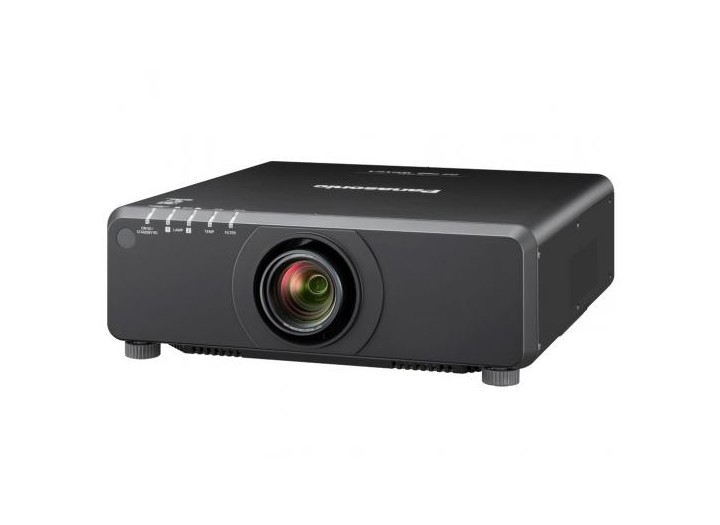

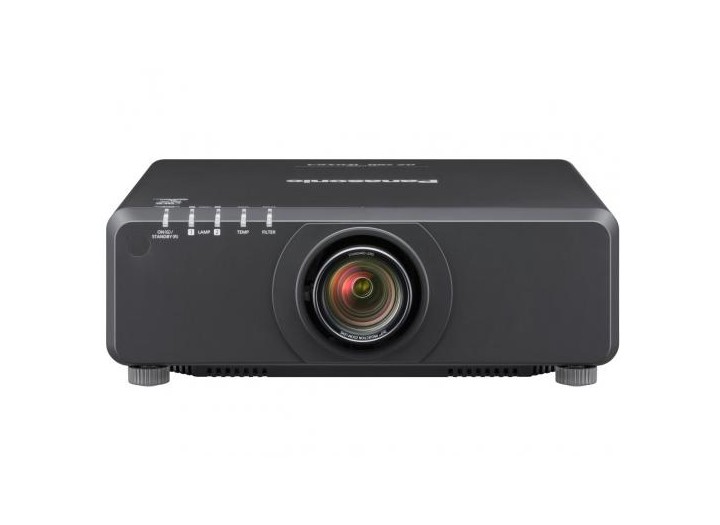

DLP PROJECTOR 1 DLP Projector PT-DW750BK
| Model | PT-DW750 |
|---|---|
| 주요사양 | 1-Chip DLP, 7000 lumens, WXGA |
| 주요사양 | Dual lamp system with up to 6000 hours lamp life (in eco mode). Lamp relay mode enabes 24/7 operation |
| 주요사양 | Dust-resistant optical engine allows filter-less design |
| 주요사양 | Multi-screen support including edge blending and colour matching function |
목록으로
본문
Detail view
| Power supply | 100-240 V AC, 9.0-4.0 A, 50/60 Hz |
| DLP™ chip | Panel size | mm (0.65 in) diagonal (16:10 aspect ratio) |
| DLP™ chip | Display method | DLP™ chip x 1, DLP™ system |
| DLP™ chip | Pixels | 1,024,000 (1,280 x 800) x 1, total of 1,024,000 pixels |
| LENS | PT-DW750W/DW750B Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm PT-DW750LW/DW750LB Optional powered zoom/focus lenses and fixed-focus lens |
| Lamp | 310 W UHM lamps (x 2) |
| Screen size | 1.27-15.24 m (50- 600 inches) *1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio) *2.54 - 8.89 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio) |
| Brightness | 7,000 lumens (dual lamp, LAMP MODE: NORMAL) |
| Center-to-corner uniformity | 90% |
| Contrast | 3,000:1 (full on/full off, in dynamic iris 3 mode) |
| Resolution | 1,280 x 800 pixels |
| Scanning frequency | HDMI/DVI-D | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz |
| Scanning frequency | RGB | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz |
| Scanning frequency | YPBPR (YCBCR) | 525i (480i): fH 15.75 kHz; fV 60 Hz, 625i (576i): fH 15.63 kHz; fV 50 Hz, 525p (480p): fH 31.50 kHz; fV 60 Hz, 625p (576p): fH 31.25 kHz; fV 50 Hz, 750 (720)/60p: fH 45.00 kHz; fV 60 Hz, 750 (720)/50p: fH 37.50 kHz; fV 50 Hz, 1125 (1035)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz, 1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz, 1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz, 1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz, 1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz, 1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz, 1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz |
| Optical axis shift | Vertical: -16% - +60% (powered), horizontal: -10% - +30% (powered) (-10% - +28% with the ET-DLE085/DLE105) NOTE: Optical axis shift function cannot be operated when used with the ET-DLE055. If using the ET-DLE030, the optical axis is fixed. |
| Keystone correction range | Vertical ±40°, horizontal: ±15° (Vertical: ±22° with the ET-DLE055/DLE085/DLE105), (Vertical: ±5° with the ET-DLE030) Curved correction (Geometric adjustment) 4 corner correction |
| Installation | Ceiling/floor, front/rear |
| Terminals | HDMI IN | HDMI 19-pin x 1, Deep Color, compatible with HDCP |
| Terminals | DVI-D IN | DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only |
| Terminals | RGB 1 IN | BNC x 5 |
| Terminals | RGB 1 IN | R, G, B | R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals | RGB 1 IN | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms |
| Terminals | RGB 1 IN | Video signal | 1.0 Vp-p, 75 ohms |
| Terminals | RGB 2 IN | D-sub HD 15-pin (female) x 1 |
| Terminals | RGB 2 IN | R, G, B | R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals | RGB 2 IN | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | Remoter 1 In | M3 jack x 1 for wired remote control |
| Terminals | Remoter 1 Out | M3 jack x 1 for link control |
| Terminals | Remoter 2 In | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | LAN/DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™ (class 1), Deep Color, compatible with HDCP, |
| Terminals | USB | DC OUT (5V/0.9A) |
| Power cord length | 3.0 m (9 ft 10 in) |
| Cabinet materials | Molded plastic (PT-DW750W/DW750LW : White) (PT-DW750B/DW750LB : Black) |
| Dimensions (W x H x D) | 498 x 175 x 521 mm (19-19/32 x 6-7/8 x 20-1/2 inches) (with supplied lens) 498 x 175 x 508 mm (19-19/32 x 6-7/8 x 20 inches) (without lens, with lens cover) 498 x 175 x 498 mm (19-19/32 x 6-7/8 x 19-19/32 inches) (without lens and lens cover) |
| Weight | Approx. 17.8 kg (39.2 lbs) (with supplied lens) Approx. 17.0 kg (37.5 lbs) (without lens) |
| Operating noise | 30 dB (dual lamp operation, LAMP MODE: NORMAL), 28 dB (dual lamp operation, LAMP MODE: ECO) |
| Operating temperature | 0-45 °C (32-113 °F) |
| Operating humidity | 10%-80% (no condensation) |
| Technology | 1-Chip DLP |
| Scanning frequency | Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Note | Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice. *1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal. *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *3 With legs at shortest position. *4 Average value. May differ depending on models. *5 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when the fan control is set to High Altitude mode (for altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level). Also, if the ambient temperature exceeds 40 °C (104 °F) (35 °C (95 °F) in High Altitude mode) when the projector is being used with Lamp Select set to Dual and Lamp Power set to High, the light output may be reduced approximately 20% to protect the projector. |
| Terminals | RGB 1 IN | S-Video signal | Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms |
| Power consumption | 790 W (810 VA) (0.3 W with STANDBY MODE set to ECO, 3 W with STANDBY MODE set to NORMAL) max. 2,696 BTU (without light output: 2,601 BTU) |
