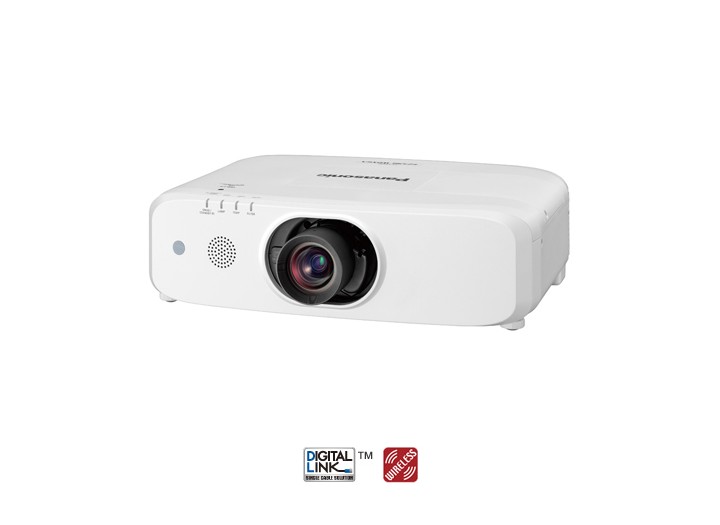

LCD PROJECTOR 3LCD Projector PT-EW650
| Model | PT-EW650 |
|---|---|
| 주요사양 | LCD, 5800 lumens, WXGA |
| 주요사양 | High brightness in compact and lightweight body |
| 주요사양 | Dust resistant cabinet and up to 15 000 hours maintenance free Eco Filter |
| 주요사양 | Powered with lens-shift and a wide range of optional lenses |
| 주요사양 | 10,000 |
목록으로
본문
Detail view
| Power supply | AC100 - 240V 5.3 - 2.1A 50Hz/60Hz |
| Power consumption | 461W |
| Power consumption | Standby Mode (Eco) | 0.5W, 0.3W (Taiwan) |
| Power consumption | Standby Mode (Normal) | 12W |
| Power consumption | Standby Mode (Normal and Audio monitor out) | 30W |
| BTU value | Max 1,573BTU |
| LCD panel | Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| LCD panel | Display method | Transparent LCD panel (x 3, R/G/B) |
| LCD panel | Drive method | Active matrix |
| LCD panel | Pixels | 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels |
| LENS | Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm |
| Lamp | 320 W UHM lamp Lamp replacement cycle 4,000 hours (lamp power: Normal), 5,000 hours (lamp power: Eco) This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. |
| Screen size | 1.02- 10.16 m (40-400 inches) (16:10 aspect ratio) |
| Brightness | 5,800 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off) |
| Center-to-corner uniformity | 90% |
| Contrast | 10,000:1 (Lamp power: Normal, Dynamic mode, Iris on, Daylight View:off, Auto Power Save:off) |
| Resolution | 1,280 x 800 pixels (WXGA) |
| Scanning frequency | HDMI/DIGITAL LINK | fH: 15- 90kHz, fV: 24 - 100Hz, dot clock: 25 - 162 MHz |
| Scanning frequency | RGB | fH: 15- 90kHz, fV: 24 - 100Hz, dot clock: 162 MHz or lower |
| Scanning frequency | YPBPR (YCBCR) | 525i (480i): fH15.73 kHz; fV59.94 Hz, 625i (576i): fH15.63 kHz; fV50 Hz, 525p (480p): fH31.47 kHz; fV60 Hz, 625p (576p): fH31.25 kHz; fV50 Hz, 750 (720)/60p: fH45.00 kHz; fV60 Hz, 750 (720)/50p: fH37.50 kHz; fV50 Hz, 1125 (1080)/60i: fH33.75 kHz; fV60 Hz, 1125 (1080)/50i: fH28.13 kHz; fV50 Hz, 1125 (1080)/25p: fH28.13 kHz; fV25 Hz, 1125 (1080)/24p: fH27.00 kHz; fV24 Hz, 1125 (1080)/24sF: fH27.00 kHz; fV48 Hz, 1125 (1080)/30p: fH33.75 kHz; fV30 Hz, 1125 (1080)/60p: fH67.50 kHz; fV60 Hz, 1125 (1080)/50p: fH56.25 kHz; fV50 Hz |
| Scanning frequency | Video/S-Video | fH: 15.75 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Keystone correction range | Vertical ±35°, horizontal ±35° |
| Optical axis shift | Vertical: ±60% (powered) Horizontal: ±30% (powered ) |
| Installation | Ceiling/ oor, front/rear |
| Speaker | 4.0 cm (1-9/16 in) (monaural) x 1 |
| Terminals | HDMI In 1/HDMI In 2 | HDMI 19-Pin x2 | Deep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| Terminals | DIGITAL LINK IN | RJ-45 x 1 (HDBaseT™ compatible), Deep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| Terminals | RGB 1 IN | BNC x 5 |
| Terminals | RGB 1 IN | R, G, B | 0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) H D/VD, SYNC: TTL, high impedance, positive/negative automatic |
| Terminals | RGB 1 IN | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PBPR(CBCR): 0.7 Vp-p, 75 ohms |
| Terminals | RGB 1 IN | Y/C | Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms |
| Terminals | RGB 2 IN | D-sub HD 15-pin (female) x 1 |
| Terminals | RGB 2 IN | R, G, B | 0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) H D/VD, SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
| Terminals | RGB 2 IN | Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PBPR(CBCR): 0.7 Vp-p, 75 ohms |
| Terminals | VIDEO IN | Pin jack x 1, 1.0 Vp-p, 75 ohms |
| Terminals | MONITOR OUT | D-sub HD 15-pin (female) x 1 |
| Terminals | MONITOR OUT | R, G, B | 0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) H D/VD, SYNC: TTL, high impedance, positive/negative automatic |
| Terminals | MONITOR OUT | Y, PB, PR | Y: 1.0 Vp-p (including sync signal), PBPR: 0.7 Vp-p, 75 ohms |
| Terminals | AUDIO IN 1/AUDIO IN 2 | M3 x 2, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals | AUDIO IN 3 | Pin jack(L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more |
| Terminals | VARIABLE AUDIO OUT | M3 x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 2.2 kilohms or less |
| Terminals | SERIAL IN | D-sub 9 p x 1, for external control (RS-232C compliant) |
| Terminals | Remoter 1 In | D-sub 9-pin (female) x1, for external control (parallel) |
| Terminals | Remoter 2 In | M3 jack x 1 for wired remote control |
| Terminals | LAN | RJ-45 x 1 for network connection 10Base-T/100Base-TX, compatible with Art-Net, PJLink™(Class 1) |
| Terminals | WIRELESS | USB Type A x 1, for wireless projection with optional dongle (ET-WML100) |
| Terminals | DC OUT | USB Type A x 1, for power supply (DC5 V, max 900 mA) |
| Power cord length | 3.0 m (9 ft10 in) |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) | 498 x 145 x 398.3mm (19-19/32 x 5-11/16*3 x 15-11/16 in ) with supplied lens |
| Weight | Approx. 8.4kg (18.5lbs) |
| Operating noise | 29 dB (Silent), 35 dB (Normal/Eco) |
| Operating environment | Operating temperature | 0-45 °C (32-113 °F) |
| Operating environment | Operating humidity | 20%-80% (no condensation) |
| Technology | LCD |
