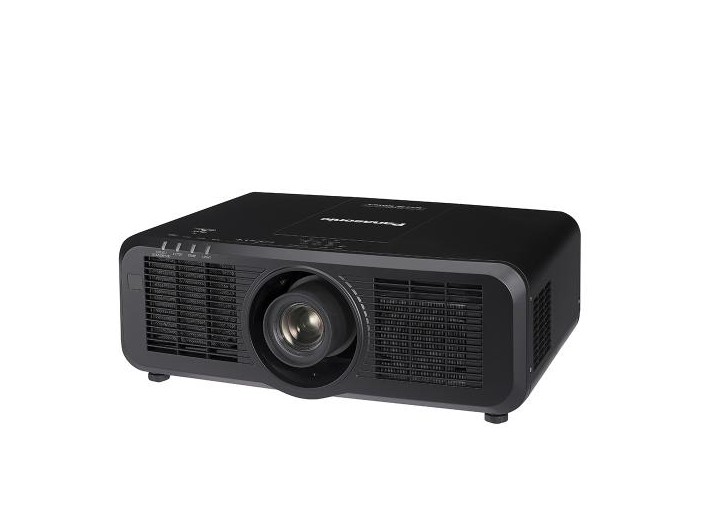

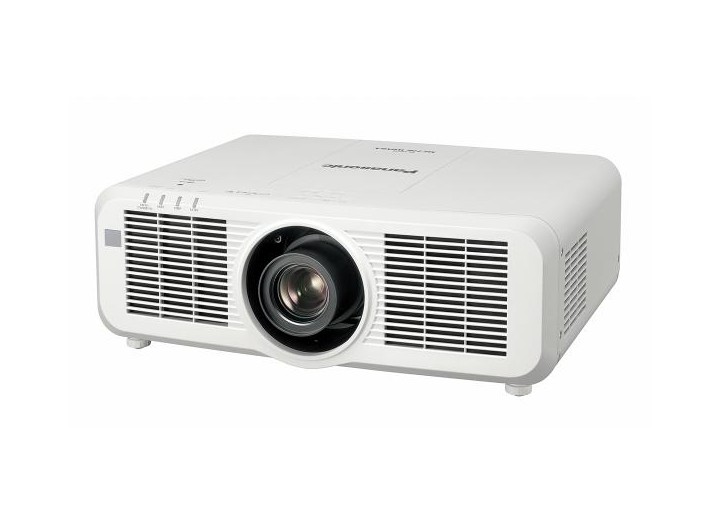

LASER PROJECTOR 3LCD Laser Projector PT-MZ770
| Model | PT-MZ770 |
|---|---|
| 주요사양 | Laser LCD, 8,000 lumens, WUXGA |
| 주요사양 | Compact and lightweight body, designed with ultra-low noise operation |
| 주요사양 | Exchangeable lenses (compatible with PT-EZ770 series lenses) for flexible installation in any meeting- or classroom |
| 주요사양 | Packed with a wide range of collaboration technologies such as 5 Ghz wireless projection from multiple devices, secure streaming & networking |
| 주요사양 | Long lasting laser light source and low-maintenance design provide high brightness and superb image quality |
목록으로
- PREVIOUS3LCD Projector PT-EW650
- NEXT1 DLP Projector PT-DZ870E
본문
Detail view
| Brightness | 8,000 lumens |
| Resolution | WUXGA |
| Technology | Laser LCD |
| LCD panel | Panel size (mm) | 19.3 mm diagonal (16:10 aspect ratio) |
| LCD panel | Panel size (inch) | 0.76 inch diagonal (16:10 aspect ratio) |
| LCD panel | Display method | Transparent LCD panel (x 3, R/G/B) |
| LCD panel | Drive method | Active matrix |
| LCD panel | Pixels | 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels |
| LENS | PT-MZ770/MW730: Powered zoom (throw ratio 1.6-2.8 :1), F = 1.7-2.3, f = 26.8-45.5 mm PT-MZ770L/MW730L: Optional powered zoom/focus lenses |
| Light source | Laser diode (Class 1) (Class 3R for US models) |
| Screen size (diagonal) (mm) | 1.02-10.16 m, 16:10 aspect ratio 1.52-10.16 m with the ET-ELW22, 16:10 aspect ratio |
| Screen size (diagonal) (inch) | 40-400 in, 16:10 aspect ratio 60-400 in with the ET-ELW22, 16:10 aspect ratio |
| Brightness*1 | 8,000 lm |
| Center-to-corner uniformity*1 | 90 % |
| Contrast | 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2) |
| Resolution | 1920 x 1200 pixels |
| Optical axis shift | Vertical (from center of screen) | ±67 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max. ±60 %, ELW21; cannot use optical axis shift function) |
| Optical axis shift | Horizontal (from center of screen) | ±35 % (powered) (for supplied lens [ELS20]/ELW20/ELT20/ELT21, ELW22; max ±30%, ELW21; cannot use optical axis shift function) |
| Keystone correction range*2 | Vertical: ±25°, Horizontal: ±30° |
| Installation | Horizontal/Vertical, free 360-degree installation |
| Terminals | HDMI IN | HDMI 19-pin x 2 (Deep Color, compatible with HDCP), audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
| Terminals | RGB 1 IN | BNC x 5 (RGB or YPBPR/YCBCR x 1) |
| Terminals | RGB 2 IN | D-sub HD 15-pin (female) x 1 (compatible with component input) |
| Terminals | VIDEO IN | Pin jack x 1 (composite video) |
| Terminals | MONITOR OUT | D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR) |
| Terminals | AUDIO IN | Pin jack x 2 (L-R), M3 stereo mini jack x 2 |
| Terminals | AUDIO OUT | M3 stereo mini-jack x 1 for output |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | REMOTE 1 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | REMOTE 2 IN | M3 x 1 for wired remote control |
| Terminals | LAN | RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2) |
| Terminals | DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color |
| Terminals | Memory Viewer/Pairing | USB (Type A) x 1 |
| Terminals | DC OUT | USB (Type A) x 1, DC 5 V/2 A*3 |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | TBD |
| Built-in Speaker | 10 W (monaural) |
| Operating noise*1 | 35 dB (NORMAL/ECO Mode), TBD (Quiet Mode) |
| Filter | x 1, estimated maintenance time: approx. 20,000 hours*4 |
| Cabinet materials | Molded plastic (PC + ABS) |
| Dimensions (W x H x D) (mm) | PT-MZ770/MW730: 560 x 205*5 x 443 mm (with supplied lens) PT-MZ770L/MW730L: 560 x 205*5 x 428 mm (without lens) |
| Dimensions (W x H x D) (inch) | PT-MZ770/MW730: 22 1/16 x 8 1/16 *5 x 17 7/16 inch (with supplied lens) PT-MZ770L/MW730L: 22 1/16 x 8 1/16 *5 x 16 27/32 inch (without lens) |
| Weight (kg)*6 | PT-MZ770/MW730: Approximately 17.1 kg (with supplied lens) or less PT-MZ770L/MW730L: Approximately 16.3 kg (without lens) |
| Weight (lbs.)*6 | PT-MZ770/MW730: Approximately 37 lbs (with supplied lens) or less PT-MZ770L/MW730L: Approximately 35.7 lbs (without lens) |
| Operating environment (℃/M) | Operating temperature: 0 °C- 45 °C*7, operating humidity: 20 %-80 % (no condensation) |
| Operating environment (°F/Feet) | Operating temperature: 32 °F -113 °F*7, operating humidity: 20 %-80 % (no condensation) |
| Applicable software/application | Wireless Manager for Windows/Mac, Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control, Plug and Share, Wireless Projector Apps for iOS/Android™ |
| Note | Note: PT-MZ770L and PT-MW730L deliver the same performance as PT-MZ770 and PT-MW730 but respectively come without a lens. *1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *2 With supplied lens. Value differs when correction for both directions is operated. *3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. *4 Under conditions with 0.15 mg/m3 of particulate matter (based on tests by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE], and the Japanese Building Maintenance Association). Estimated maintenance time varies depending on environment. *5 With legs at shortest position. *6 Average value. May differ depending on models. *7 Brightness is limited at operating temperatures higher than 36 °C (96 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. |
