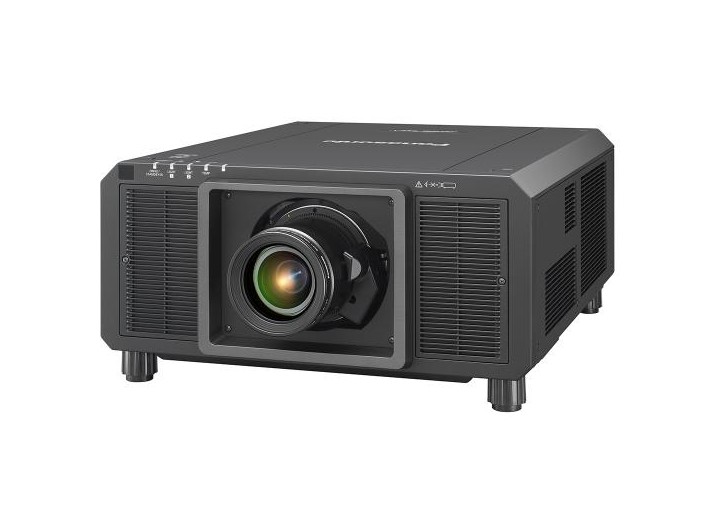

LASER PROJECTOR 3 DLP Laser Projector PT-RQ22KU
| Model | PT-RQ22KU |
|---|---|
| 주요사양 | Laser 3-chip DLP, 21,000 center lumens, 4K+ |
| 주요사양 | Lamp-free laser projection with dust resistant liquid cooling system with 20,000 hours of free maintenance |
| 주요사양 | 5K pixel performance with a quad pixel drive system on a WQXGA chipse |
| 주요사양 | 240Hz high frame rate for superb and sharp motion pictures and a 20,000 |
| 주요사양 | Geometric Manager Pro, colour matching and multiple screens edge blending, Exchangeable lens, 24/7 operation, geometric adjustment, 360° flexible installation |
목록으로
- PREVIOUS1 DLP Projector PT-DZ870E
- NEXT다음상품이 없습니다.
본문
Detail view
| Brightness | 21,000 lm (Center)*2 / 20,000 lm*3 |
| Resolution | 4K+ (5120 x 3200) (Quad Pixel Drive: ON) |
| Technology | Laser 3-chip DLP |
| DLP™ chip | Panel size (mm) | 22.9 mm diagonal (16:10 aspect ratio) |
| DLP™ chip | Panel size (inch) | 0.9 inch diagonal (16:10 aspect ratio) |
| DLP™ chip | Display method | DLP™ chip x 3, DLP™ projection system |
| DLP™ chip | Pixels | 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON, 4,096,000 (2560 x 1600) x 3, total of 12,288,000 pixels when Quad Pixel Drive set to OFF |
| Refresh Rate | 240 Hz*1 |
| LENS | Optional (no lens included with this model) |
| Light source | Laser diodes (Laser class: Class 1) (Class 3R for US models), Light source life: 20,000 hours (NORMAL mode, brightness decreases to approx. 50 %) |
| Screen size (diagonal) (mm) | 1.78-25.4 m with 16:10 aspect ratio 1.78-15.24 m with the ET-D75LE8 / ET-D3LET80, 16:10 aspect ratio 3.05-15.24 m with the ET-D75LE95, 16:10 aspect ratio |
| Screen size (diagonal) (inch) | 70-1,000 inch with 16:10 aspect ratio 70-600 inch with the ET-D75LE8 / ET-D3LET80, 16:10 aspect ratio 120-600 inch with the ET-D75LE95, 16:10 aspect ratio |
| Center-to-corner uniformity*3 | 90 % |
| Contrast*3 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Optical axis shift*5 | Vertical (from center of screen) | ±59 % (±56 % with ET-D75LE6 / ET-D3LEW60, +69 % - +84 % with ET-D75LE95) (powered) |
| Optical axis shift*5 | Horizontal (from center of screen) | ±29 % (±19 % with ET-D75LE6 / ET-D3LEW60, ±21 % with ET-D75LE95) (powered) |
| Keystone correction range | Vertical: ±40° (± 22° with ET-D75LE50 / ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95), Horizontal: ±15° (0° with ET-D75LE95) |
| Keystone correction range with optional Upgrade Kit ET-UK20 | Vertical: ±45° (± 40° with ET-D75LE10 / ET-D3LEW10, ET-D75LE20 / ET-D3LES20, ±22° with ET-D75LE50 / ET-D3LEW50, ±28° with ET-D75LE6 / ET-D3LEW60, +5° with ET-D75LE95) Horizontal: ±40° (±15° with ET-D75LE50 / ET-D3LEW50, ET-D75LE6 / ET-D3LEW60, ET-D75LE10 / ET-D3LEW10, 0° with ET-D75LE95), Up to a total of ±30° during simultaneous horizontal and vertical correction |
| Installation | Horizontal/vertical, free 360-degree installation |
| Terminals | SDI 1 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 1), Quad-link 3G-SDI (Link 1) |
| Terminals | SDI 2 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-B), Dual-link 3G-SDI (Link 2), Quad-link HD-SDI (Link 2), Quad-link 3G-SDI (Link 2) |
| Terminals | SDI 3 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-A), Dual-link 3G-SDI (Link 1), Quad-link HD-SDI (Link 3), Quad-link 3G-SDI (Link 3) |
| Terminals | SDI 4 IN | BNC x 1: 3G/HD/SD-SDI input, Dual-link HD-SDI (Link-B), Dual-link 3G-SDI (Link 2), Quad-link HD-SDI (Link 4), Quad-link 3G-SDI (Link 4) |
| Terminals | MULTI PROJECTOR SYNC IN | BNC x 1 |
| Terminals | MULTI PROJECTOR SYNC OUT | BNC x 1 |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | SERIAL OUT | D-sub 9-pin (male) x 1 for link control |
| Terminals | REMOTE 1 IN | M3 x 1 for wired remote control, link control |
| Terminals | REMOTE 1 OUT | M3 x 1 for wired remote control, link control |
| Terminals | REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | LAN/DIGITAL LINK | RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP2.2 |
| Terminals | DC OUT | USB Type A x 2 (for power supply DC 5V total of 2 A) |
| Terminals | Expansion Slot | SLOT 1 / SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible |
| Power supply | AC 200-240 V, 50/60 Hz; AC 100-200 V, 50/60 Hz (brightness is restricted with lower voltage) |
| Power consumption | TBD |
| Cabinet materials | Molded plastic |
| Dimensions (W x H x D) (mm) | 598 x 270 x 725 mm (not including protruding parts) |
| Dimensions (W x H x D) (inch) | 23 17/32 inch x 10 5/8 inch x 28 17/32 inch (not including protruding parts) |
| Weight (kg)*6 | Approx. 55 kg |
| Weight (lbs.)*6 | Approx. 122 lbs |
| Operating noise*3 | TBD |
| Operating environment (℃/M) | Operating temperature: 0-45 °C *6, operating humidity: 10-80 % (no condensation) |
