ETC Audio Mux HD-SDI Distributor
| Model | ez-Distributor VD12 |
|---|---|
| 제조사 | 루먼텍(Lumantek) |
| 주요사양 | 2채널의 HDMI와 12채널의 SDI 출력 |
| 주요사양 | XLR 타입의 외부 오디오를 Embed 및 De-embed 가능 |
| 주요사양 | 전면 LCD 스크린 |
| 주요사양 | 16개의 채널 1RU 크기 |
| 주요사양 | HDMI, SDI 각 1채널 입력 |
목록으로
본문
Detail view

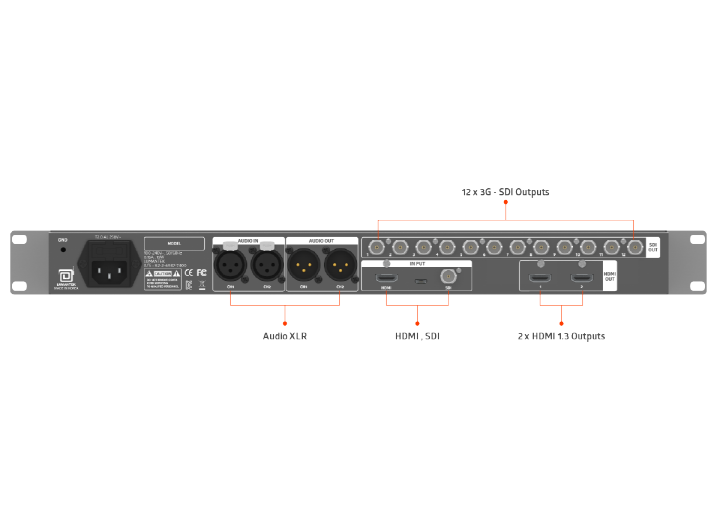

| Data Input | SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x1 |
| HDMI Video Input: SD/HD/3G x1 | |
| Video Formats | - 720x480i@59.94/60 |
| - 720x576i@50 | |
| - 1280x720p@50/59.94/60 | |
| - 1920x1080i@50/59.94/60 | |
| - 1920x1080p@23.94/24/25/29.97/30 | |
| - 1920x1080p@50/59.94/60 | |
| Audio Input | XLR (Female) x2 |
| Data Output | SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x12 |
| HDMI Video Output: SD/HD/3G x2 | |
| Video Formats | - 720x480i@59.94/60 |
| - 720x576i@50 | |
| - 1280x720p@50/59.94/60 | |
| - 1920x1080i@50/59.94/60 | |
| - 1920x1080p@23.94/24/25/29.97/30 | |
| - 1920x1080p@50/59.94/60 | |
| Audio Output | XLR (Male) x2 |
| Connections | USB 2.0 : Firmware Update |

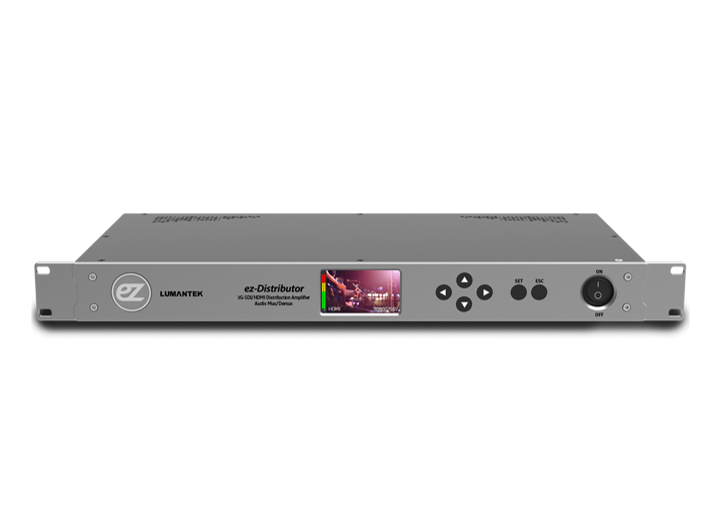

| Display | 2.7 inch TFT LCD : Input Video Display(SDI or HDMI), Audio Level Meter Display, Input Video Resolution Display |
| Electrical | Power Input: 100~240VAC @ 50/60Hz |
| Power Consumption: 15W (max.) | |
| Operation Temperature: 32 to 113 ˚F / 0 to 45 ℃ | |
| Physical | Dimension: 44(H) X 478(W) X 226(D) (mm) |
| Weight: 6.61lb |
