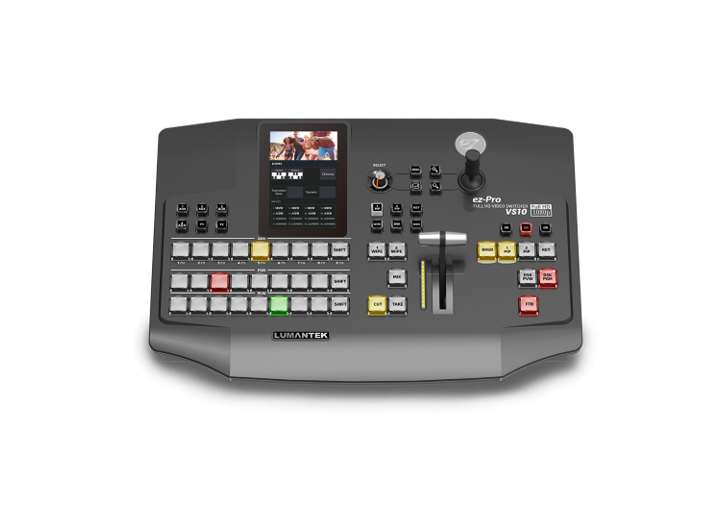

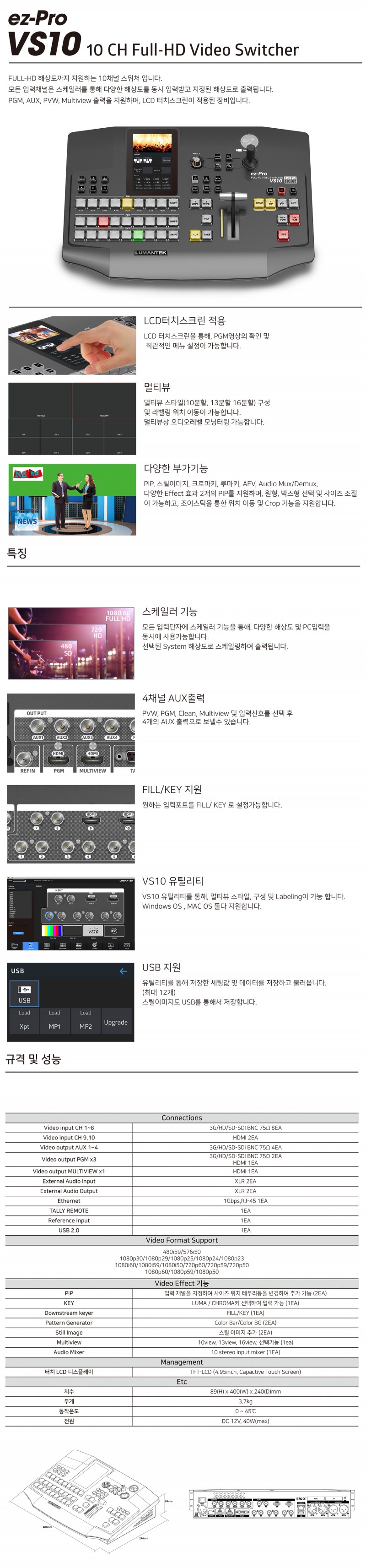

Connections

​

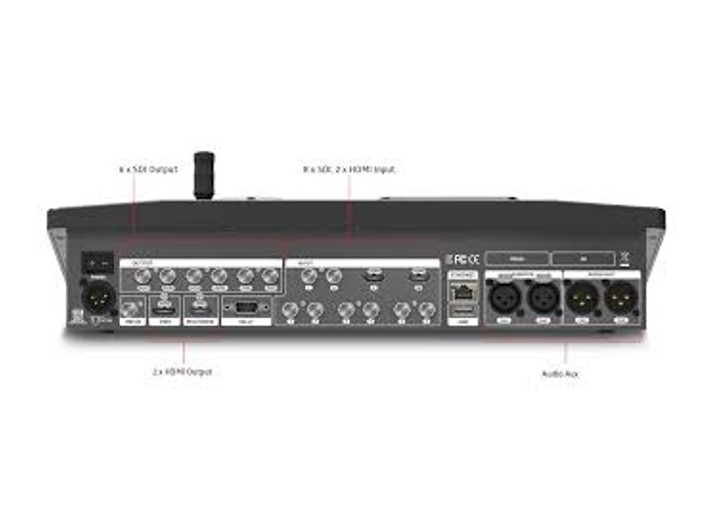

· 3G/HD/SD-SDI Input : BNC 75Ω 8ea (with Scaler)

· HDMI Input : 2ea (with Scaler)

· 3G/HD/SD-SDI Output : BNC 75Ω 6ea (AUX1/AUX2/AUX3/AUX4/PGMx2)

· HDMI Output : 2ea (PGM/MULTIVIEW)

· Remote: 1ea · Reference Input: 1ea · Ethernet: 1ea(1Gbps, RJ-45)

· USB2.0: 1ea · External Analog Audio Input : XLR 2ea

· External Analog Audio Output : XLR 2ea

· DC 12V: 1ea

​

Vdeo Format Support

​

· 480i59/576i50 1080p30/1080p29/1080p25/1080p24/1080p23 1080i60/1080i59/1080i50/720p60/720p59/720p50 1080p60/1080p59/1080p50

Video Switcher

​

· Mix & Effect: 1ea

· PIP: 2ea · KEY: 1ea(LUMA/CHROMA)

· Downstream Keyer: 1ea(FILL/KEY)

· Pattern Generator: 2ea(Color Bar/Color BG)

· Media: 2ea

· Multiview: 8view/13view/16view 1ea

· Audio Mixer: 10 stereo input mixer 1ea

Management

​

· TFT-LCD (4.98inch, Capactive Touch Screen)

Physical

​

· Dimension: 89(H)X400(W)X294(D) (mm, Excluding Connector)

· Weight: 3.7kg (8.15lbs)

Environmental

​

· Operating Temperature: 0 ~ 45℃

Power Requirement

​

· Power Input: DC 12V

· Power Consumption: 40W(max)
