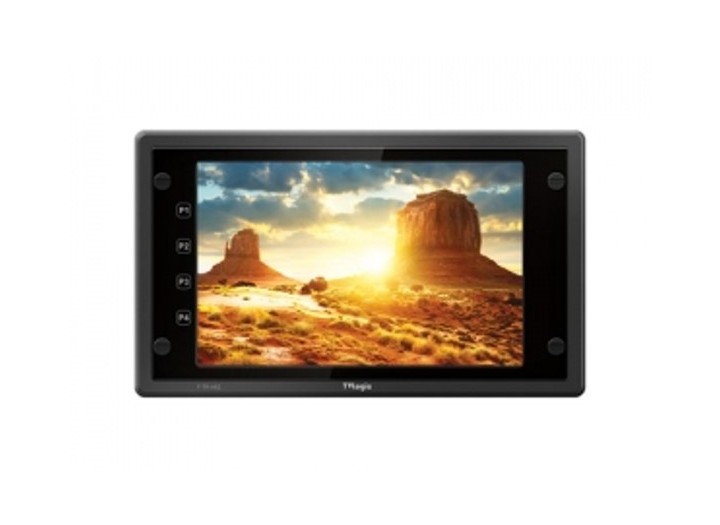

MONITOR 초고휘도 7인치 필드 모니터
| Model | F-7H mk2 |
|---|---|
| 제조사 | 티브이로직(TVLogic) |
| 주요사양 | 4개의 프리셋 키 지원 |
| 주요사양 | 180도 자동 회전 디스플레이 |
| 주요사양 | HDMI, SDI Cross Conversion |
| 주요사양 | HDR(PQ/HLG/Slog) 커브 지원 |
| 주요사양 | USB를 통한 커스텀 3D LUT Import/Export |
목록으로
- PREVIOUSSDI/HDMI 무선 송수신기
- NEXTLive Production Swither
본문
Detail view
Display Spec.
| Size | 7" |
| Resolution | 1920 X 1080 (16:9) |
| Pixe Pitch | 0.078(H)x0.078(V)mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 3,600cd/m2 |
| Contrast Ratio | 1,200:1 |
| Display Area | 151.2(H)×94.5(V) mm |

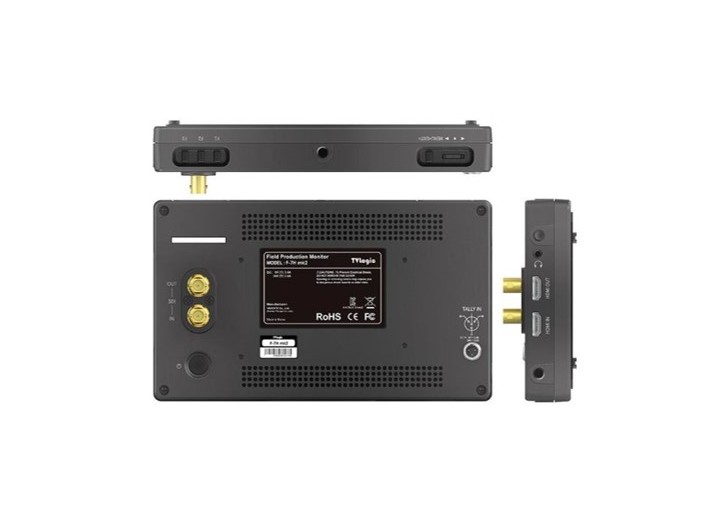

Input
| 1 X BNC | 3G-SDI A Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack) |
FPGA Functions
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
Closed Caption
Calibration
| , 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| USB | Firmware update by USB cable | Firmware update by USB memory stick |
| Ethernet | ||
| Conversion | HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI, |
Options
| Battery Bracket, Camera Mount Ball Head, Carring Case, D-Tap Cable, External Acrylic Filter, Gold Mount, V-Mount |
