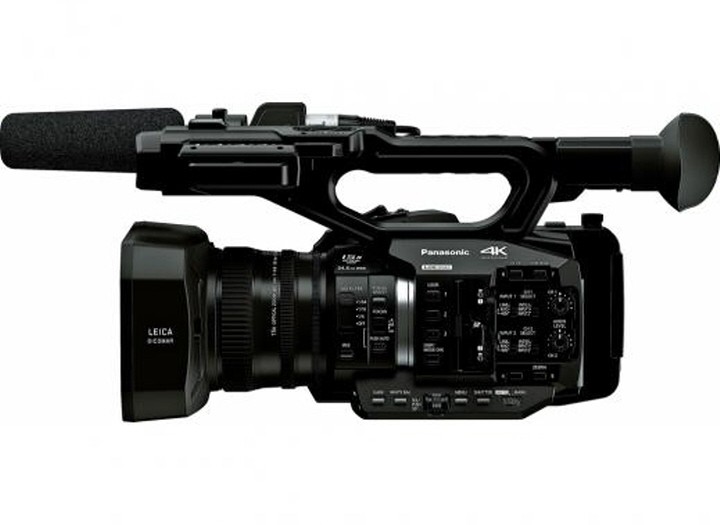

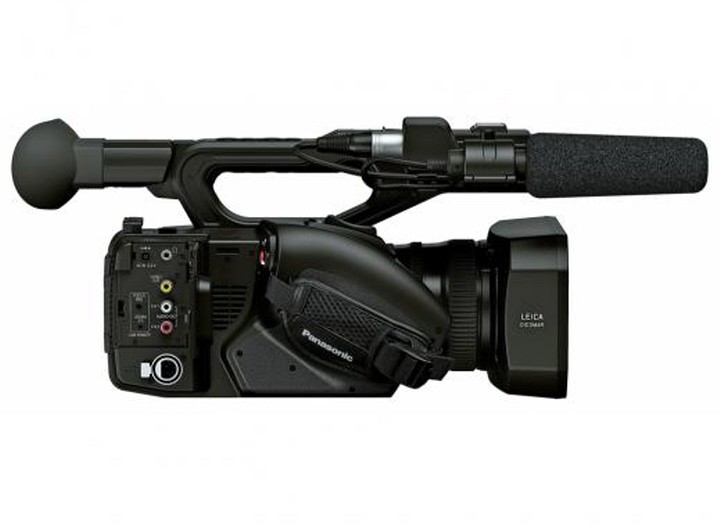

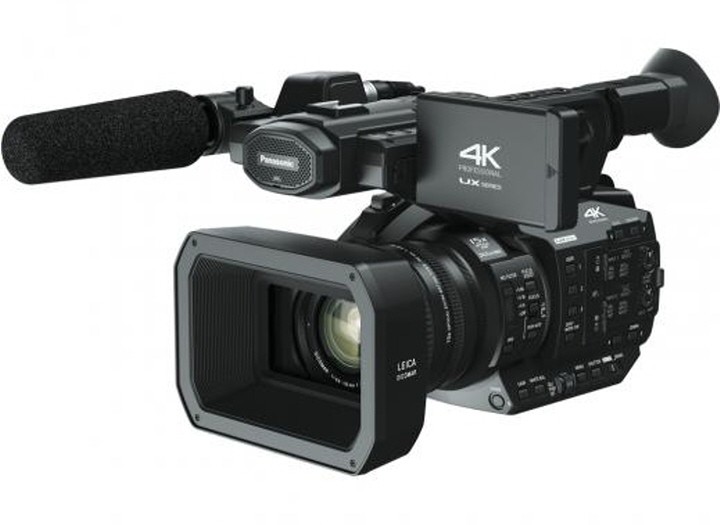

    CAMERA 4K/HD Handheld Camcorder

    Model AG-UX90
    주요사양 Dual SD Card Slots
    주요사양 15x Optical Zoom with O.I.S.
    주요사양 24.5 mm Integrated Wide Lens
    주요사양 Dual SD Card Slots

    목록으로

    본문

    Detail view
    General-
    PowerDC 7.28 V (when the battery is used)
    DC 12 V (when the AC adaptor is used)
    Power consumption12.2 W (when the LCD monitor is used)
    Operating temperature0 °C to 40 °C (32 °F to 104 °F)
    Operating humidity10 % to 80 % (no condensation)
    WeightBody: Approx. 1.9 kg (4.19 lb)
    (body only, excluding lens hood, battery, and accessories)
    Shooting: Approx. 2.3 kg (5.07 lb)
    (including lens hood, battery, and eye cup)
    Dimensions169 mm (W) x 195 mm (H) x 340 mm (D)
    (6-21/32 inches x 7-11/16 inches x 13-3/8 inches)
    (excluding protrusion and eye cup)
    169 mm (W) x 195 mm (H) x 382 mm(D)
    (6-21/32 inches x 7-11/16 inches x 15-1/32 inches)
    (including eye cup, excluding protrusion)
    Camera Unit-
    Pickup Devices1.0-type MOS solid state image sensor
    Effective Pixels17.78 megapixel: FHD 59.94p/29.97p/23.98p
    8.59 megapixel: UHD 29.97p/23.98p
    LENSOptical image stabilizer lens,
    optical 15x motorized zoom
    F2.8 to F4.5 (f=8.8 mm to 132 mm)
    35 mm equivalent:
    f=24.5 mm to 367.5 mm: FHD 59.94p/29.97p/23.98p
    f=35.4 mm to 531.0 mm: UHD 29.97p/23.98p
    Filter Diameter: 67 mm
    ND Filter: 4 Positions (OFF, 1/4, 1/16, 1/64)
    Shortest Shooting Distance (M.O.D.):
    Approx. 1.0 m from the front lens
    Gain settingL/M/H selector switch (toggle switch)
    Standard mode: 0 dB to 30 dB (Adjustable in 1 dB steps)
    (Automatic setting can be assigned to L/M/H)
    Extended ON: -3 dB to 30 dB (Adjustable in 1 dB steps)
    (Automatic setting can be assigned to L/M/H)
    33 dB and 36 dB switched
    (when assigning [S.GAIN] to the USER button)
    Color Temperature SettingATW, ATW LOCK, Ach, Bch,
    preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
    Shutter Speed60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec.,
    1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec.,
    1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec.,
    1/3000 sec., 1/4000 sec., 1/8000 sec.
    30p mode: 1/30 sec., 1/50 sec., 1/60 sec., 1/100 sec.,
    1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec.,
    1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec.,
    1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
    24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec.,
    1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec.,
    1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
    1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec.,
    1/8000 sec.
    Shutter Speed (Slow Shutter)60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
    30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
    24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
    VFR Recording Frame Rate30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60 (fps)
    24p mode: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 (fps)
    Minimum Subject Illumination1.3 lx
    (F2.8, Super Gain 36dB, Manual slow shutter 1/30s)
    DIGITAL ZOOM2x/5x/10x,
    i.Zoom: max. 25x (optical zoom + digital zoom)
    Lens HoodHood with lens cover
    Memory Card Recorder-
    Recording Media*1SDHC memory card (4 GB to 32 GB),
    SDXC memory card (48 GB to 128 GB)
    UHS-I supported
    Recording slotSlot x 2
    System format59.94 Hz
    Recording FormatMOV, MP4, AVCHD
    Recording ModePlease see page 1 for the Recording Format table.
    Recording TimePlease see below for the Recording Time table.
    2 Slot FunctionsRelay, Simultaneous
    Still Picture Recording ModeJPEG (DCF/Exif2.2)
    Still picture recordingMotion Picture Playback:
    8.3 M: 3840 x 2160 (16:9),
    2.1 M: 1920 x 1080 (16:9),
    0.9 M: 1280 x 720 (16:9)
    Digital Video-
    Video Signal for External Output8 bit 4:2:2
    Recording video signal8 bit 4:2:0
    Video Compression FormatMPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
    Digital Audio-
    Sampling Frequency48 kHz/16 bit 2 ch
    Audio Signal FormatLPCM (MOV/MP4), Dolby Digital (AVCHD)
    Headroom12 dB
    Video input/output-
    VIDEO OUTPUTVIDEO OUT connector x 1
    HDMIType A connector x 1, VIERA Link not supported
    Output format: 2160/29.97p/23.98p,
    1080/59.94p/29.97p/23.98p/59.94i,
    720/59.94p, 480/59.94p
    AUDIO INPUT-
    Built-in microphoneStereo microphone
    XLR InputXLR (3-pin) x 2 (INPUT1, INPUT2)
    high impedance, LINE/MIC/MIC+48V (switchable SW)
    LINE: +4 dBu/0 dBu (switchable menu)
    MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
    AUDIO OUTPUT-
    HDMI (Audio Output)2 ch (LPCM)
    Audio OUTAUDIO OUT: AUDIO OUT x 2
    Headphone3.5 mm diameter stereo mini jack x 1
    Speaker20 mm diameter, round x 1
    OTHER INPUT/OUTPUT-
    Camera Remote2.5 mm diameter super mini jack x1 (ZOOM, S/S)
    3.5 mm diameter mini jack x1 (FOCUS, IRIS)
    USB 3.0 (Host)Standard-A connector,9-pin, external media device connection*2, bus power supported
    USB 3.0 (Device)Micro-B connector, 10-pin,
    Mass storage function (read only)
    DC IN 12VDC 12 V (11.4 V to 12.6 V) EIAJ Type4
    Monitor/Viewfinder-
    LCD monitor3.5-type LCD monitor, Approx. 1,150,000 dots
    View Finder0.24-type EVF, Approx. 1,560,000 dots equivalent
    Included accessoriesBattery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, Microphone holder, Screw for microphone holder (12 mm), AC cable x 2, Eye cup, Lens hood, INPUT terminal cap, Operating instructions
    Note*1: An SD memory card with a capacity of UHS Speed Class 3 (U3) is required to shoot
    videos with a bit rate of 100 Mbps or higher.
    *2: External media devices with a capacity of below 32 GB or a capacity above 2 TB
    cannot be used.
