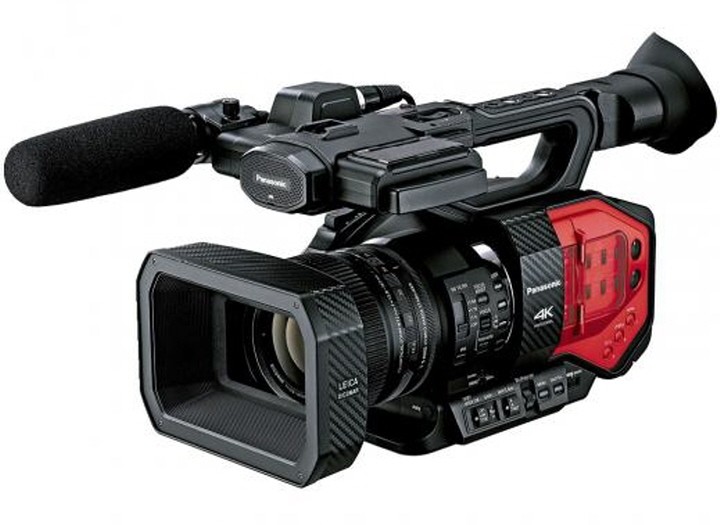

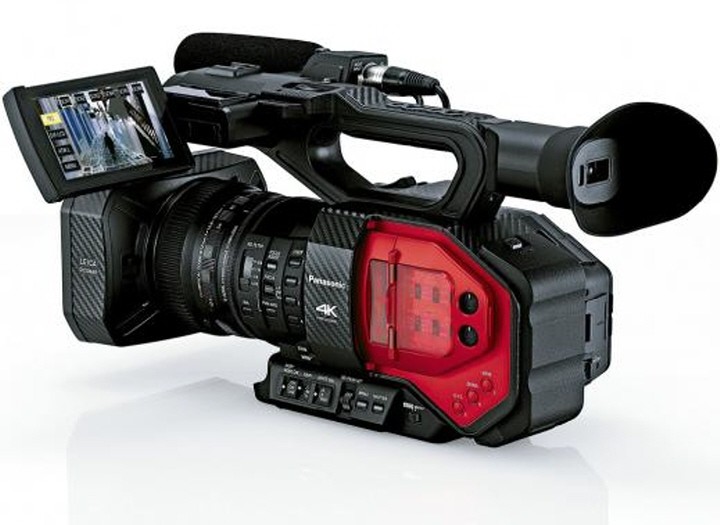

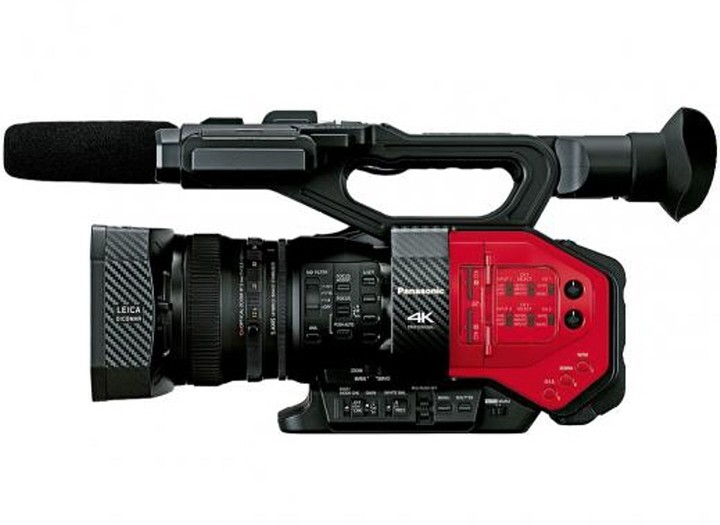

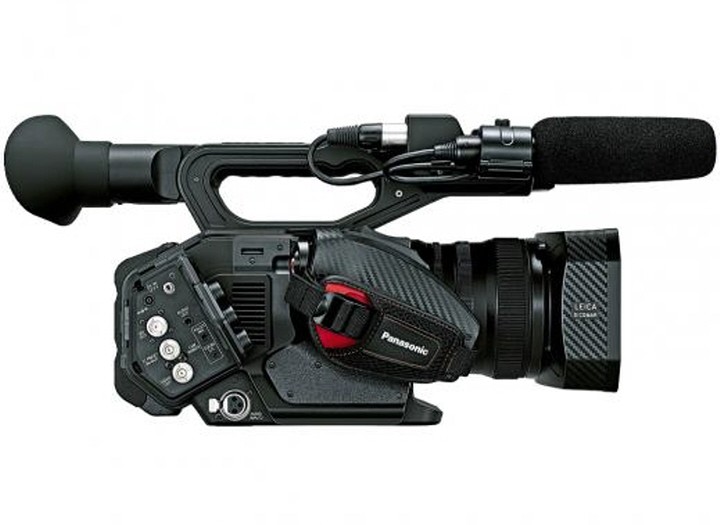

    CAMERA 4K/HD Handheld Camcorder

    Model AG-DVX200
    Lens 4/3-type large format, 4K/60p camcorder to feature an integrated zoom lens
    Frame Full-HD (1920 x 1080) from 2-120fps

    목록으로

    본문

    Detail view
    WeightApprox. 2.7 kg (5.95 lb) (body only, excluding lens hood, battery, and accessories)
    Approx. 3.1 kg (6.84 lb) (including lens hood, battery, and eye cup)
    PowerDC 7.2 V (when the battery is used)
    DC 12 V (when the AC adaptor is used)
    Operating temperature0 °C to 40 °C (32 °F to 104 °F)
    Power consumption21.7 W
    Operating humidity10 % RH to 80 % RH (no condensation)
    LENSOptical image stabilizer lens, optical 13x motorized zoom
    F2.8 to F4.5 (f=12.8 mm to 167 mm)
    35 mm equivalent:
    FHD: 28.0 mm to 365.3 mm
    UHD 59.94p/50.00p: 37.2 mm to 485.1 mm
    UHD 29.97p/25.00p: 30.6 mm to 398.7 mm
    4K 24p: 29.5 mm to 384.9 mm
    General-
    ND filterOFF, 1/4, 1/16, 1/64
    Shutter SpeedWhen [SYSTEM MODE] = 59.94 Hz
    • 60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec.,
    1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
    1/1500 sec.,1/2000 sec.,1/3000 sec., 1/4000 sec.,1/8000 sec.
    • 30p mode: 1/30 sec.,1/50 sec.,1/60 sec., 1/100 sec., 1/120 sec.,
    1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,
    1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,1/4000 sec.,
    1/8000 sec.
    • 24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,
    1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec.,
    1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,
    1/4000 sec., 1/8000 sec.
    When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec.,
    1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,
    1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,
    1/4000 sec., 1/8000 sec.
    • 25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec.,
    1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec.,
    1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,
    1/4000 sec., 1/8000 sec.
    Slow Shutter SpeedWhen [SYSTEM MODE] = 59.94 Hz
    • 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
    • 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
    • 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
    When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
    • 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
    Recording MediaSDHC memory card (4 GB to 32 GB),
    SDXC memory card (48 GB to 128 GB), UHS-I supported
    *An SD memory card with a capacity of UHS Speed Class 3 (U3)
    is required to shoot videos with a bit rate of 100 Mbps or higher.
    An SDXC memory card with a capacity of 64 GB or more and
    UHS Speed Class 3 (U3) is required to shoot UHD 2160/59.94p/
    50.00p videos with a bit rate of 150 Mbps or higher.
    Recording FormatWhen [Dual Codec] = FHD 50 Mbps
    [Main Recorder]
    Recording mode = MOV/MP4
    •UHD/29.97p/25.00p/23.98p 100 Mbps
    [Sub Recorder]
    Recording mode = Same as the recording mode and the frame
    rate of the main recorder
    •FHD/29.97p/25.00p/23.98p 50Mbps
    When [Dual Codec] = FHD 8 Mbps
    [Main Recorder]
    Recording mode = MOV/MP4
    •UHD/29.97p/25.00p/23.98p 100 Mbps
    •FHD/59.94p/50.00p/29.97p/25.00p/23.98p 200 Mbps
    •FHD/59.94p/50.00p 100 Mbps
    [Sub Recorder]
    Recording mode = MOV
    •FHD/59.94p/50.00p/29.97p/25.00p/23.98p 8 Mbps
    HDMI OUTHDMI x 1
    (HDMI type A terminal, not compatible with VIERA Link)
    Output format:
    2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p,
    1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i,
    720/59.94p/50.00p, 480/59.94p, 576/50.00p
    Effective PixelsFHD (1920 x 1080): 15.49 megapixel
    UHD (3840 x 2160) 59.94p/50.00p: 8.71 megapixel
    UHD (3840 x 2160) 29.97p/25p.00: 12.89 megapixel
    4K (4096 x 2160) 24p: 13.35 megapixel
    Filter Diameter72 mm
    DIGITAL ZOOM2x/5x/10x, i.Zoom (1.0x to 1.54x, variable zoom)
    VIDEO OUTPUTBNC x 1, Composite 1.0 V [p-p], 75 Ω
    Built-in microphoneSupports stereo microphone
    AUDIO OUTPUT-
    AUDIO INPUT-
    Dimensions181 mm (W) x 216 mm (H) x 374 mm (D)
    (excluding protrusion and eye cup)
    (7-1/8 inches x 8-1/2 inches x 14-23/32 inches)
    Headroom12 dB
    Lens HoodHood with lens cover
    SensitivityWhen [HIGH SENS.] mode
    F11 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i)
    F12 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i)
    Recording audio signal48 kHz/16 bit, 2 CH
    Recording video signal8 bit 4:2:0
    Super Gain30 dB and 36 dB switched
    (when assigning [S.GAIN] to the USER button)
    Video input/output-
    Recording MethodMOV, MP4
    Memory Card Recorder-
    Digital Video-
    Digital Audio-
    Audio Compression FormatLPCM (MOV/MP4) Dolby Digital (AVCHD)
    Camera Unit-
    Shortest Shooting Distance (M.O.D.)Approx. 1.0 m from the front lens
    VFR Recording Frame RateWhen [SYSTEM MODE] = 59.94 Hz
    • 60p mode: 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 fps
    • 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 fps
    • 24p mode: 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 fps
    When [SYSTEM MODE] = 50 Hz
    • 50p mode: 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 fps
    • 25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 100, and 120 fps
    Minimum Subject Illumination0.2 lx (F2.8, gain 18 dB, [1/2 sec.], [HIGH SENS.] mode)
    Recording slotSlot x 2
    System format59.94 Hz / 50 Hz
    Gain settingL/M/H selector switch
    –6 dB to 24 dB (Adjustable in 1dB steps. Negative gain values are
    available only when [EXPAND] is enabled, and the automatic
    setting can be assigned to L/M/H.)
    Synchro Scan ShutterWhen [SYSTEM MODE] = 59.94 Hz
    • 60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
    • 30p mode: 1/30.0 sec. to 1/249.8 sec.
    • 24p mode: 1/24.0 sec. to 1/249.6 sec.
    When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
    • 25p mode: 1/25.0 sec. to 1/250.0 sec.
    Pickup Devices4/3-type MOS solid state image sensor
    Color Temperature SettingATW, ATW LOCK, Ach, Bch,
    preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
    Shutter Open Angle5.0 deg to 180.0 deg to 360.0 deg
    (in 0.5 deg steps, angle display)
    IR FilterIncorporates the ON/OFF control function
    Motion Picture RecordingRecording Format: MOV, MP4, AVCHD
    Recording Mode: *Please see the Video record mode table.
    Still picture recordingJPEG (DCF/Exif2.2) supported
    8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9),
    2.1M: 1920 x 1080 (16:9), 0.2M: 640 x 360 (16:9),
    0.3M: 640 x 480 (4:3)
    Video Signal for External Output8 bit 4:2:2/10 bit 4:2:2 (switchable menu)
    *Output of UHD/59.94p/50.00p becomes 8 bit 4:2:0. When 10 bit
    4:2:2 is selected, recording is not possible with the main unit.
    Dual Codec-
    Video Compression Format (Dual Codec)MPEG-4 AVC/H.264 High Profile
    Audio Compression Format (Dual Codec)LPCM
    Audio Input1/Audio Input2XLR x 2, 3-pin
    Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
    LINE: 4 dBu/0 dBu (switchable menu)
    MIC: –40 dBu/–50 dBu/–60 dBu (menu)
    Headphone3.5 mm diameter stereo mini jack x 1
    DC INDC 12 V (11.4 V to 12.6 V), EIAJ type 4
    LCD monitor4.3 type HD color monitor, Approx. 2,760,000 dots
    Speaker20 mm diameter, round x 1
    TC PRESET IN/OUTBNC x 1,
    Used as the input and output terminals
    Input: 1.0 V to 4.0 V [p-p], 10 kΩ
    Output: 2.0 V ±0.5 V [p-p], low impedance
    Included accessoriesBattery (VW-VBD58), Battery charger, AC adaptor, Shoulder strap, Microphone holder,
    Screw for microphone holder (12 mm), AC cable x 2, Eye cup, Lens hood,
    INPUT terminal cap, CD-ROM (operating instructions)
    Audio OUT3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
    Cam Remote2.5 mm diameter super mini jack x1 (ZOOM, S/S)
    3.5 mm diameter mini jack x1 (FOCUS, IRIS)
    OTHER INPUT/OUTPUT-
    View Finder0.39 type OLED (organic EL display)
    Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots
    SDI OUT (Audio Output)2 CH (LPCM) switchable gain: 0 dB/–6 dB/–12 dB
    HDMI OUT (Audio Output)2 CH (LPCM)
    USB (Host)Type A connector, 9-pin, bus power supported
    In Recording mode; USB2.0 compatible (5 V, 0.5 A)
    In Playback mode; USB 3.0 compatible (5 V, 0.9 A), used for
    external media device connection
    *External media device with a capacity of 32 GB or below or a
    capacity above 2 TB cannot be used
    USB (Device)Micro-B connector, 10-pin, USB 3.0,
    Mass storage function (read only)
    Monitor/Viewfinder-
