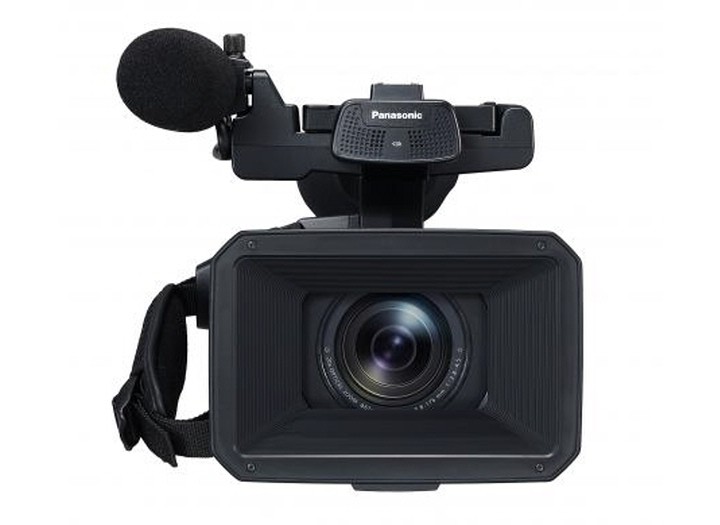

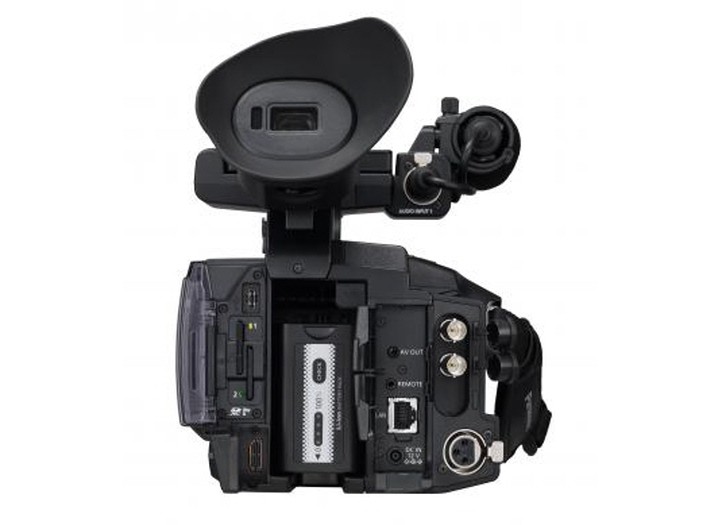

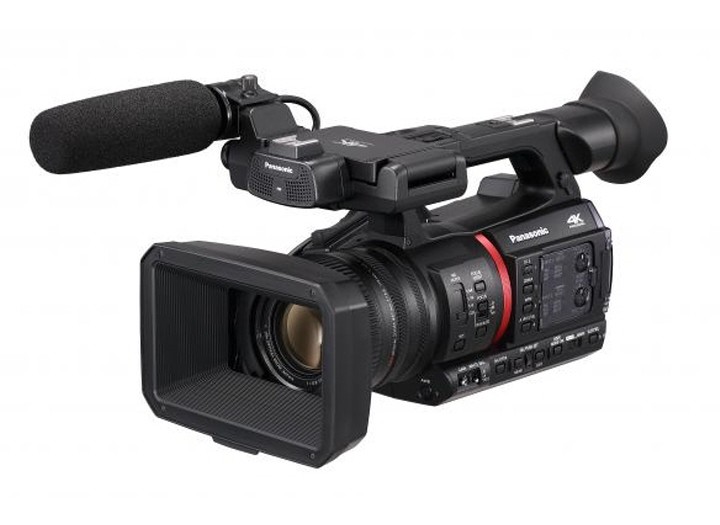

    CAMERA 4K Handheld Camcorder

    Model AG-CX350
    주요사양 New 1.0” 15M Sensor brings 2000TV-lines and F12/F13 Sensitivity.
    주요사양 Superb 4K Image with 10bit Codec
    주요사양 Supporting HLG (Hybrid Log Gamma) and SDR Monitoring
    주요사양 Industry’s Widest Class Lens with 32x Intelligent Zoom and 5-Axis Hybrid I.S.
    주요사양 HD Live Streaming to Connect Directly to Facebook and YouTube Live

    목록으로

    본문

    Detail view
    General-
    PowerDC 7.28 V (when the battery is used)
    DC 12 V (when the AC adaptor is used)
    Power consumption17 W (when the LCD monitor is used)
    11.5 W (1080i / 422ALL-I 100M recording, when the LCD
    monitor is used, no external device connection)
    Operating temperature0 °C to 40 °C (32 °F to 104 °F)
    Operating humidity10 % to 80 % (no condensation)
    WeightBody: approx. 1.9 kg (4.19 lb)
    (body only, excluding lens hood, battery, and accessories)
    Shooting: approx. 2.3 kg (5.07 lb)
    (including lens hood, battery, and microphone holder)
    Dimensions180 mm (W) x 173 mm (H) x 311 mm (D)
    (7-1/8 inches x 6-13/16 inches x 12-1/4 inches)
    (excluding protrusion and eye cup)
    Camera Unit-
    Pickup device1.0-type (effective size) MOS solid state image sensor
    Effective Pixels15,030,000 pixel
    LENSOptical image stabilizer lens, optical 20x motorized zoom
    F value: F2.8 to F4.5
    Focal length: f=8.8 mm to 176 mm
    35 mm equivalent: 24.5 mm to 490 mm
    Filter Diameter: 67 mm
    ND Filter: Clear, 1/4, 1/16, 1/64
    IR Filter: Incorporates the ON/OFF control function
    Shortest Shooting Distance (M.O.D.):
    Approx. 10 cm (W), 1.0 m (T) from the front lens
    Gain settingL/M/H selector switch
    -3 dB to 18 dB (Adjustable in 1 dB steps)
    24dB, 30 dB, 36 dB switched
    (when assigning [S. GAIN] to the USER button)
    Color Temperature SettingATW, ATW LOCK, A ch, B ch,
    preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
    Shutter SpeedWhen [SYSTEM MODE] = 59.94 Hz
    ・59.94i/59.94p mode:
    1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    ・29.97p mode:
    1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.,1/4000 sec., 1/8000 sec., 1/10000 sec.
    ・23.98p mode:
    1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    When [SYSTEM MODE] = 50.00 Hz
    ・50i/50p mode:
    1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    ・25p mode:
    1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    Shutter Speed(Slow Shutter)When [SYSTEM MODE] = 59.94 Hz
    ・59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.
    ・29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.
    ・23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
    When [SYSTEM MODE] = 50.00 Hz
    ・50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.
    ・25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
    Shutter Speed(Synchro Scan)When [SYSTEM MODE] = 59.94 Hz
    ・59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec.
    ・29.97p mode: 1/30.0 sec. to 1/7200 sec.
    ・23.98p mode: 1/24.0 sec. to 1/7200 sec.
    When [SYSTEM MODE] = 50.00 Hz
    ・50i/50p mode: 1/50.0 sec. to 1/7200 sec.
    ・25p mode: 1/25.0 sec. to 1/7200 sec.
    Shutter Open Angle3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
    VFR Recording Frame RateWhen [SYSTEM MODE] = 59.94 Hz
    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)
    When [SYSTEM MODE] = 50.00 Hz
    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)
    Super Slow RecordingWhen [SYSTEM MODE] = 59.94 Hz
    1920 x 1080 (FHD): shooting frame rate 120 fps
    When [SYSTEM MODE] = 50.00 Hz
    1920 x 1080 (FHD): shooting frame rate 100 fps
    SensitivityWhen [HIGH SENS.] mode
    F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
    F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
    Horizontal Resolution2000 TV or higher (UHD: center)
    1000 TV or higher (FHD: center)
    i.Zoom×32 (FHD), ×24 (UHD)
    DIGITAL ZOOM×2/×5/×10
    Lens HoodHood with lens cover
    Memory Card Recorder-
    Recording MediaSDHC memory card (4 GB to 32 GB),
    SDXC memory card (32 GB to 128 GB)
    UHS-I/UHS-II UHS Speed Class3 supported, Video Speed Class V90 supported
    microP2 card (A series, B series)
    Please see back cover for the “Available Memory Card” table.
    Recording slotmicroP2/SDXC UHS-II card slot x 2
    Recording Pixels3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD)
    System frequency59.94 Hz/50.00 Hz
    Recording File FormatMOV (AVC), MOV (HEVC), AVCHD
    Recording FormatPlease see page 4 for the “Recording Format” table.
    Recording TimePlease see back cover for the “Recording Time” table.
    2 Slot FunctionsRelay Rec, Simultaneous Rec, Background Rec
    Special Recording FunctionsPre Rec, Interval Rec, Time Stamp
    Digital Video-
    QuantizationMOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC)
    AVCHD: 4:2:0 8 bit
    Digital Video | Video Compression FormatH.264/MPEG-4 AVC High Profile
    H.265/MPEG-H HEVC Main10 Profile
    Digital Audio-
    Recording audio signalMOV: 48 kHz/24 bit, 2 ch, Linear PCM
    AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™
    Headroom12 dB/18 dB/20 dB switchable (menu)
    Live Streaming-
    Live Streaming | Video Compression FormatH.264/MPEG-4 AVC Main Profile, High Profile
    Audio Compression FormatAAC-LC
    Network ProtocolRTSP/RTP/RTMP
    VIDEO OUTPUT-
    Video Output | SDI OUTBNC x 1, SDI REC REMOTE supported
    HD: 0.8 V [p-p], 75 Ω SD: 0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit):
    ・1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
    ・1280 × 720: 59.94p, 50p
    ・720 × 480: 59.94i
    ・720 × 576: 50i
    Video Output | HDMI OUTHDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
    Output format (4:2:2 10 bit):
    ・3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
    ・1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    ・1280 × 720: 59.94p, 50p
    ・720 × 480: 59.94p
    ・720 × 576: 50p
    VIDEO OUT3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω
    Audio Input/Output-
    Built-in microphoneStereo microphone
    INPUT 1/2XLR (3-pin) x 2 (INPUT1, INPUT2)
    Input high impedance, LINE/MIC/MIC+48V (switchable SW)
    MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
    LINE: +4 dBu/0 dBu (switchable menu)
    Audio Input/Output | SDI OUTLinear PCM 2 ch
    Audio Input/Output | HDMI OUTLinear PCM 2 ch
    Headphone3.5 mm diameter stereo mini jack x 1
    AV OUT3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
    Speaker20 mm diameter, round x 1
    OTHER INPUT/OUTPUT-
    TC IN/OUTBNC x 1,
    Used as the input and output terminals (switchable menu)
    Input: 1.0 V to 4.0 V [p-p] 10 KΩ
    Output: 2.0 V ± 0.5 V [p-p] low impedance
    2.5 mm diameter super mini jack
    REMOTE2.5 mm diameter super mini jack
    LANRJ-45: 1000BASE-T/100BASE-TX/10BASE-T
    USB 2.0 HOSTType-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
    USB 3.0 DEVICEUSB 3.1 GEN1 Type-C, USB Mass storage function
    No USB bus power function
    DC IN 12VDC 12 V EIAJ Type 4
    Monitor/Viewfinder-
    LCD monitor3.5 type TFTLCD color monitor (3:2),
    approx. 1,620,000 dots, Touch panel
    video display (16: 9) area: Approx. 1,370,000 dots
    VIEWFINDER0.39 type OLED (organic EL display), approx. 2,360,000 dots,
    video display (16: 9) area: approx. 1,770,000 dots
    Included accessoriesBattery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable, Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions (Items marked by an asterisk (*) come already attached to the camera)
