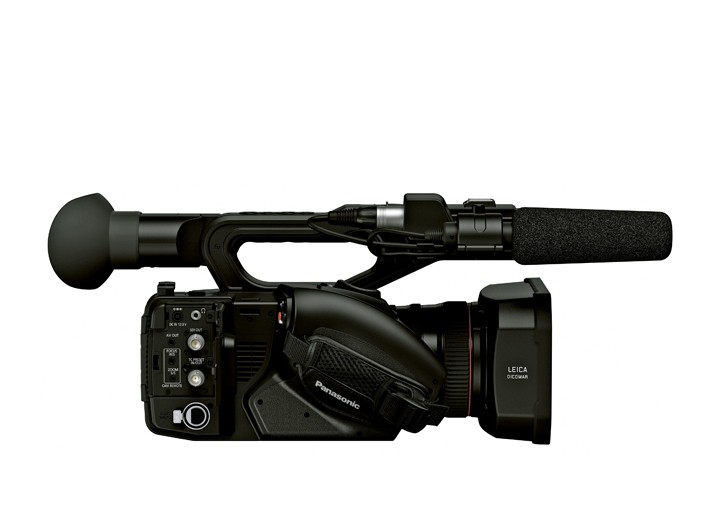

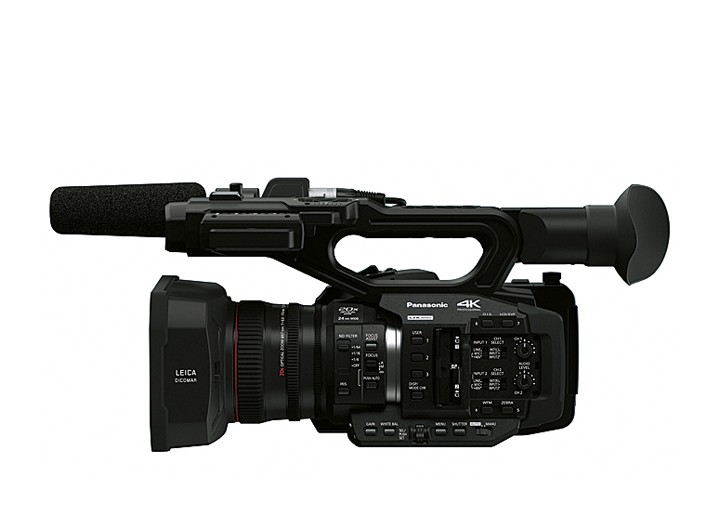

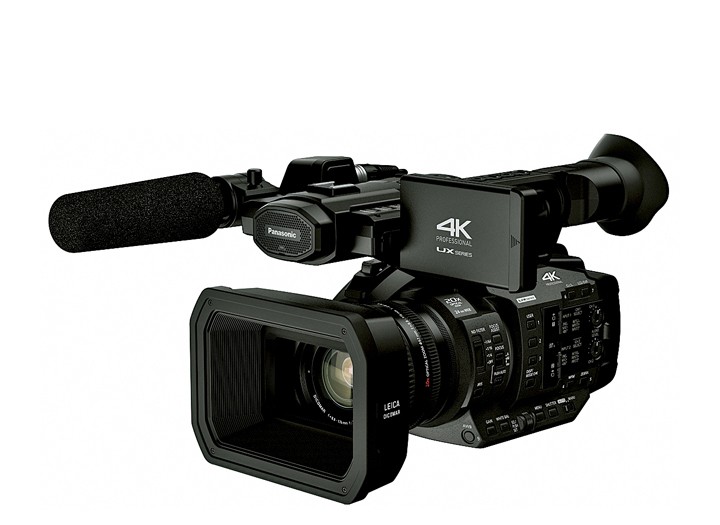

    CAMERA AG-UX180 4K Premium Professional Camcorder

    모델 AG-UX180
    주요사양 1.0
    주요사양 4K 24P, UHD 60p/50p/30p/25p/24p
    주요사양 UHD/FHD Dual Codec Recording
    주요사양 8.8 to 176mm 20x Optical Zoom with OIS
    주요사양 3 x Manual Lens Control Rings
    주요사양 Dual Codec Recording in UHD/FHD

    목록으로

    본문

    Detail view

    SPECS

    Panasonic AG-UX180 Specs

    Type1.0"-type MOS
    Effective PixelsDCI 4K: 9.36 MP
    UHD: 8.79 MP

    Zoom20x optical zoom
    Focal Length: 8.8 to 176mm
    35mm Equivalent
    DCI 4K: 24 to 480mm
    UHD: 25.4 to 508mm
    Minimum Object Distance (M.O.D.)Approx. 3.3' / 1 m
    Filter Diameter67mm
    ND FilterOff, 1/4, 1/8, 1/16
    IR FilterOn/Off

    Signal System59.94i 50i
    Color SamplingExternal Output
    UHD 59.94/50: 4:2:0 8-bit
    FHD: 4:2:2 8-bit

    Internal Recording
    4:2:0 8-bit
    Recording FormatsDCI 4K - 4096 x 2160 MOV or MP4
    Compression Method: LongGOP
    FPS: 24p (bit rate 100 Mb/s)
    Audio: LPCM

    UHD 4K - 3840 x 2160 MOV or MP4
    Compression Method: LongGOP
    FPS: 59.94p/50p (bit rate: 150 Mb/s)
    FPS: 29.97p/50p/23.98p (bit rate: 100 Mb/s)
    Audio: LPCM

    Full HD - 1920 x 1080 MOV or MP4
    Compression Method: All-Intra
    FPS: 59.94p/50p/29.97p/50p/23.98p (bit rate: 200 Mb/s)
    Audio: LPCM

    Full HD - 1920 x 1080 MOV or MP4
    Compression Method: LongGOP
    FPS: 59.94p/50p (bit rate: 100 Mb/s)
    FPS: 59.94p/50p/29.97p/25p/23.98p/59.94i/50i (bit rate: 50 Mb/s)
    Audio: LPCM

    Full HD - 1920 x 1080 AVCHD
    Compression Method: LongGOP
    FPS: 59.94p/50p (bit rate: 25 Mb/s)
    FPS: 59.94i/50i/23.98p (bit rate: 21 Mb/s)
    FPS: 59.94i/50i (bit rate: 17 Mb/s)
    Audio: AC3

    1440 x 1080 AVCHD
    Compression Method: LongGOP
    FPS: 59.94i/50i (bit rate: 5 Mb/s)
    Audio: AC3

    1280 x 720 AVCHD
    Compression Method: LongGOP
    FPS: 59.94p/50p (bit rate: 8 Mb/s)
    Audio: AC3

    720 x 480 AVCHD
    Compression Method: LongGOP
    FPS: 59.94i (16:9/4:3 bit rate: 9 Mb/s)
    Audio: AC3

    720 x 576 AVCHD
    Compression Method: LongGOP
    FPS: 59.94i (16:9/4:3 bit rate: 9 Mb/s)
    Audio: AC3
    GainL/M/H selector switch
    Standard mode: 0 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)
    Extended ON: -3 dB to 24 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H) 30 dB and 36 dB switched (when assigning [S. GAIN] to the USER button)
    Color TemperatureATW, ATW LOCK, Ach, Bch
    Preset: 3200, 5600K
    VAR: 2000 to 15000K
    Shutter Speed59.94 Hz
    60i/p mode: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 second
    30p mode: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 second
    24p mode: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 second

    50.00 Hz
    50i/p modes: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 second
    25p mode: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 second
    Slow Shutter59.94 Hz
    60i/60p mode: 1/2, 1/4, 1/8, 1/15, 1/30 second
    30p mode: 1/2, 1/4, 1/8, 1/15 second
    24p mode: 1/2, 1/4, 1/6, 1/12 second

    50.00 Hz
    50i/50p modes: 1/2, 1/3, 1/6, 1/12, 1/25 second
    25p mode: 1/2, 1/3, 1/6, 1/12 second
    Synchro Scan Shutter59.94 Hz
    60i/p mode: 1/60.0 to 1/249.7 second
    30p mode: 1/30.0 to 1/249.7 second
    24p mode: 1/24.0 to 1/249.7 second
    50.00 Hz
    50i/p mode: 1/50.0 to 1/250.0 second
    25p mode: 1/25.0 to 1/250.0 second
    VFR Recording Frame Rate59.94 Hz
    30p: 2/15/26/28/30/32/34/45/60 fps
    24p: 2/12/20/22/24/28/36/48/60 fps

    50.00 Hz
    25p: 2/12/21/23/25/27/30/37/50 fps
    Super Slow Motion59.94 Hz
    FHD: 120 fps
    50.00 Hz
    FHD: 100 fps
    Sensitivity[HIGH SENS.]
    1080i 59.94:F11 (2000 lx, 3200 K, 89.9 % reflect) 1080i 50: F12 (2000 lx, 3200 K, 89.9 % reflect)
    Minimum Subject Illumination0.2 lx (F2.8, gain 18 dB, Manual slow shutter 1/2S in [HIGH SENS.] mode)
    LCD Monitor3.5 type LCD color monitor, Approx. 1,150,000 dots
    Viewfinder0.39 type OLED (organic EL display) Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots
    Memory Card Slot2 x SDHC/SDXC slots
    Recording MediaSDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB), UHS-I supported
    Maximum Recording Time128 GB Card MOV/MP4
    DCI 4K (100 Mb/s): 160 min (approximately)
    UHD (200 Mb/s): 55 min (approximately)
    UHD (100 Mb/s): 110 min (approximately)
    FHD (200 Mb/s): 80 min (approximately)
    FHD (100 Mb/s): 160 min (approximately)
    FHD (50 Mb/s): 320 min (approximately)

    128 GB Card AVCHD
    PS (25 Mb/s): 660 min (approximately)
    PH (21 Mb/s): 750 min (approximately)
    HA (17 Mb/s): 17 hours (approximately)
    SA (9 Mb/s): 34 hours (approximately)
    HE (8 Mb/s): 35 hours (approximately)
    HE (5 Mb/s): 56 hours (approximately)
    Interval Recording1 sec / 10 sec / 30 sec / 1 min / 2 min interval, maximum 168 hours (1 week) recording (PH 1080/24p mode is fixed)
    Video Outputs3G/HD/SD-SDI: 1 x BNC 0.8 V [p-p], 75 Ω
    1080p: 59.94 (LEVEL-A/50.00p LEVEL-A)
    1080PsF: 29.97/25.00/24.00/23.98
    1080i: 59.94/50
    720p: 59.94/50

    HDMI: 1 x Type A (VIERA Link not supported)
    2160p: 59.94/50/29.97/25.00/24.00/23.98
    720p: 59.94/50
    480p: 59.94
    AV: 1 x connector
    Audio Signal48 kHz/16-bit, 2 channel
    MOV/MP4: LPCM
    AVCHD: Dolby Digital
    Headroom: 12 dB
    Audio BitratesPH mode: 384 kb/s
    PM/HA/HE mode: 256 kb/s
    Audio I/OInput
    High impedance: LINE/MIC/MIC+48V (switchable SW)
    LINE: +4 dBu/0 dBu (switchable menu)
    MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu)

    Output
    SDI: 2 ch (LPCM) switchable gain: 0 dB/−6 dB/−12 dB
    HDMI: 2 ch (LPCM)
    AUDIO OUT: 1 x AV connector, Output level: 600 Ω, 316 mV
    Headphone: 1 x 3.5 mm diameter stereo mini jack
    Speaker: 1 x 20mm diameter
    Other I/O ConnectionsTimecode
    I/O: 1 x BNC
    Input: 1.0 V to 4.0 V [p-p] 10 KΩ
    Output: 2.0 V ± 0.5 V [p-p] low impedance

    USB 3.0 Host
    Standard-A connector, 9-pin, external media device connection, bus power supported

    USB 3.0 Device
    Micro-B connector, 10-pin, Mass storage function (read only)
    DC In
    12 VDC (11.4V to 12.6V) EIAJ Type4
    Power Requirements7.28 VDC via battery
    12 VDC via AC adapter
    Power Consumption19.7 W when LCD monitor is used
    Operating Temperature32 to 104 °F (0 to 40°C)
    Operating Humidity10-80% (no condensation)
    Dimensions (WxHxD)6.8 x 7.7 x 13.6" (173 x 195 x 346 mm) excluding protrusions
    WeightApprox. 4.4 lb (2 kg) excluding battery and accessories
    Packaging Info
    Package Weight10.5 lb
    Box Dimensions (LxWxH)18.3 x 13.2 x 11.2"
