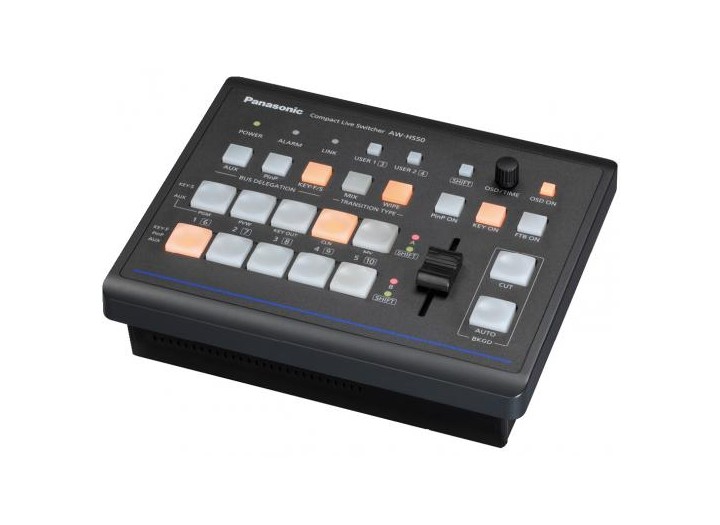

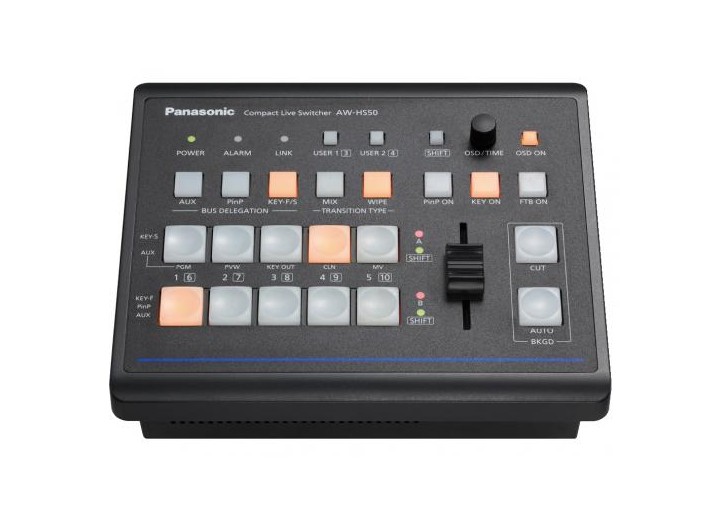

    SWITCHER Compact HD/SD Live 스위쳐

    Model AW-HS50
    주요사양 5 inputs and 3 outputs
    주요사양 Audio Level Meter Display Function
    주요사양 MultiViewer display functionality comes installed as standard

    목록으로

    본문

    Detail view
    Dimensions (W x H x D)210 x 67 x 177 mm (8-1/4˝ x 2-5/8˝ x 6-15/16˝)
    [excluding protrusions]
    General-
    Current consumption2.0 A (DC 12 V)
    Power RequirementsDC 12 V ±10 % (AC adapter provided)
    Humidity10 % to 90 % (no condensation)
    Ambient Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
    Mass1.4 kg (3.08 lbs.)
    Signal ProcessingY:Cb:Cr 4:2:2, 10 bit (8 bits for frame memory)
    RGB 4:4:4, 8 bit
    ME Number1ME
    SDI InputsHD: Serial digital component (SMPTE 292M)
    SD: Serial digital component (SMPTE 259M)

    4 signal lines: SDI IN 1 to SDI IN 4

    HD: SMPTE 292M (BTA S-004B) standard complied with
    • 0.8 V [p-p] ±10 % (75 Ω)
    • Input return loss More than 15 dB
    (5 MHz to 1.5 GHz)
    • Automatic equalizer 100 m (328 ft.)
    (when 5C-FB cable is used)

    SD: SMPTE 259M standard complied with
    • 0.8 V [p-p] ±10 % (75 Ω)
    • Input return loss More than 15 dB
    (5 MHz to 270 MHz)
    • Automatic equalizer 200 m (656 ft.)
    (when 5C-2V cable is used)
    Video Terminal-
    Signal FormatsSD: 480/59.94i, 576/50i
    HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF
    Inputs5 video lines
    SDI 4 signal lines: SDI IN 1 to SDI IN 4
    DVI-D 1 signal line: DVI IN
    Outputs3 video lines, 4 outputs
    SDI 2 signal lines: SDI OUT 1, SDI OUT 2 (Only the SDI OUT 1 signals are split into two)
    DVI-D 1 signal line: DVI OUT
    DVI-D InputDigital RGB (Vertical frequency: 60 Hz):
    XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
    Digital RGB: 1080/50p, 1080/59.94p
    • Analog input signals are not supported.
    SDI OutputsHD: Serial digital component (SMPTE 292M)
    SD: Serial digital component (SMPTE 259M)

    2 signal lines: SDI OUT 1, SDI OUT 2
    (Only the SDI OUT 1 signals are split into two)

    HD: SMPTE 292M (BTA S-004B) standard complied with
    • Output return loss: More than 15 dB (5 MHz to 1.5 GHz)
    • Output level: 0.8 V [p-p] ±10 % (75 Ω)
    • Rise time: Less than 270 ps
    • Fall time: Less than 270 ps
    • Difference between rise time and fall time: Less than 100 ps
    • Alignment jitter: Less than 0.2 UI (130 ps)
    • Timing jitter: Less than 1.0 UI
    • Eye aperture ratio: More than 90 %
    • DC offset: 0±0.5 V

    SD: SMPTE 259M standard complied with
    • Output return loss: More than 15 dB (5 MHz to 270 MHz)
    • Output level: 0.8 V [p-p] ±10 % (75 Ω)
    • Rise time: Less than 1.5 ns
    • Fall time: Less than 1.5 ns
    • Difference between rise time and fall time: Less than 0.5 ns
    • Jitter: Less than 0.2 UI
    DVI-D OutputDigital RGB (Vertical frequency: 60 Hz):
    XGA (1024 x 768), WXGA (1280 x 768), SXGA (1280 x 1024), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), WUXGA (1920 x 1200)
    Digital RGB: 1080/50p, 1080/59.94p
    • High-resolution multi view mode supported: Signals are also output with a high resolution even when SD has been selected as the system mode.
    When the high-resolution multi view mode is enabled, MV is assigned to the DVI OUT connector, and MV cannot be assigned to the SDI OUT 1 connectors or SDI OUT 2 connector.
    • Analog output signals are not supported.

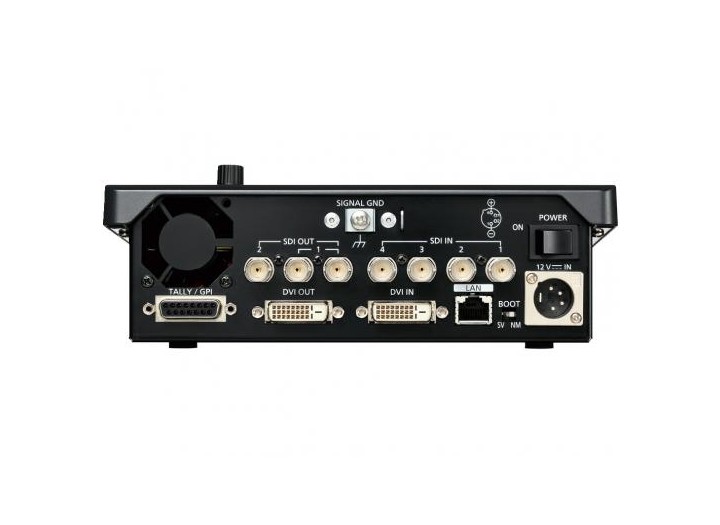

    LANRJ-45 x 1 10BASE-T/100BASE-TX (For IP control)
    Connecting cable: LAN cable (category 5 or above), max. 100 m [328 ft.], STP (Shielded Twisted Pair) cable recommended
    • When connecting to a hub (switching hub), use a straight cable.
    Use a crossover cable when connecting the unit and another device on a 1:1 basis without going through a hub.
    AccessoriesOperating Instructions (this manual), CD-ROM (Operating Instructions , Operating Instructions , Data Transmission Software), AC adapter, Power cable (2 m [6.6 ft.])
    Video Delay Time1 frame (F)
    • Video signals that have passed through the PinP, multi view display, DVI-D input or DVI-D output will be delayed in each case by up to one frame.
    OtherSERVICE switch [SV/NM] (for maintenance purposes)
    Normally, this switch is used as the “NM” position.
    TALLY/GPID-sub 15-pin, female, inch thread
    INPUT: 5 inputs, photocoupler sensing
    OUTPUT: 7 outputs, open collector output (negative logic)
    Synchronous Terminal-
    Control Terminal-
