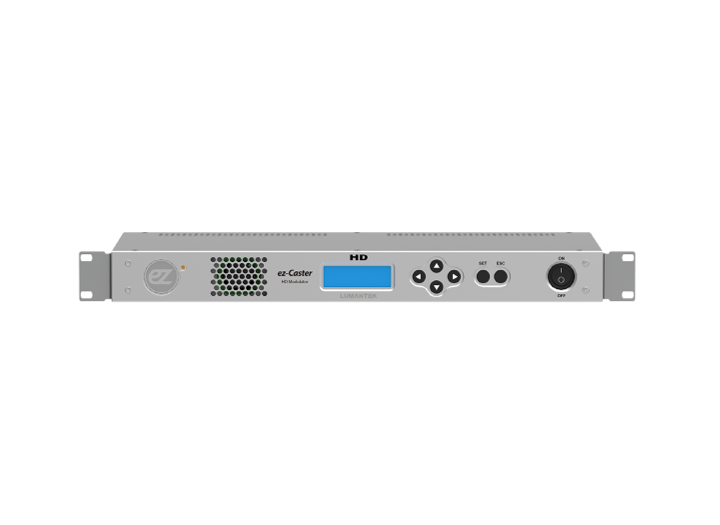

ETC ez-Caster EN3B
| 주요사양 | Encoder와 Mudulator의 일체형 장비 |
|---|---|
| 주요사양 | 외부 오디오를 입력받아 Mux 처리가 가능 |
| 주요사양 | MPEG2와 MPEG4 포맷의 엔코딩 기술을 이용하여 원본 대비 최적의 화질로 저용량의 파일로 바꾸어 사용 가능 |
| 주요사양 | HDMI, HD-SDI 입력을 지원 |
| 주요사양 | Encoding Latency 150ms ~ 650ms 까지 선택이 가능 |
목록으로
- PREVIOUSSDI distributor 1:6 BAT-SD
- NEXTRemote Camera Controller
본문
Detail view
| Type | HD Encoder + 8VSB modulator |
| Inputs | SD/HD-SDI, BNC 75Ohm 1ea HDMI 1.4a 1ea Analog Stereo Audio (Left/Right), RCA 2ea |
| Video Resolutions | 1920 x 1080 @60p, 59.94p, 50p Automatic Convert to Interlaced Format 1920 x 1080 @60i, 59.94i, 50i 1280 x 720 @60p, 59.94p, 50p 720 x 480 @59.94i (NTSC) 720 x 575 @50i (PAL) Resolution detect and automatic/manual change support |
| TS Mux & System | System Delay : 150ms, 200ms, 350ms, 650ms TS Bit-rate :4.5~25Mbps Editable TS ID, PMT/PCR/ VIdeo/ Audio PID |
| Video Encoder | MPEG2, H.264 |
| Audio Encoder | MP1L2, Dolby AC3, AAC-LC HE-AACv2 (stereo) Bit-rate : 192-384 Kbps (HE-AACv2:32-96Kbps) Sample Rate : 48KHz Audio Delay : 0 - 400ms Volume Control : 100 - 500% |
| PSIP Generator | MGT, TVCT Generation Enable/Disable Short name, major and minor channel number setting |
| RF Output | Modulation : ATSC (8VSB) Connector : F-Type 75Ohm 1ea Output Level : +2~-18dBm (0.5dB step) Center Frequency Range: 40~999MHz MER : >36dB Spurious : 60dBc (Relative to Output level) Phase Noise : VHF 110dBc@20kHZ, UHF 95dBc @20kHz |
| IP Output (*option) | Ethernet : 10/100Bast-T, half/Full Duplex Maximum Transmission Unit: 1464-1472 MTU Streaming Protocol : MPEG2-TS/UDP Transport Protocol: UDP, Unicast or multicast IGMPv1, IGMPv2 Support |
| Management | Front Panel : 4-line text LCD, 6 buttons, Status LED(RGB) Rear USB Port : GUI, Firmware update |
| Physical | Dimension : 44(H) x 483(W) x 240(D) (excluding connectors) Operation Temperature : 0 - 45℃ Weight : 2 kg Power Consumption : 25W (Max.) |
