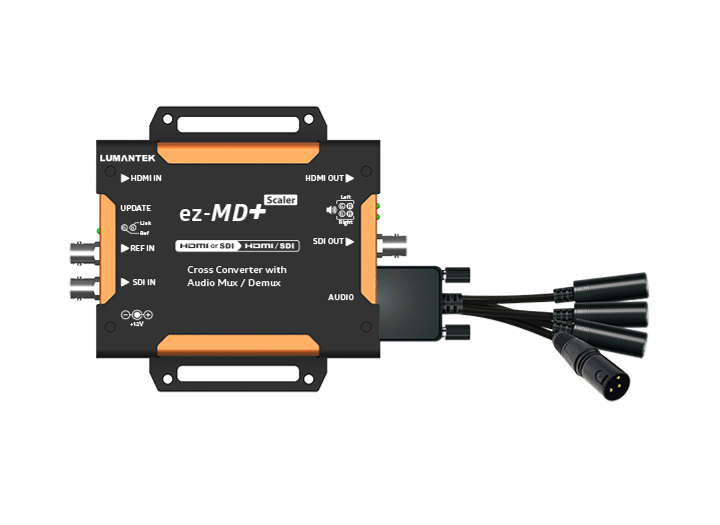

ETC HDMI/ SDI CROSS converter
| Model | ez-MD+ |
|---|---|
| 제조사 | 루먼텍(Lumantek) |
| 주요사양 | XLR 타입의 외부 오디오를 embedding/ De-embedding |
| 주요사양 | 로터리 스위치를 이용하여 오디오 딜레이를 줄수 있습니다. (50ms 단위) |
| 주요사양 | Free Running, Input Lock, Genlock 세가지 모드의 프레임 동기화 설정이 가능 |
| 주요사양 | HDMI, SDI신호 교차 변환 지원 |
목록으로
- PREVIOUSHD-SDI Ditributor
- NEXTSYSTEM PTZ Controller
본문
Data Input
SDI Video Input : SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Input: SD/HD/3G (HDMI Type A) x1
Reference Input: B.B , TRI (BNC 75Ω) x1
Audio Input: D-SUB 9PIN (Female) x1
Video Formats
- 720 x 480i 59.94/60
- 720 x 576i 50
- 1280 x 720p 50/59.94/60
- 1920 x 1080i 50/59.94/60
- 1920 x 1080p 23.98/24/25/29.97/30
- 1920 x 1080p 50/59.94/60
Data Output
SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Output: SD/HD/3G (HDMI Type A)x1
Audio Output : D-SUB 9PIN (Female) x1
Video Formats
- 720x480i@59.94 (DIP SW : 1111)
- 720x576i@50 (DIP SW : 0111)
- 1280x720p@50 (DIP SW : 1011)
- 1280x720p@59.94 (DIP SW : 0011)
- 1280x720p@60 (DIP SW : 1101)
- 1920x1080i@50 (DIP SW : 0101)
- 1920x1080i@59.94 (DIP SW : 1001)
- 1920x1080i@60 (DIP SW : 0001)
- 1920x1080p@23.98 (DIP SW : 1110)
- 1920x1080p@24 (DIP SW : 0110)
- 1920x1080p@25 (DIP SW : 1010)
- 1920x1080p@29.97 (DIP SW : 0010)
- 1920x1080p@30 (DIP SW : 1100)
- 1920x1080p@50 (DIP SW : 0100)
- 1920x1080p@59.94 (DIP SW : 1000)
- 1920x1080p@60 (DIP SW : 0000)
Connections
Power : DC Power Input (DC Jack) x1
Update : Debug (Micro-USB) x1
DIP Switch : (10 Pole) x1
Video Output Resolution, Video Output Ratio, Video
Input(SDI or HDMI),Audio(INT or EXT), Sync Mode :Free Running, Input lock, Genlock (B.B or TRI-Level),Audio Gain(0 or -10dB)
ROTARY Switch : (10 Step) x1
Audio Delay Control (50ms Step)
Display
Link (GREEN x1) : HDMI or SDI Input Video Detect
Ref (GREEN x1) : REF Input Signal Detect
Left (GREEN x1, RED x1) : INPUT AUDIO LevelMeter(Left)
Right (GREEN x1, RED x1) : INPUT AUDIO LevelMeter(Right)
Electrical
Power Input: DC +11V to +13V
Power Consumption: 8W(max.)
Operation Temperature: 0~45℃
Physical
Dimension: 130x100.4x26.9 (include connector)
Weight: 0.4 kg(typ.)
