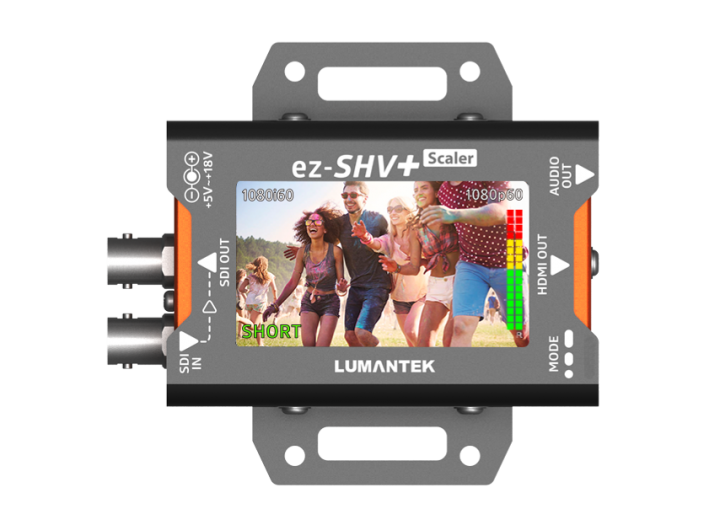

ETC CONVERTER WITH DISPLAY
| Model | ez-SHV+ |
|---|---|
| 제조사 | 루먼텍(Lumantek) |
| 주요사양 | Analog Audio(Stereo) 출력을 지원 |
| 주요사양 | 2.7inch TFT-LCD를 통해 입력 영상 Display |
| 주요사양 | 입력 Eye Pattern 측정, 입출력 해상도 Display, 대략적인 입력 케이블 길이를 측정 |
| 주요사양 | Input SDI 1개, Output HDMI 1 |
| 주요사양 | SDI to HDMI with Scaler Converter |
목록으로
- PREVIOUSFILL & KEY 자막기
- NEXTScaler Converter
본문
Data Input
SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x1
Video Formats
- 720x480i@59.94/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60 (3G-SDI Level-B not supported)
Data Output
SDI LOOP Output: SD/HD/3G-SDI (BNC 75Ω) x1
Audio Output: Stereo Jack x1HDMI
Video Output: SD/HD/3G(HDMI Type A) x1
Video Formats:- 720x480i@59.94 (DIP SW : 1111)
- 720x576i@50 (DIP SW : 0111)
- 1280x720p@50 (DIP SW : 1011)
- 1280x720p@59.94 (DIP SW : 0011)
- 1280x720p@60 (DIP SW : 1101)
- 1920x1080i@50 (DIP SW : 0101)
- 1920x1080i@59.94 (DIP SW : 1001)
- 1920x1080i@60 (DIP SW : 0001)
- 1920x1080p@23.98 (DIP SW : 1110)
- 1920x1080p@24 (DIP SW : 0110)
- 1920x1080p@25 (DIP SW : 1010)
- 1920x1080p@29.97 (DIP SW : 0010)
- 1920x1080p@30 (DIP SW : 1100)
- 1920x1080p@50 (DIP SW : 0100)
- 1920x1080p@59.94 (DIP SW : 1000)
- 1920x1080p@60 (DIP SW : 0000)
Connections
Power : DC Power Input (DC Jack) x1
DIP Switch : (6 Pole) x1 Video In/Out Resolution,Video Output Ratio, LCD Brightness
MODE : (Push Switch) x1 LCD ON/OFF, MenuSelection
Display
2.7 inch TFT LCD : Input Video Display, Input SDIEye Pattern,In/Output Video Resolution Display,Input Cable Length
Electrical
Power Input: DC +5V to +18V
Power Consumption: 3W(max.)
Operation Temperature: 0~45℃
Physical
Dimension: 86.3x57.2x26.6 (include connector)
Weight: 0.3 kg(typ.)
