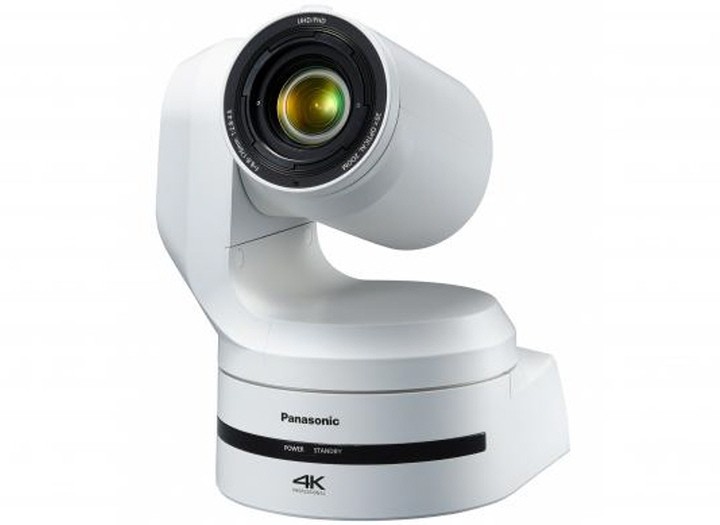

PTZ CAMERA 4K Professional PTZ Camera
| Model | AW-UE150 |
|---|---|
| 제조사 | 파나소닉(Panasonic) |
| 주요사양 | 75.1° horizontal viewing angle (widest in its class) |
| 주요사양 | Various 4K interfaces (12G-SDI, HDMI, Optical Fiber, IP) |
| 주요사양 | Optical 20x Zoom + iZoom |
| 주요사양 | First UHD/4K 59.94p Integrated PTZ Camera |
목록으로
- PREVIOUSPTZ Camera
- NEXTLiveShell X Main Features
본문
Detail view
| General | - |
| Power Requirements | Due to increased PRO PTZ camera installations utilizing existing PoE++ infrastructure, the AW-UE150 unit does not include a standard power supply. If the AW-UE150 will be installed in an area without PoE++, please utilize an IA-70a power supply. XLR 4-PIN: 12 V DC (10.8 V to 13.2 V) PoE++: IEEE 802.3bt (Type 4) Standard DC 42 V to 57 V (Camera Input) |
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) |
| Current consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Mass | Approx. 4.2 kg (9.24 lb) (excluding mount bracket) |
| Dimensions (W x H x D) (mm) | 213 mm x 267 mm x 219 mm (excluding protrusions, direct ceiling mount bracket) |
| Dimensions (W x H x D) (inch) | 8-3/8 inches x 10-1/2 inches x 8-5/8 inches (excluding protrusions, direct ceiling mount bracket) |

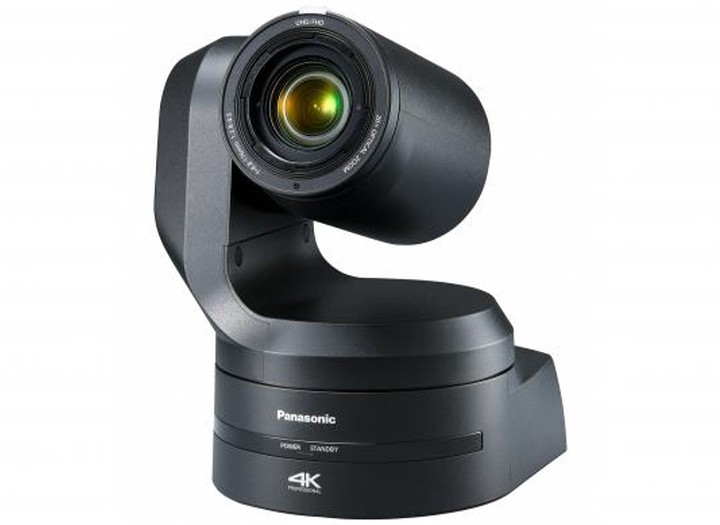

| Finish | AW-UE150WP/AW-UE150WE: Pearl white AW-UE150KP/AW-UE150KE: Black |
| Controller supported*1 | AW-RP150GJ |
| Camera Unit | - |
| Imaging Sensors | 1-type 4K MOS×1 |
| LENS * | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
| Zoom | ・Optical zoom: 20x ・i.Zoom: UHD 24x, FHD 32x ・Digital zoom: 10x |
| Conversion Lens | Not supported |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Color separation optical system | 1MOS |
| Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
| MINIMUM ILLUMINATION | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| S/N | 60 dB or more |
| Horizontal Resolution | 1600 TV lines Typ (Center area) |
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| Frame mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Electronic Shutter Speed | 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Syncro Scan | 59.94p/59.94i : 60.00 Hz to 7200 Hz 29.97p : 30.00 Hz to 7200 Hz 23.98p/24p : 24.00 Hz to 7200 Hz 50p/50i : 50.00 Hz to 7200 Hz 25p : 25.00 Hz to 7200 Hz |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| WHITE BALANCE | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Chroma Amount Variability | OFF, -99 % to 99 % |
| Scene File | Scene1, Scene2, Scene3, Scene4 |
| Output Format | 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Synchronization System | - |
| Synchronization | Internal / External synchronization (BBS / Tri-level sync) |
| INPUT | - |
| Input Connector | DC 12 V IN, G/L IN (BNC) ・BBS (Black Burst Sync), tri-level sync supported |
| OUTPUT | - |
| VIDEO OUTPUT | HDMI HDMI 2.0 standard 4:2:2/10bit ・HDCP is not supported. ・Viera Link is not supported. 12G-SDI OUT SMPTE 2082-1 standard / 75 Ω (BNC x 1) 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) ・Level-A/Level-B supported MONI OUT SMPTE292 / 75 Ω (BNC x 1) Optical Fiber SFP+ standard Single Fiber ・The signal sent is the same as 12G-SDI OUT. ・This unit does not support input by optical signals. |
| INPUT/OUTPUT | - |

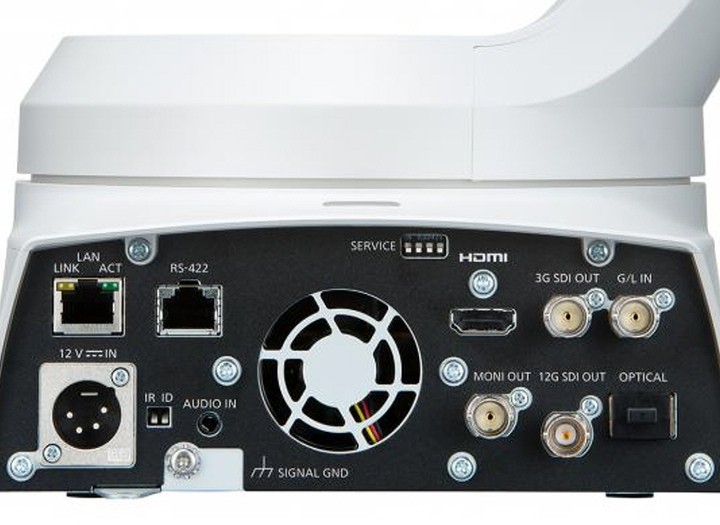

| Input / Output Connector | LAN LAN connector for IP control (RJ-45) RS-422 CONTROL IN RS-422A (RJ-45) MIC/LINE input φ3.5 mm stereo mini jack Input impedance: High impedance ・During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) ・During LINE input Input level: Approx. -10 dBV ±3 dBV |
| Pan-tilt Head Unit | - |
| Camera/pan-tilt head control | IP connecting cable ・LAN cable*6*7 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft) AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft) |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*8 |
| Pan/Tilt Operation Speed | Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 ・Maximum speed is 180°/s in high-speed mode |
| Panning range | ±175° |
| Tilting Range | -30° to 210°*10 |
| Quietness | NC35 or less |
| Supported operating systems and web browsers*11 | - |
| Supported operating systems and web browsers | Windows Microsoft(R) Windows(R) 7, 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome iPhone / iPad iOS 11.4.1 Google Chrome |
| IP Streaming | - |
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265 |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 |
| Image Transmission setting (JPEG) | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
| Image Transmission Setting (H.264) | ■Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps) ■Max Bit Rate HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps UHD : 12800kbps/25600kbps/51700kbps/76800kbps |
| Image Transmission Setting (H.265) | ■Image Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port ■Frame Rate [60Hz] 30fps [50Hz] 25fps ■Max Bit Rate 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch |
| Supported protocol | ■IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP ■IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP |
| Other Function | - |
| NDI support*12 | NDI | HX |
| Tally LED display color | red / green |
| Note | *1: AW-RP50, AW-RP120G, AK-HRP1000GJ and AK-HRP1005GJ connection with the AW-UE150W/K is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: 1 dB step increments can be set. *3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. *4: Native output. *5: It denotes “1080/23.98p over 59.94i”. *6: Use of an STP (shielded twisted pair) cable is recommended. *7: Category 6 or more is used when sending 4K images. *8: To ensure safety, the unit must be secured using the mount bracket supplied. *9: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *10: Depending on the pan or tilt position, the camera may be reflected in the image. *11: Supported OS indicated are for browsers current as of October 2018. See Service and Support on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support. *12: Contact your local Panasonic vendor for further information. |
*Native output.
** Specifications are subject to change without notice.
** Specifications are subject to change without notice.
