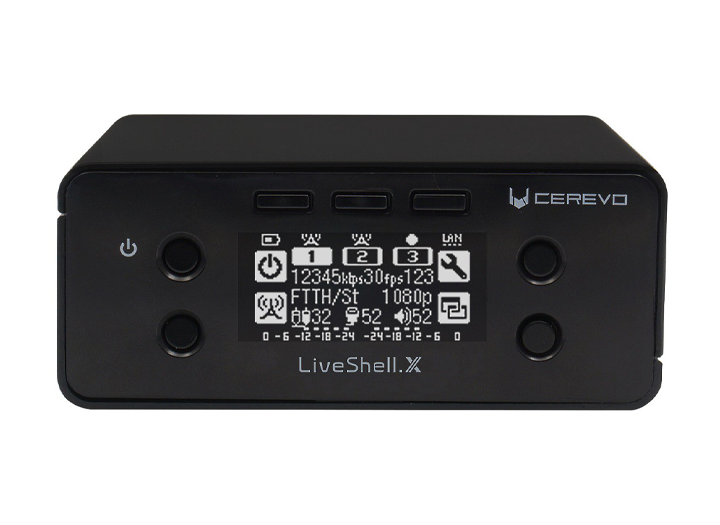

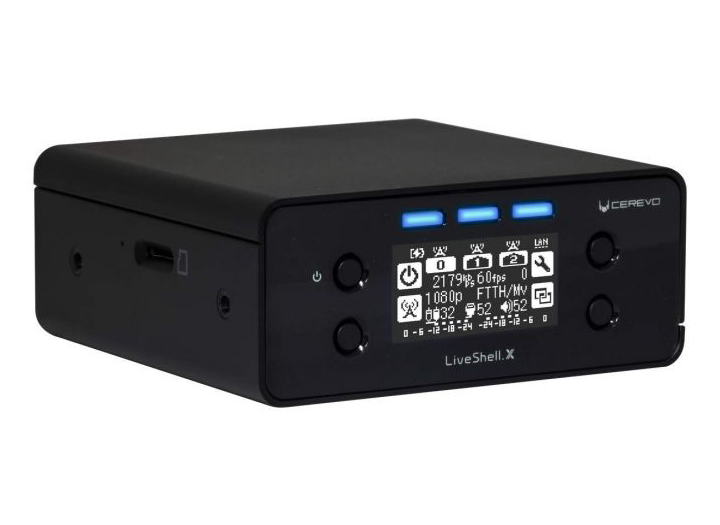

ETC LiveShell X Main Features
| 기 능 | PC-less live streaming and recording at up to 1080/60p |
|---|---|
| 기 능 | H.265/H.264 live encoding at up to 1080/60p |
| 기 능 | Up to 3 simultaneous streams |
| 기 능 | Realtime recording during live streaming (H.264/H.265) |
| 기 능 | High capacity 6 hour battery |
목록으로
- PREVIOUS4K Professional PTZ Camera
- NEXTVariCam HS Specifications
본문
Detail view
SPECIFICATIONS
| Max. Resolution | 1080/60p (one stream or one recording) |
| Video Encoding | H.265/H.264 |
| Audio Encoding | AAC-LC |
| Video Bit Rate | 100kbps to 20Mbps |
| Audio Bit Rate | 255Kbps (Max.) |
| Simultaneous Streaming | Max. 3 streams (+1 preview) |
| Recording Media | microSD (SDXC supported) |
| Recording Resolution | 1080/60p (max.) (one recording) |
| Lower Thirds | Supported |
| Transparent Lower Thirds | Supported |
| Internet Connection | Ethernet (10BASE-T/100BASE-TX)
Wi-Fi (IEEE 802.11a/b/g/n/ac) 3G / 4G (Separate 3G / 4G USB modem is required) *Please refer to the official support page for the list of supported USB modems. |
| Video Input | HDMI |
| Input resolution | HDMI (1080p/60(59.94), 1080p/50, 1080p/30(29.97), 1080p/25, 1080p/24(23.976), 1080i/60(59.94), 1080i/50, 720p/60(59.94), 720p/50, 720p/30(29.97), 720p/25, 720p/24(23.976), 576p, 576i, 480p, 480i, VGA)*1 |
| Audio Input | HDMI-IN/Stereo Line-in |
| Protocol Support | RTMP client/RTSP server mode |
| Power Supply | AC adapter or battery (included) |
| Battery Operating Time | Max. 6 hours battery life |
| Battery Replaceable/ Rechargeable | Replaceable/Rechargeable |
| Included accessories | ・Wireless LAN adapter
・AC Adapter *With interchangeable plugs – Type A (Japan/USA), Type C (EU), Type G (UK) ・Setup cable (3.5 mm stereo) ・Quick setup guide |
| Size | W:102mm × D:100mm × H:42mm (External drawing) |
| Weight | Approx. 380g (without batteries), approx. 480g (with batteries) |
*1 HDCP is not supported.
