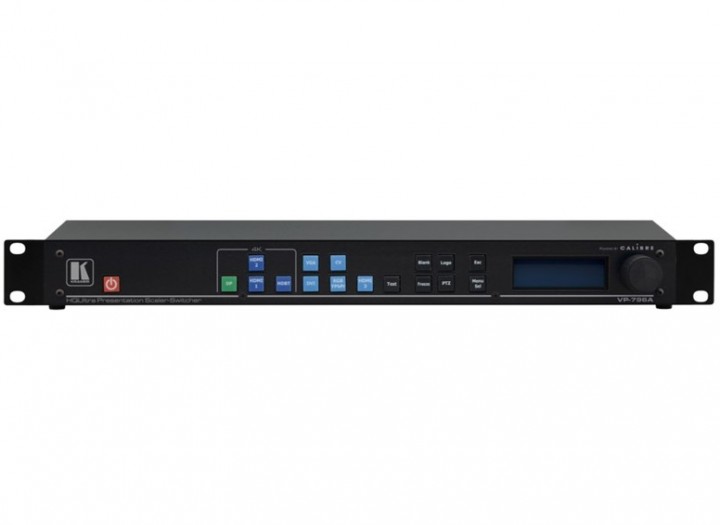

| Model | VP-796A |
|---|---|
| 제조사 | 크라머(Kramer) |
| 주요사양 | HQUltraFast 스위칭 — 스위칭 시간 약 0.25초 |
| 주요사양 | HQ Ultra 스케일링 — Low–latency, 4K UHD 지원 |
| 주요사양 | 해상도 — 최대 4K@60Hz (4 2 0) UHD |
| 주요사양 | 간편한 조작 — 전편패널 조그휠 및 LCD 창을 통한 설정 |
| 주요사양 | HDCP 호환 |
목록으로
본문
비디오입력

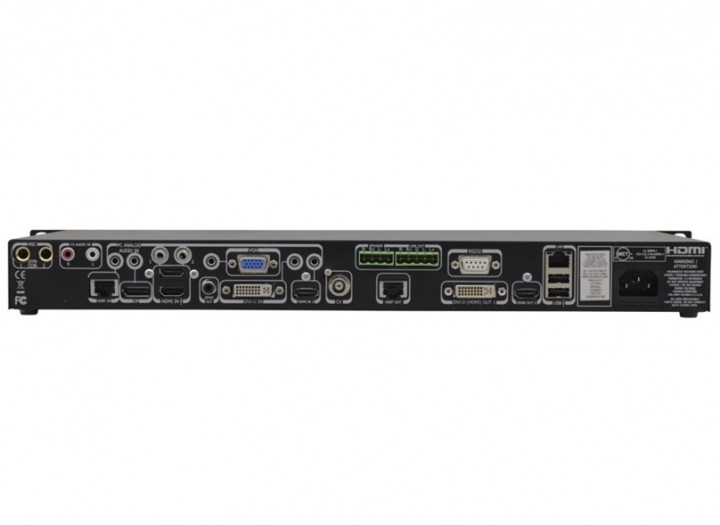

1 HDBT on an RJ–45 connector, 1 DisplayPort connector, 2 HDMI (4K UHD) connectors, 1 HDMI (HD) connector, 1 DVI–U (DVI/HDMI & VGA/RGBS/YPbPr), 1 VGA on a 15–pin HD connector, 1 CV on an RCA connector
오디오입력
2 microphones on 6mm mini jacks, 1 CV stereo on RCA connectors (R, L), 7 unbalanced stereo on 3.5mm jacks
비디오출력
1 HDBT on an RJ–45 connector, 1 HDMI connector, 1 DVI/HDMI on a DVI–I connector, 1 S/PDIF on an RCA connector
오디오출력
Speaker on a 4–pin terminal block, line out on a 5–pin terminal block, S/PDIF on an RCA connector
포트
1 RS–232 on a 9–pin D–sub connector, 1 LAN on an RJ–45 connector, 2 USB–A connectors
컴포넌트 비디오입력 포맷
484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i @50, 59.94 and 60Hz and 1080p @23.98, 24, 25, 29.97 and 30Hz
HDMI/DVI 싱글 포맷
- SD: 625i (576i) and 525i (480i) in double–rate formats
- ED: 480p, 576p
- HD: 1280x720p, 1920x1080i, 1920x1080psf
- 1920x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz
2048x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz. The 4k capable HDMI 1 and HDMI 2 inputs also support: 3840x2160p & 4096x2160p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz (50, 59.94 & 60Hz supported in YUV 4:2:0 color space format)
출력해상도
640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1400x1050, 1600x1200, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024x1080, 2560x1080, 2560x1440, 2560x1600, 3860x2160, 4096x2160
FRAME RATE
60Hz, 59.94Hz, 50Hz, 48Hz, 25Hz, 24Hz, 23.97Hz, auto
동작온도
0° to +40°C (32° to 104°F)
보관온도
–40° to +70°C (–40° to 158°F)
습도
10% to 90%, RHL non–condensing
전원공급원
100–264V AC, 50/60Hz
준수표준
- CE: 2004/108/EC Electromagnetic Compatibility Directive, and 2006/95/EC Low Voltage Directive. Compliance is to EN55022 Class A
부속품
Power cord, Rack “ears”
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT
2.7kg (6.0lbs) approx.
SHIPPING WEIGHT
- 3.8kg (8.3lbs) approx.
