ETC Presentation Swicher / Scaler
| Model | VP-440 |
|---|---|
| 제조사 | 크라머(Kramer) |
| 주요사양 | 최대 VGA 해상도 — 1920 x 1200 @60Hz. |
| 주요사양 | 출력해상도 — Up to UXGA/1080p output resolutions. |
| 주요사양 | 다양한 화면비 — Full, best fit, overscan, underscan, letter box and panscan. |
| 주요사양 | PixPerfect ™ 스케일링 기술 — 고품질의 업/다운 스케일링 |
| 주요사양 | Auto Input Switching — Last connected & auto–scan, selectable |
목록으로
본문

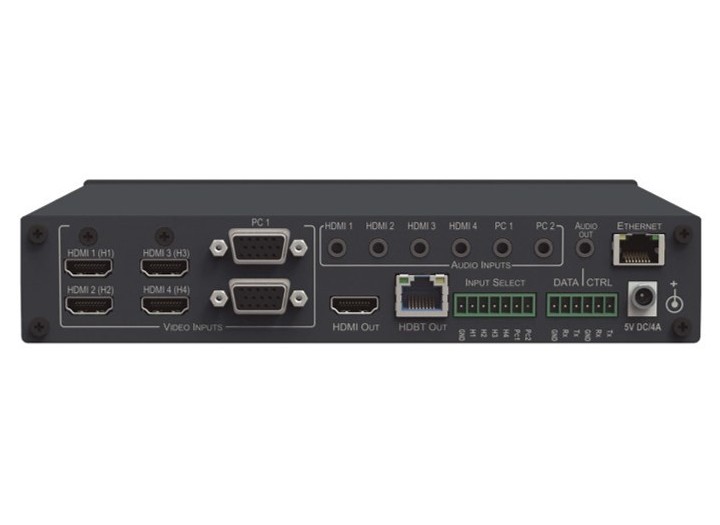

입력
- 4 HDMI connectors (HDMI, HDCP version 1.4)
- 2 VGA on a 15–pin HD connector
- 6 unbalanced stereo audio on 3.5mm mini jack connectors
1 mic on a 6.3mm jack connector (with selectable 48V phantom power)
출려기
- 1 HDMI connector (HDMI, HDCP version 1.4)
- 1 HDBT on a RJ–45 connector
1 unbalanced stereo audio on a 3.5mm mini jack connector
대역폭
최대 1080p, UXGA
스위칭 시간
2~3초
비디오 대기시간
2 프레임 이하
INPUT RESOLUTIONS PC 1/2
640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 640x480@85Hz, 800x600@56Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 800x600@85Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x720@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1280x800@60Hz, 1440x900@60Hz,1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050RB@60Hz,
INPUT RESOLUTIONS HDMI
480i, 480p, 576i, 576p, 720p@50Hz, 720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz, 640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 640x480@85Hz, 800x600@56Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 800x600@85Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x720@60Hz, 1920x1080@60Hz, 1280x960@60Hz, 1600x1200@60Hz, 1280x800@60Hz, 1440x900@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050RB@60Hz, 1920x1200RB@60Hz
출력 해상도
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1440x900@60Hz, 1280x1024@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1200RB@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50Hz, 1280x720p@60Hz, 1920x1080i@50Hz, 1920x1080i@60Hz, 1920x1080p@50Hz, 1920x1080p@60Hz
컨트롤
- HDMI 1 to HDMI 4 and PC 1 to PC 2 input selector buttons
- Input select contact closure
- Menu and navigation buttons
- Reset to XGA/720p and panel lock buttons
- RS–232 (control and data)
Ethernet (OSD and Web pages)
전원공급원
5V DC, 3A
동작온도
0° to +40°C (32° to 104°F)
보관온도
–40° to +70°C (–40° to 158°F)
습도
10% to 90%, RHL non–condensing
부속품
파워서플라이
PRODUCT DIMENSION
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.1kg (2.4lbs) approx.
SHIPPING DIMENSION
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT
- 1.5kg (3.4lbs) approx.
