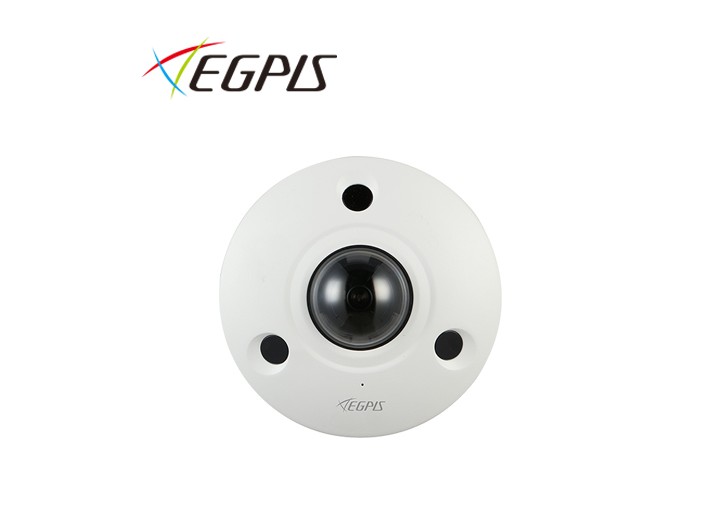

    이지피스 ENF-12842R

    주요사양 네트워크 12M 파노라마 어안(fisheye)렌즈 카메라
    주요사양 대기열/피플카운팅/히트 맵 등 관리 기능 지원
    주요사양 IP67 생활 방수지원
    주요사양 POE 기능 지원
    주요사양 알람/오디오 단자 지원(마이크 내장)

    목록으로

    본문

    Detail view
    제품 사양
    Camera
    Image Sensor1/1.7” CMOS
    Effective Pixels4000 (H) × 3000 (V)
    ROM4 GB
    RAM4 GB
    IR LEDs3 (IR LEDs)
    Electronic Shutter Speed1/3 s-1/100000 s (Auto/Manual)
    Min. Illumination0.001 Lux/F2.0 (Colour, 1/3 s, 30 IRE)
    0.01 Lux/F2.0 (Colour, 1/30 s, 30 IRE)
    0 Lux/F2.0 (IR on)
    IR Distance10 m (32.8 ft)
    ScanProgressive
    Noise Reduction3D DNR
    WDRDWDR
    S/N Ratio49.7dB
    Gain controlManual
    White BalanceAuto / Natural / street lamp / outdoor / manual / regional Custom
    Lens
    Focal Length1.85 mm
    Mount TypeM12
    Max. ApertureF2.0
    Aperture TypeFixed aperture
    Lens TypeFixed focal
    Field of ViewHorizontal: 185°; Vertical: 180°
    DORI DistanceDetectObserveRecognizeIdentify
    40.0m (131.3ft)16.0m (52.6ft)8.0m (26.3ft)4.0m (13.1ft)
    Audio
    Audio Input1 channel (RCA port),1 build in MIC
    Audio Output1 channel (RCA port)
    Audio EncodingG.711A, G.711Mu, G726, AAC
    Video
    Video EncodingH.265, H.264, H.264H, H.264B, MJPEG
    Video Bit RateH264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps
    Video Frame Rate50HzMain Stream (4000×3000@25fps)
    Sub Stream (704×576@25fps)
    Third Stream (704×576@25fps)
    60Hz
    		Main Stream (4000×3000@30fps)
    Sub Stream (704×480@30fps)
    Third Stream (704×480@30fps)
    Fisheye
    		1O (4000x3000), 1P (4096x1024),2P (2432x2432), 1R (1216x1216),
    2R (2432x2432), 4R (2432x2432), 1O + 3R (2432x2432)
    Resolution4000×3000, 2880×2880, 2880×2160, 2048×1536(3M), 1280×960(1.3M),
    (704×576/704×480) D1, (352×288/352×240) CIF
    Bit Rate ControlCBR/VBR
    Region of InterestYes (4 areas)
    Smart IRYes (Adjust by user)
    LanguageEnglish, Italian, Spanish, Russian, French, German, Portuguese,
    Polish, Korean, Persian, Czech, Dutch, Arabic, European Spanish
    Alarm
    Alarm Input2 channels (Wet contact, and it supports max potential 3V-5V)
    Alarm Output2 channels (Dry contact, and it supports max potential 30V)
    Function
    SD CardYes
    StorageFTP, Micro SD card (256 G)
    Max User20 (Total bandwidth: 240 M)
    BrowserIE: IE11, IE10, IE9
    Google of high version: 48.0.2564.116
    Firefox of high version: 48.0.2
    Non-plug edge: 42.17134.1.0
    Privacy Masking4 areas
    Smart event
    IVS AnalyzeIntrusion, tripwire
    Heat MapYes
    Professional, intelligent
    People CountingPeople counting in 4 areas, number of people threshold alarm, 4 queue management,
    stranding alarm, number of people alarm, number of people heat map,
    average stranding heat map, track map and export (Report max range is 1 week.)
    Network and port
    Network ProtocolHTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP,
    DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP
    InteroperabilityONVIF (Profile S/Profile G), GB/T28181, CGI
    General
    Power Supply12V DC /POE
    Power ConsumptionBasic power consumption: 6.2W (12V DC), 9.2W (POE)
    Max power consumption(ICR switch, and IR full intensity): 9.2W (12V DC), 12.9W (POE)
    Operating Temperature-30°C to +45°C (-22°F to +113°F)
    Operating Humidity≤95%
    StrorageTemperature-30°C to +70°C (-22°F to +158°F)
    Strorage Humidity≤95%
    Protection GradeIP67, IK10
    EnclosureMetal + Plastic
    Dimensions59.8 mm × Φ149.8 mm (2.35'' × Φ5.9'')
    Net Weight0.77 kg(1.70 lb)
    Gross Weight1.16 kg(2.56 lb)
    CertificationCE-LVD:EN60950-1
    EN 55032: 2015, Class B
    EN 61000-3-2: 2014
    EN 61000-3-3: 2013
    EN 55024: 2010+A1: 2015
    EN 55035: 2017
    EN 50130-4: 2011+A1: 2014
    CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU
    FCC:47 CFR FCC Part15, Subpart B, Class B
    UL/CUL:UL60950-1 CAN/CSA C22.2 No.60950-1-07
