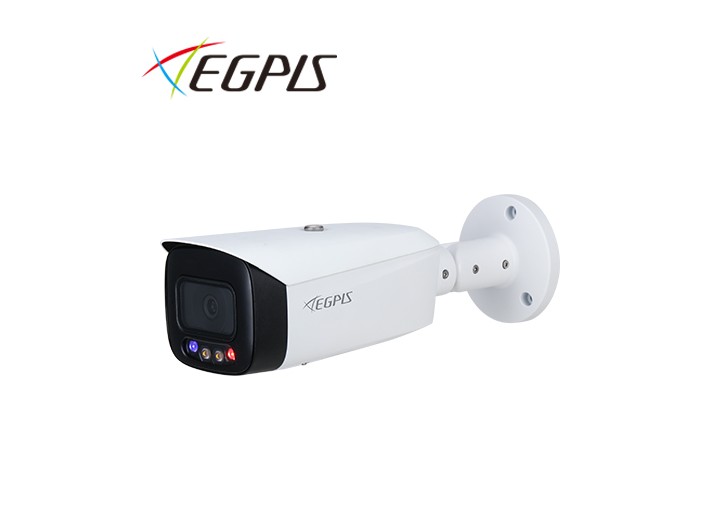

    이지피스 ENO-2349R-PV

    주요사양 네트워크 2MP WizSense 시리즈 적외선 카메라
    주요사양 Full-Color 지원 / 알람&경광등 지원
    주요사양 움직임 감지 / 침입자 감지 이벤트 연동 가능
    주요사양 3.6mm 고정 초점 렌즈
    주요사양 Light LED 2EA & 야간 가시 거리 최대 40m
    주요사양 H.265 압축 방식
    주요사양 IP67 생활 방수 지원

    목록으로

    본문

    Detail view
    제품 사양
    Camera
    Image Sensor1/2.8” 2Megapixel progressive CMOS
    Max. Resolution1920 (H) × 1080 (V)
    ROM128 MB
    RAM512 MB
    Scanning SystemProgressive
    Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
    Min. Illumination0.0015 Lux @F1.0
    S/N Ratio> 56 dB
    Illumination Distance40 m (131.2 ft)
    Illuminator On/Off ControlAuto / Manual
    Illuminator Number2 (Warm light)
    Pan/Tilt/Rotation RangePan: 0°–360° / Tilt: 0°–90° / Rotation: 0°–360°
    Lens
    Lens TypeFixed-focal
    Mount TypeM12
    Focal Length3.6 mm
    Max. ApertureF1.0
    Field of ViewHorizontal 84° × Vertical 44° × Diagonal 99°
    Iris TypeFixed
    Close Focus Distance1.5 m (4.9 ft)
    DORI DistanceLensDetectObserveRecognizeIdentify
    55.2m (181.1 ft)22.1m (72.5 ft)11.0m (36.1 ft)5.5m (18.0 ft)
    Professional, intelligent
    IVS (Perimeter Protection)Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
    Intelligent SearchWork together with Smart NVR to perform refine intelligent search,
    event extraction and merging to event videos.
    Video
    Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
    Smart CodecSmart H.265+/Smart H.264+
    Video Frame RateMain stream1920×1080 @1-25/30 fps
    Sub stream704×576 @1-25 fps/704×480 @ 1-30 fps
    Third stream1920×1080 @1-25/30 fps
    Stream Capability3 streams
    Resolution1080p(1920×1080); 1.3M(1280×960); 720p(1280×720);
    D1(704×576/704×480); VGA (640×480); CIF(354×288/354×240)
    Bit Rate ControlCBR / VBR
    Video Bit RateH.264: 32 kbps–8192 kbps
    H.265: 12 kbps–8192 kbps
    Day/NightColor/B/W
    BLCYes
    HLCYes
    WDR120 dB
    Scene Self-adaptation (SSA)Yes
    White BalanceAuto / natural / street lamp / outdoor / manual / regional custom
    Gain ControlAuto / Manual
    Noise Reduction3D DNR
    Motion DetectionOFF/ON (4 areas)
    Region of Interest (RoI)Yes (4 areas)
    Smart IlluminationYes
    Image Rotation0°/90°/180°/270° (Support with 1080p resolution and lower)
    MirrorYes
    Privacy Masking4 areas
    Audio
    Built-in MICYes
    Audio CompressionPCM; G.711a; G.711Mu; G.726; G.723
    Alarm
    Alarm EventNo SD card. disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
    Network
    NetworkRJ-45 (10/100 Base-T)
    SDK and APIYes
    ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
    Cyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
    InteroperabilityONVIF(Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
    User/Host20 (Total bandwidth: 80 M)
    StorageFTP; SFTP; Micro SD card (support max. 256 G) NAS
    BrowserIE: IE8 and later, Chrome, Firefox, Safari: Safari 12 and later
    Management SoftwareSmart PSS; DSS; DMSS
    Mobile PhoneIOS; Android
    Certification
    CertificationCE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive
    2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    Port
    Audio Input1 channel (RCA port)
    Audio Output1 channel (RCA port)
    Alarm Input1 channel in: 5mA 3V–5V DC
    Alarm Output1 channel out: 300mA 12V DC
    Power
    Power Supply12V DC/PoE (802.3af)
    Power ConsumptionBasic power consumption: 1.8W (12V DC); 2.4W (PoE) Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flashing alternately): 7.2W (12V DC); 8.5W (PoE)
    Environment
    Operating Conditions–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
    Strorage Conditions–40°C to +60°C (–40°F to +140°F)
    Strorage ConditionsIP67
    Structure
    CasingMetal + plastic
    Dimensions288.4mm × 94.4mm × 84.7mm (11.4"×3.7"×3.3") (L×W×H)
    Net Weight1.0 kg (2.2 lb)
    Gross Weight1.23 kg (2.7 lb)
