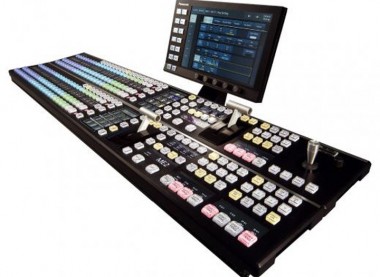

2ME Live Production Swit… H인기글
Mainframe AV-HS60U2P/E-Power supplyAC100 V to 240 V, 50 Hz/60 Hz(AV-HS60U2 supports redundant power supply)Power consumption110 WAmbient Operating Temperature0°C to 40°C (32°F to 104°F)Operating Ambient Humidity10% to 90% (no condensation)Storage Temperature0°C to 40°C (32°F to 104°F)Storage Humidity10% to 90% (no condensation)Weight482 mmx132 mmx418 mm(18-31/32 inchesx5-3/16 inchesx16-15/32 inches)(excluding protrusions)Video Terminal-SDI IN 1 to SDI IN 32 TerminalsDuring Standard mode32 lines• Connectors: BNCx32• SDI IN 27, SDI IN 28, SDI IN 31, SDI IN 32 terminals are equipped with up-converters.• SDI IN 25 to SDI IN 32 terminals are equipped with color correctors.HD-SDISMPTE292M (BTA S-004) standard compliant• 0.8 V [p-p]±10% (75 ohm)• Automatic equalizer 100 m (328 ft)(when 1.5 Gbps/5C-FB cable is used)SD-SDISMPTE259M standard compliant• 0.8 V [p-p]±10% (75 ohm)• Automatic equalizer 200 m (656 ft)(when 5C-2V cable is used)During 3G mode16 lines• Connector: BNCx16 (only the odd numbered terminals can be used)・The even numbered terminals [SDI IN 2],[SDI IN 4] ... [SDI IN 32] cannot be used.・[SDI IN 25], [SDI IN 27], [SDI IN 29], and [SDI IN 31] terminals are equipped with color correctors.During 4K mode4K signal x 8 lines• Connector: BNC x 32 (3G-SDI x 4 SQD/2SI)• Can use the 4K signal in SQD format and 2SI format3G-SDI3G serial digital, SMPTE424M standard compliant• 0.8 V[p-p] ±10% (75 ohm)• Automatic equalizer 100 m (328 ft) (when 3 Gbps/5C-FB cable is used)• 3G?SDI Level B3G-SDI Level A (FS ON)DVI-D IN 1 to DVI-D IN 2 Terminals2 linesDigital RGB:XGA (1024x768), WXGA (1280x768), SXGA (1280x1024), WSXGA+ (1680x1050),UXGA (1600x1200), WUXGA (1920x1200)Vertical frequency: 60 HzVideo format inputs: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p• Connectors: DVI-Dx2• The terminals do not support HDCP.• The DVI-I connector cable cannot be used.• For the DVI-D connector cable, use a cable with a length of up to 5 m.(16.4 ft)• [DVI-D IN1]/[DVI-D IN2] terminals cannot be used during 3G mode and 4K mode.SDI OUT 1 to SDI OUT 16 TerminalsDuring Standard mode16 lines (2 distributed outputs per line)• Connectors: BNCx32• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW,ME2CLN, ME2KEYPVW, DSKPGM1, DSKPGM2, DSKPVW1,DSKPVW2, DSK1CLN, DSK2CLN, DSK3CLN, DSK4CLN, SELKEYPVW, MV1 to MV4, and AUX1 to AUX16 can be assigned.HD-SDI SMPTE292M (BTA S-004) standard compliant• Output level: 0.8 V [p-p]±10%SD-SDI SMPTE259M standard compliant• Output level: 0.8 V [p-p]±10%During 3G mode3G-SDI output: 8 lines (2 distribute outputs per line)HD-SDI output: 2 lines (2 distribute outputs per line)• Connector3G-SDI: BNCx16 (odd numbered terminals only)HD-SDI: BNCx4 ( and terminals only)• 3G?SDI signal is not output from the even numbered terminals.- No signal is output from the [SDI OUT 13] and [SDI OUT 15] terminals.- The HD-SDI signal converted to the 1080i format is output from the and terminals. This signal is converted to the 1080i format by decimating the 1080p signal from the and terminals.• [SDI OUT 13] and [SDI OUT 15] terminals are equipped with color correctors. The same color corrector setting is also applied to [SDI OUT 14] and [SDI OUT 16] terminals.• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLN, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, SEL KEYPVW, MV1 to MV2, and AUX1 to AUX8 can be assigned.During 4K mode4K signal output: 3 lines (two distribute outputs per line)2K signal output: 2 lines (two distribute outputs per line)• Connector3G-SDI (for 4K signal): BNC x 24 (terminal number 1 to 12)3G-SDI (for 2K signal): BNC x 4 (terminal number 13 and 15)HD-SDI (for 2K signal): BNC x 4 (terminal number 14 and 16)• The 4K signal is output in SQD format.• The HD-SDI signal converted to the 1080i format is output from the [SDI OUT 14] and [SDI OUT 16] terminals. This signal is converted to the 1080i format by decimating the 1080p signal output from the [SDI OUT 13] and [SDI OUT 15] terminals.• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLN, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, SEL KEYPVW, MV1 to MV2, and AUX1 to AUX8 can be assigned.3G-SDI3G serial digital, SMPTE424M standard compliant• Output level: 0.8 V [p-p] ±10%• 3G-SDI Level B MappingSignal FormatsSD480/59.94i, 576/50iHD1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF, 1080/25PsF, 1080/29.97PsF, 3G1080/59.94p, 1080/50p 4K2160/59.94p, 2160/50p(SQD)Signal ProcessingY:PB:PR 4:2:2 10 bitR:G:B 4:4:4 8 bitME Number2 MESynchronous Terminal-REF Terminal• Connectors: BNC• Same field frequencies as those of the system formats supported In Genlock mode: Black burst or Tri-level Sync input signals (with loop-through)• If the loop-through output is not used, provide a 75 ohm termination. • In the 1080/24PsF and 1080/23.98PsF formats, only Genlock mode supported• In the 1080/23.98PsF format, black burst signals with 10 Field ID (SMPTE318M standard compliant) or Tri-level Sync signals supported• In the 1080/24PsF format, Tri-level Sync signals supportedIn internal sync mode: Black burst output signal x 2LTC IN TerminalThis is the LTC (linear time code) input terminal.• Connectors: BNC• Impedance: 1 kohm• Level: 1 to 2 V [p-p]Video Delay TimeDuring Standard mode1 line (H)When the frame synchronizer is set to"Off" and the up-converter is set to"Off"2 field (V)When the frame synchronizer is set to "On", or the up-converter is set to "On"• When the signals have passed through PinP, DVE, MultiView, down-converter, or DVI-IN, a maximum delay of 1 frame is applied in each case.During 3G mode2 line (H)When the frame synchronizer is set to [Off]2 frame (V)When the frame synchronizer is set to [On]• Maximum of 2 frame delay is added to each when passed through PinP, DVE, or MultiView.Control Terminal-LAN TerminalCompatible with 100Base-TX and AUTO-MDIX (For IP control)• Connection cable: LAN cable (CAT5E), max. 100 m (328 ft), STP (Shielded Twisted Pair) cable recommended• Connector: RJ-45Panle TerminalCompatible with 100Base-TX and AUTO-MDIX(For Control Panel AV-HS60C2/AV-HS60C4 connection)• Connection cable (supplied with AV-HS60C2/AV-HS60C4): LAN cable (CAT5E), straight cable, STP (Shielded Twisted Pair), 10 m (32.8 ft)• Connector: RJ-45COM1(M)/COM2(M)/COM3(M) TerminalsRS-422 Control TerminalFor master connection for controlling external devices• Connector: D-sub 9-pin (female) x 3, inch screwCOM4 (M/S) TerminalRS-422 Control TerminalFor master/slave connection for controlling external devices• Connector: D-sub 9-pin (female), inch screw• Switchable between master connection and slave connection via menuGPI IN TerminalGPI IN: 18 inputs, general-purpose, photocoupler sensingALARM OUT: 1 output, open collector output (negative logic)• Connector: D-sub 25-pin (female), inch screwGPI OUT1/GPI OUT 2 terminalGPI OUT: 48 outputs, selected from general purpose, tallyOpen collector output• Connector: D-sub 25-pin (female) x 2, inch screwAccessories• AC cable AV?HS60U2P: 2 cablesAV?HS60U2E: 4 cables• Rack-mounted rear panel support bracket• Screws for the rack-mounted rear panel support bracket: 8 screws• Operating Guide for the AV-HS6000 series (Excerpted Version)Dimensions (W x H x D)*4482 mmx132 mmx418 mm(18-31/32 inchesx5-3/16 inchesx16-15/32 inches)(excluding protrusions)
자세히보기
