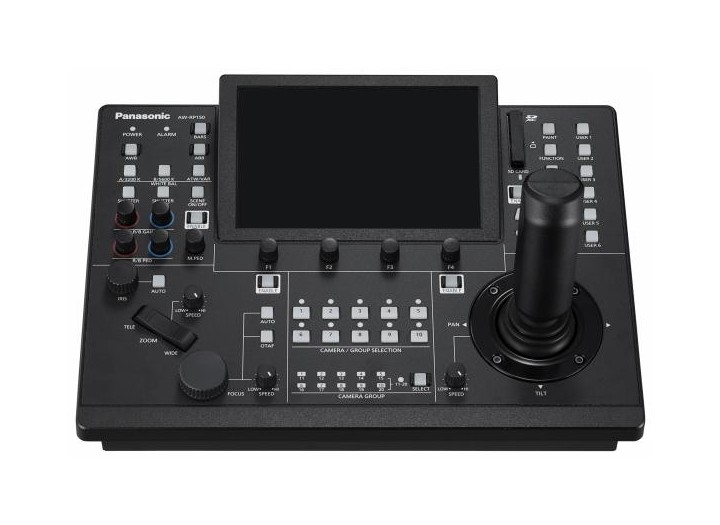

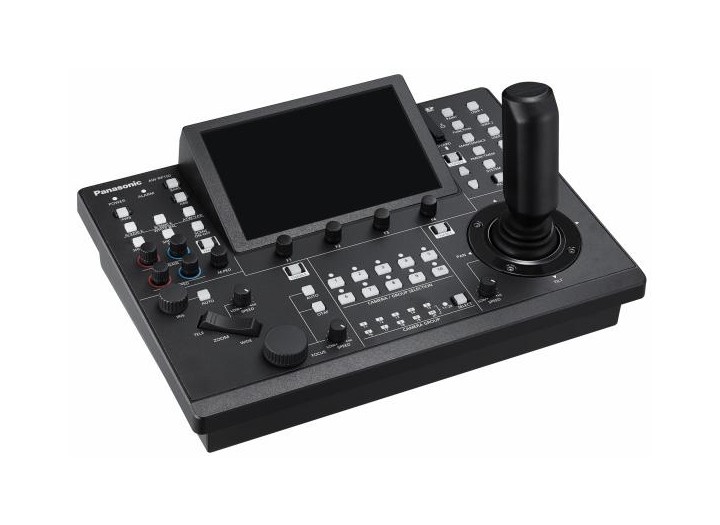

    PTZ CAMERA Remote Camera Controller

    Model AW-RP150
    제조사 파나소닉(Panasonic)
    주요사양 New joystick for one-handed operation
    주요사양 Simplified PTZ camera presets and tracing memory
    주요사양 Intuitive design elements based on direct feedback from everyday robotic camera operators
    주요사양 3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs
    주요사양 Large touchscreen for easy usability

    목록으로

    본문

    Detail view
    General-
    Power Requirements12 V DC (10.8 V to 13.2 V)
    PoE++IEEE802.3at standard: DC 42 V to 57 V (Camera Input)
    Current consumption1.0 A (Connector Input)
    0.6 A (PoE+ power supply)
    Ambient Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
    Ambient Operating Humidity20% to 90% (no condensation)
    Storage Temperature-20 °C to 50 °C (-4 °F to 122 °F)
    WeightApprox. 3.2 kg (7.05 lb)
    Dimensions (W x H x D) (mm)342 mm x 178 mm x 245 mm(excluding protrusions)
    Dimensions (W x H x D) (inch)13-15/32 inches x 7 inches x 9-21/32 inches(excluding protrusions)
    Controller Supported EquipmentIP/RS422
    AW-UE150W/K, AW-HR140*1, AW-HE130W/K*1, AW-HN130W/K*1, AW-UE70W/K*1, AW-UN70W/K*1, AW-HE40 Series*1, AW-HN40HW/HK*1, AW-HE38HW/HK*1, AW-HN38HW/HK*1

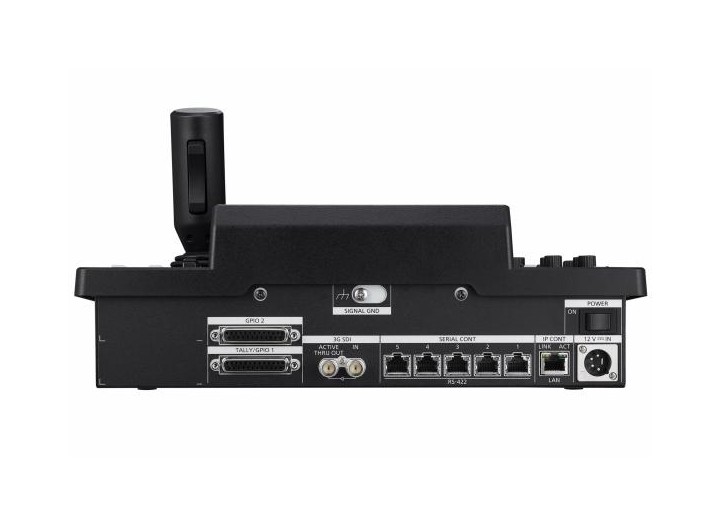

    Input/Output Connector-
    INPUTDC 12 V
    IN XLR 4-pin

    3G-SDI IN
    SMPTE292 / 75 Ω (BNC x 1)
    Supported formats:
    1080/59.94p*2, 1080/50p*2, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF
    OUTPUTACTIVE THRU OUT
    SMPTE292 / 75 Ω (BNC x 1)
    INPUT/OUTPUTIP CONT:
    ========
    100BASE-TX
    ----------
    PoE+ input
    ----------
    Connection cable: LAN cable, max. 100 m (328 ft)
    ・When connecting the unit via a switching hub:
    Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
    ・When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
    ================

    SERIAL CONT (RJ-45):
    ========
    RS-422 (control signals for remote cameras), TALLY OUT
    ----------
    Connecting cable:
    Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft)
    ----------
    TALLY OUT: Open collector output (negative logic)
    Maximum voltage resistance DC 24 V, Maximum current 50 mA
    ================

    TALLY/GPIO 1
    ========
    D-sub 25-pin, female, inch thread
    ----------
    TALLY IN : 10 inputs (for receiving photocoupler signals)
    ----------
    GPI : 6 inputs (for receiving photocoupler signals)
    GPIO : 5 inputs (for receiving photocoupler signals)
    or 5 outputs (open collector outputs, negative logic)
    ・Input/output switched with menu settings
    ================

    GPIO 2
    ========
    D-sub 25-pin, female, inch thread
    ----------
    GPI : 10 inputs (for receiving photocoupler signals)
    GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic)
    ・Input/output switched with menu settings
    Reserve connectors:
    2 connectors (For future expansion feature)
    LCD Display7-inch Touch Panel GUI Monitor (WVGA (800×480) )
    SD Memory Card slotSDHC / SDXC Memory Card Slot x 1
    Connection Specifications-
    No. of Connectable Cameras200 (IP), 5 (RS422)
    No. of Camera Selection Buttons10
    No. of Camera Groups20 (10 units per 1 group)
    Memory-
    Preset MemoryNo. of memory : presets 100
    Tracing MemoryNo. of cameras : Cam1 to Cam10
    Recording time, no. of memory settings : Maximum 5 min. total per camera, maximum of 10 settings per camera
    Other Functions-
    No. of User Assignable Buttons6 + up to 10 on the LCD menu
    Pan / Tilt Speed Adjustment7 levels
    Tally LED display colorgreen / red
