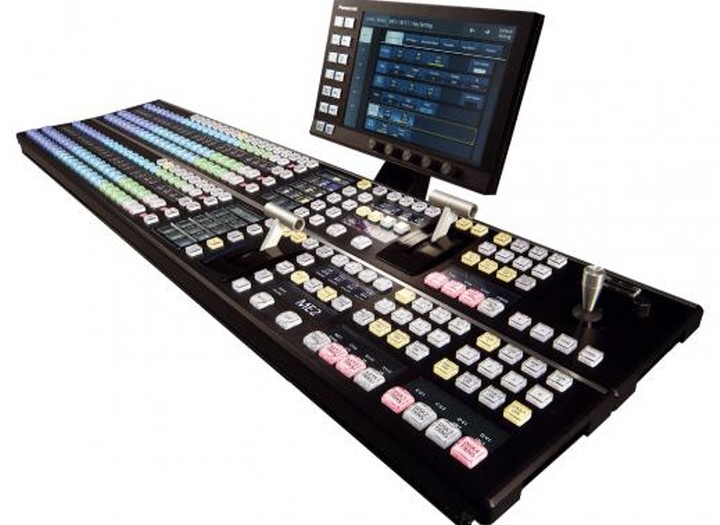

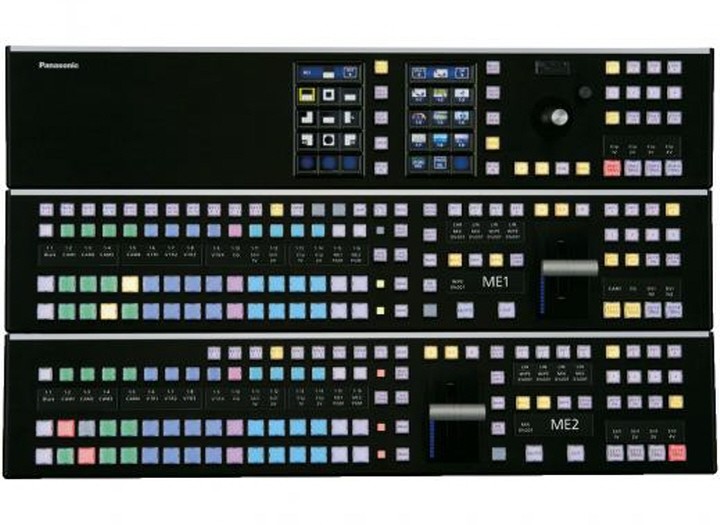

    SWITCHER 2ME Live Production Switcher

    Model AV-HS6000
    제조사 파나소닉(Panasonic)
    주요사양 Simultaneous output in both 1080p and 1080i formats
    주요사양 4 independent MultiViewer displays; Single MultiViewer can display a maximum of 16 video sources
    주요사양 Equipped with real-time high-quality chroma keying that employs Primatte® algorithms / Standard 1 channel, expandable up to 4 channels

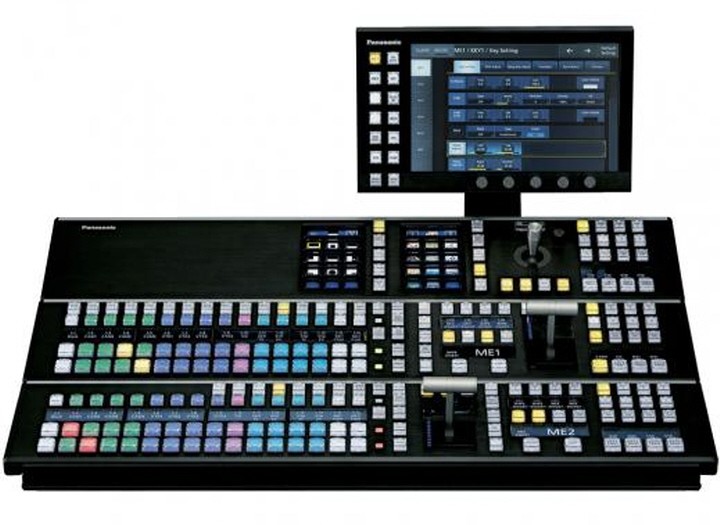

    주요사양 The switcher can be set by the 10,1-type touch-operated Menu Panel AV‑HS60C3G (optional) or by a PC monitor and USB mouse
    주요사양 34 inputs (SDI X32, DVI×2) and 16 SDI outputs; all inputs have built-in frame synchronizers

    목록으로

    본문

    Detail view

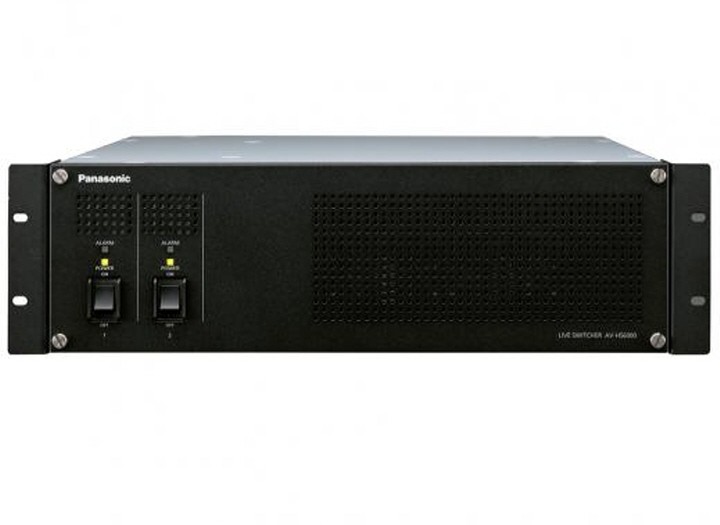

    Mainframe AV-HS60U2P/E-
    Power supplyAC100 V to 240 V, 50 Hz/60 Hz
    (AV-HS60U2 supports redundant power supply)
    Power consumption110 W
    Ambient Operating Temperature0°C to 40°C (32°F to 104°F)
    Operating Ambient Humidity10% to 90% (no condensation)
    Storage Temperature0°C to 40°C (32°F to 104°F)
    Storage Humidity10% to 90% (no condensation)
    Weight482 mmx132 mmx418 mm
    (18-31/32 inchesx5-3/16 inchesx16-15/32 inches)(excluding protrusions)

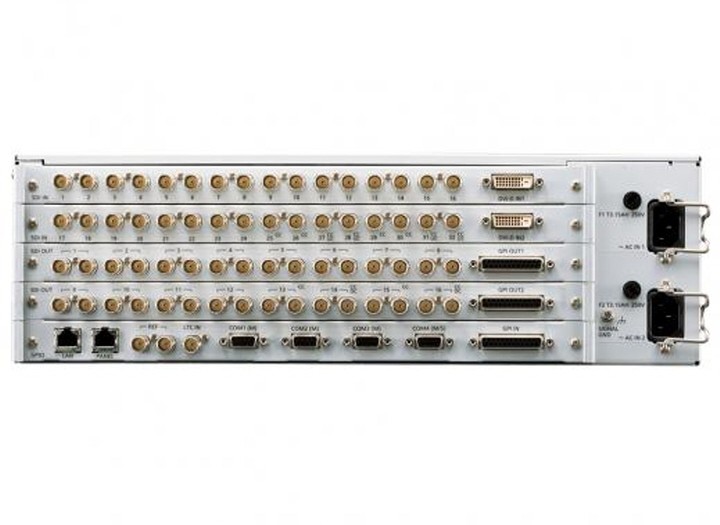

    Video Terminal-
    SDI IN 1 to SDI IN 32 TerminalsDuring Standard mode
    32 lines
    • Connectors: BNCx32
    • SDI IN 27, SDI IN 28, SDI IN 31, SDI IN 32 terminals are equipped with up-converters.
    • SDI IN 25 to SDI IN 32 terminals are equipped with color correctors.

    HD-SDI
    SMPTE292M (BTA S-004) standard compliant
    • 0.8 V [p-p]±10% (75 ohm)
    • Automatic equalizer 100 m (328 ft)
    (when 1.5 Gbps/5C-FB cable is used)
    SD-SDI
    SMPTE259M standard compliant
    • 0.8 V [p-p]±10% (75 ohm)
    • Automatic equalizer 200 m (656 ft)
    (when 5C-2V cable is used)

    During 3G mode
    16 lines
    • Connector: BNCx16 (only the odd numbered terminals can be used)
    ・The even numbered terminals [SDI IN 2],[SDI IN 4] ... [SDI IN 32] cannot be used.・[SDI IN 25], [SDI IN 27], [SDI IN 29], and [SDI IN 31] terminals are equipped with color correctors.
    During 4K mode
    4K signal x 8 lines
    • Connector: BNC x 32 (3G-SDI x 4 SQD/2SI)
    • Can use the 4K signal in SQD format and 2SI format

    3G-SDI
    3G serial digital, SMPTE424M standard compliant
    • 0.8 V[p-p] ±10% (75 ohm)
    • Automatic equalizer 100 m (328 ft) (when 3 Gbps/5C-FB cable is used)
    • 3G?SDI Level B
    3G-SDI Level A (FS ON)
    DVI-D IN 1 to DVI-D IN 2 Terminals2 lines
    Digital RGB:XGA (1024x768), WXGA (1280x768), SXGA (1280x1024), WSXGA+ (1680x1050),UXGA (1600x1200), WUXGA (1920x1200)
    Vertical frequency: 60 Hz
    Video format inputs: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
    • Connectors: DVI-Dx2
    • The terminals do not support HDCP.
    • The DVI-I connector cable cannot be used.
    • For the DVI-D connector cable, use a cable with a length of up to 5 m.(16.4 ft)
    • [DVI-D IN1]/[DVI-D IN2] terminals cannot be used during 3G mode and 4K mode.
    SDI OUT 1 to SDI OUT 16 TerminalsDuring Standard mode
    16 lines (2 distributed outputs per line)
    • Connectors: BNCx32
    • ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW,
    ME2CLN, ME2KEYPVW, DSKPGM1, DSKPGM2, DSKPVW1,
    DSKPVW2, DSK1CLN, DSK2CLN, DSK3CLN, DSK4CLN, SEL
    KEYPVW, MV1 to MV4, and AUX1 to AUX16 can be assigned.

    HD-SDI SMPTE292M (BTA S-004) standard compliant
    • Output level: 0.8 V [p-p]±10%

    SD-SDI SMPTE259M standard compliant
    • Output level: 0.8 V [p-p]±10%

    During 3G mode
    3G-SDI output: 8 lines (2 distribute outputs per line)
    HD-SDI output: 2 lines (2 distribute outputs per line)
    • Connector
    3G-SDI: BNCx16 (odd numbered terminals only)
    HD-SDI: BNCx4 ( and terminals only)
    • 3G?SDI signal is not output from the even numbered terminals.
    - No signal is output from the [SDI OUT 13] and [SDI OUT 15] terminals.
    - The HD-SDI signal converted to the 1080i format is output from the and terminals. This signal is converted to the 1080i format by decimating the 1080p signal from the and terminals.
    • [SDI OUT 13] and [SDI OUT 15] terminals are equipped with color correctors. The same color corrector setting is also applied to [SDI OUT 14] and [SDI OUT 16] terminals.• ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLN, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, SEL KEYPVW, MV1 to MV2, and AUX1 to AUX8 can be assigned.

    During 4K mode
    4K signal output: 3 lines (two distribute outputs per line)
    2K signal output: 2 lines (two distribute outputs per line)
    • Connector
    3G-SDI (for 4K signal): BNC x 24 (terminal number 1 to 12)
    3G-SDI (for 2K signal): BNC x 4 (terminal number 13 and 15)
    HD-SDI (for 2K signal): BNC x 4 (terminal number 14 and 16)
    • The 4K signal is output in SQD format.
    • The HD-SDI signal converted to the 1080i format is output from the [SDI OUT 14] and [SDI OUT 16] terminals. This signal is converted to the 1080i format by decimating the 1080p signal output from the [SDI OUT 13] and [SDI OUT 15] terminals.
    • ME1PGM, ME1PVW, ME1CLN, ME1KEYPVW, ME2PGM, ME2PVW, ME2CLN, DSKPGM1, DSKPGM2, DSKPVW1, DSKPVW2, DSK1CLN, DSK2CLN, SEL KEYPVW, MV1 to MV2, and AUX1 to AUX8 can be assigned.

    3G-SDI
    3G serial digital, SMPTE424M standard compliant
    • Output level: 0.8 V [p-p] ±10%
    • 3G-SDI Level B Mapping
    Signal FormatsSD
    480/59.94i, 576/50i
    HD
    1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 1080/24PsF, 1080/23.98PsF, 1080/25PsF, 1080/29.97PsF,
    3G
    1080/59.94p, 1080/50p
    4K
    2160/59.94p, 2160/50p(SQD)
    Signal ProcessingY:PB:PR 4:2:2 10 bit
    R:G:B 4:4:4 8 bit
    ME Number2 ME
    Synchronous Terminal-
    REF Terminal• Connectors: BNC
    • Same field frequencies as those of the system formats supported
    In Genlock mode: Black burst or Tri-level Sync input signals (with loop-through)
    • If the loop-through output is not used, provide a 75 ohm termination.
    • In the 1080/24PsF and 1080/23.98PsF formats, only Genlock mode supported
    • In the 1080/23.98PsF format, black burst signals with 10 Field ID
    (SMPTE318M standard compliant) or Tri-level Sync signals supported
    • In the 1080/24PsF format, Tri-level Sync signals supported
    In internal sync mode: Black burst output signal x 2
    LTC IN TerminalThis is the LTC (linear time code) input terminal.
    • Connectors: BNC
    • Impedance: 1 kohm
    • Level: 1 to 2 V [p-p]
    Video Delay TimeDuring Standard mode
    1 line (H)
    When the frame synchronizer is set to"Off" and the up-converter is set to"Off"
    2 field (V)
    When the frame synchronizer is set to "On", or the up-converter is set to "On"

    • When the signals have passed through PinP, DVE, MultiView, down-converter, or DVI-IN, a maximum delay of 1 frame is applied in each case.

    During 3G mode

    2 line (H)
    When the frame synchronizer is set to [Off]
    2 frame (V)
    When the frame synchronizer is set to [On]

    • Maximum of 2 frame delay is added to each when passed through PinP, DVE, or MultiView.
    Control Terminal-
    LAN TerminalCompatible with 100Base-TX and AUTO-MDIX (For IP control)
    • Connection cable: LAN cable (CAT5E), max. 100 m (328 ft),
    STP (Shielded Twisted Pair) cable recommended
    • Connector: RJ-45
    Panle TerminalCompatible with 100Base-TX and AUTO-MDIX
    (For Control Panel AV-HS60C2/AV-HS60C4 connection)
    • Connection cable (supplied with AV-HS60C2/AV-HS60C4): LAN cable
    (CAT5E), straight cable, STP (Shielded Twisted Pair), 10 m (32.8 ft)
    • Connector: RJ-45
    COM1(M)/COM2(M)/COM3(M) TerminalsRS-422 Control Terminal
    For master connection for controlling external devices
    • Connector: D-sub 9-pin (female) x 3, inch screw
    COM4 (M/S) TerminalRS-422 Control Terminal
    For master/slave connection for controlling external devices
    • Connector: D-sub 9-pin (female), inch screw
    • Switchable between master connection and slave connection via menu
    GPI IN TerminalGPI IN: 18 inputs, general-purpose, photocoupler sensing
    ALARM OUT: 1 output, open collector output (negative logic)
    • Connector: D-sub 25-pin (female), inch screw
    GPI OUT1/GPI OUT 2 terminalGPI OUT: 48 outputs, selected from general purpose, tally
    Open collector output
    • Connector: D-sub 25-pin (female) x 2, inch screw
    Accessories• AC cable AV?HS60U2P: 2 cables
    AV?HS60U2E: 4 cables
    • Rack-mounted rear panel support bracket
    • Screws for the rack-mounted rear panel support bracket: 8 screws
    • Operating Guide for the AV-HS6000 series (Excerpted Version)
    Dimensions (W x H x D)*4482 mmx132 mmx418 mm
    (18-31/32 inchesx5-3/16 inchesx16-15/32 inches)(excluding protrusions)
